4-Position Smart Screwdriver Bit Selector for PLC Assembly Error-Proofing
The HB Torque HB-AE04-P04 helps operators select the required screwdriver bit in manual and semi-automatic fastening stations. Four independent detection positions, LED pick guidance and 24V DC PNP digital signals support a PLC-controlled assembly sequence.
Important: This model is a screwdriver bit selector, not a socket selector. The maximum supported bit outside diameter is 8 mm. Please confirm your bit dimensions before ordering.
Key Features
- Four detection positions: Detects the presence and removal of screwdriver bits at four individual locations.
- LED-guided selection: Visual indicators help the operator identify the required bit position.
- PLC integration: Selection signals can be used by a separately programmed PLC to check the fastening sequence and implement interlocks.
- 24V DC PNP interface: Three digital inputs and three digital outputs, with weighted 1/2/4 binary signalling according to the configured interface.
- Workstation-ready form factor: Designed for mounting at an industrial assembly station.
Technical Specifications
| Model / SKU | HB-AE04-P04 |
|---|---|
| Product type | 4-position screwdriver bit selector |
| Detection positions | 4 independent optical detection positions |
| Maximum bit outside diameter | 8 mm |
| Power supply | 24V DC ±10% |
| Digital I/O | 3 inputs + 3 outputs |
| Signal type | PNP |
| Signal encoding | Weighted 1/2/4 binary; verify the position-to-code mapping during commissioning |
| Cable length | 3 m |
| Guidance | Red / green LED indicators |
| Housing | Anodized aluminum alloy |
How Bit Selection Works
- Ready: The station detects the bits in their designated positions.
- Guide: The external PLC requests the required bit position; the indicator guides the operator.
- Verify: Removing the selected bit produces feedback for the control sequence. An incorrectly selected bit can be rejected by the configured PLC logic.
- Return and reset: The operator returns the bit and completes the configured reset sequence before the next cycle.
Typical Applications
Suitable for assembly processes that require several screwdriver bits at one station, including automotive components, electrical equipment, appliances and precision mechanical assembly. The selector provides bit-position feedback; it does not independently measure tightening torque or store production records.
Integration and Commissioning
Mount the unit securely on a level workstation surface. Keep the detection positions clean and route the cable away from strain and interference. Before energizing the station, a qualified integrator should verify the bit fit, connector pinout, PNP compatibility, signal mapping and PLC logic. Test correct picks, incorrect picks, bit return and reset behavior.
Frequently Asked Questions
Is HB-AE04-P04 a socket selector?
No. It is intended for screwdriver bits with a maximum supported outside diameter of 8 mm. For socket selection, please ask about our dedicated socket selector solutions.
Can it connect directly to my PLC?
It provides a 24V DC PNP digital I/O interface. Electrical compatibility, connector wiring and the selection/interlock program must be checked for your PLC and workstation.
Does it measure torque or store production records?
Built-in torque measurement and standalone production-data storage are not specified. Torque control and traceability depend on the connected fastening and line-control systems.
What information is needed for a technical review or bulk quotation?
Send your bit dimensions, PLC model, required selection sequence, quantity and destination country to hbtorque@gmail.com or contact HB Torque on WhatsApp.

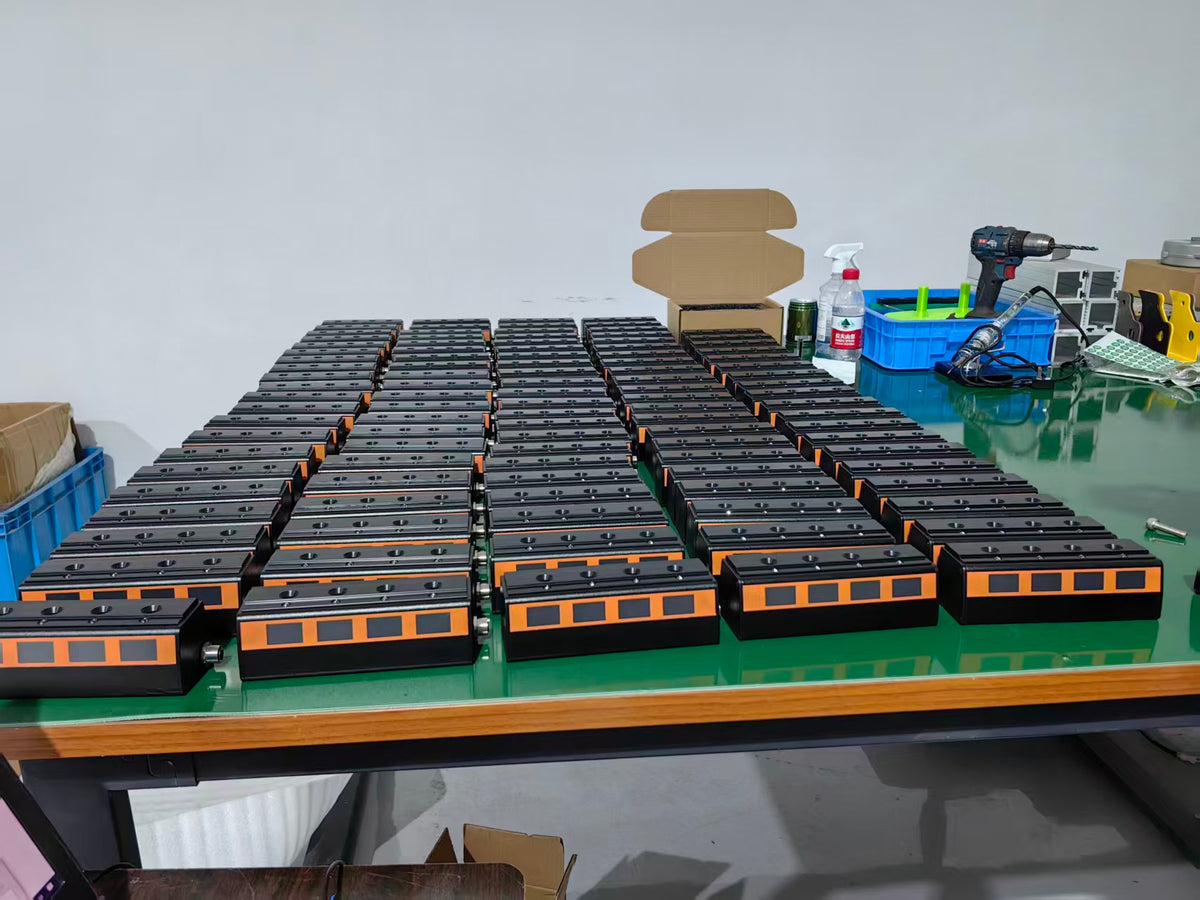

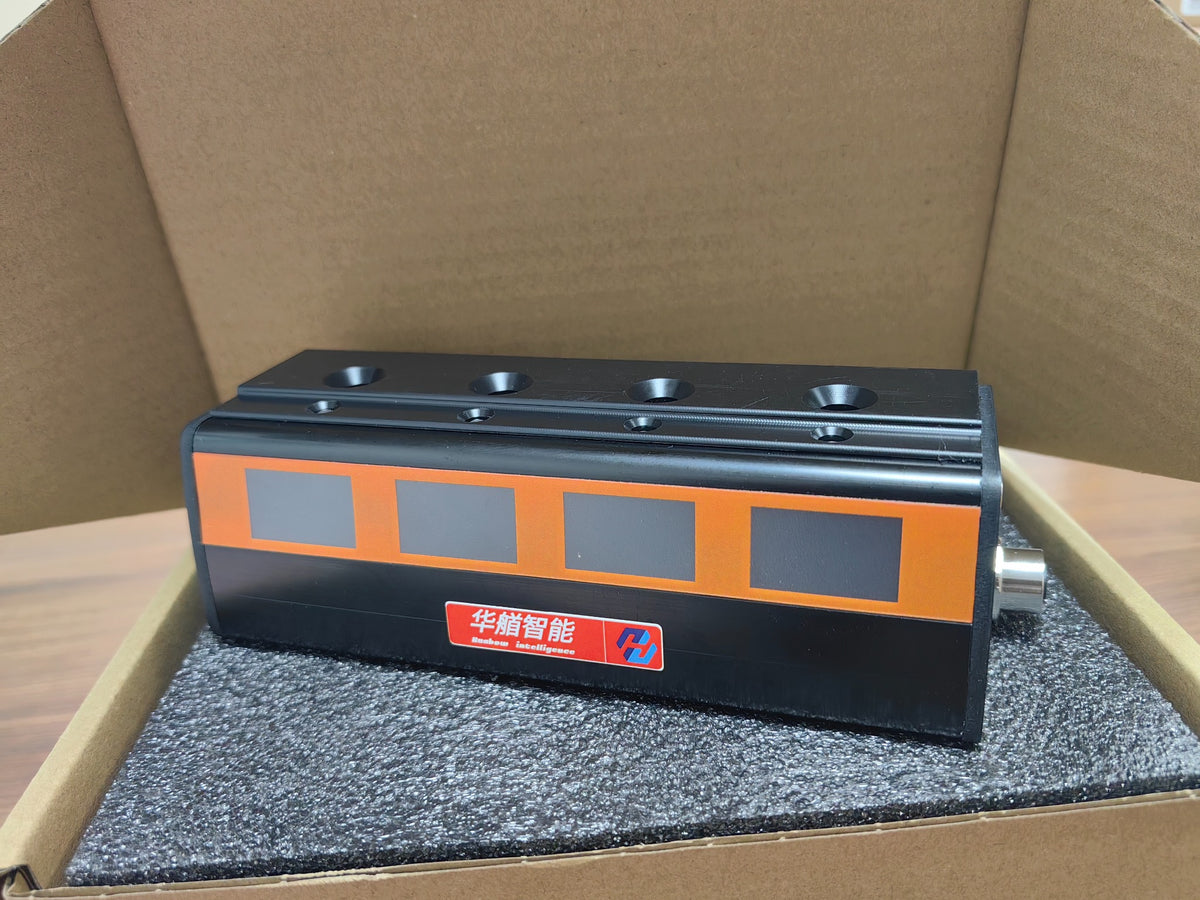

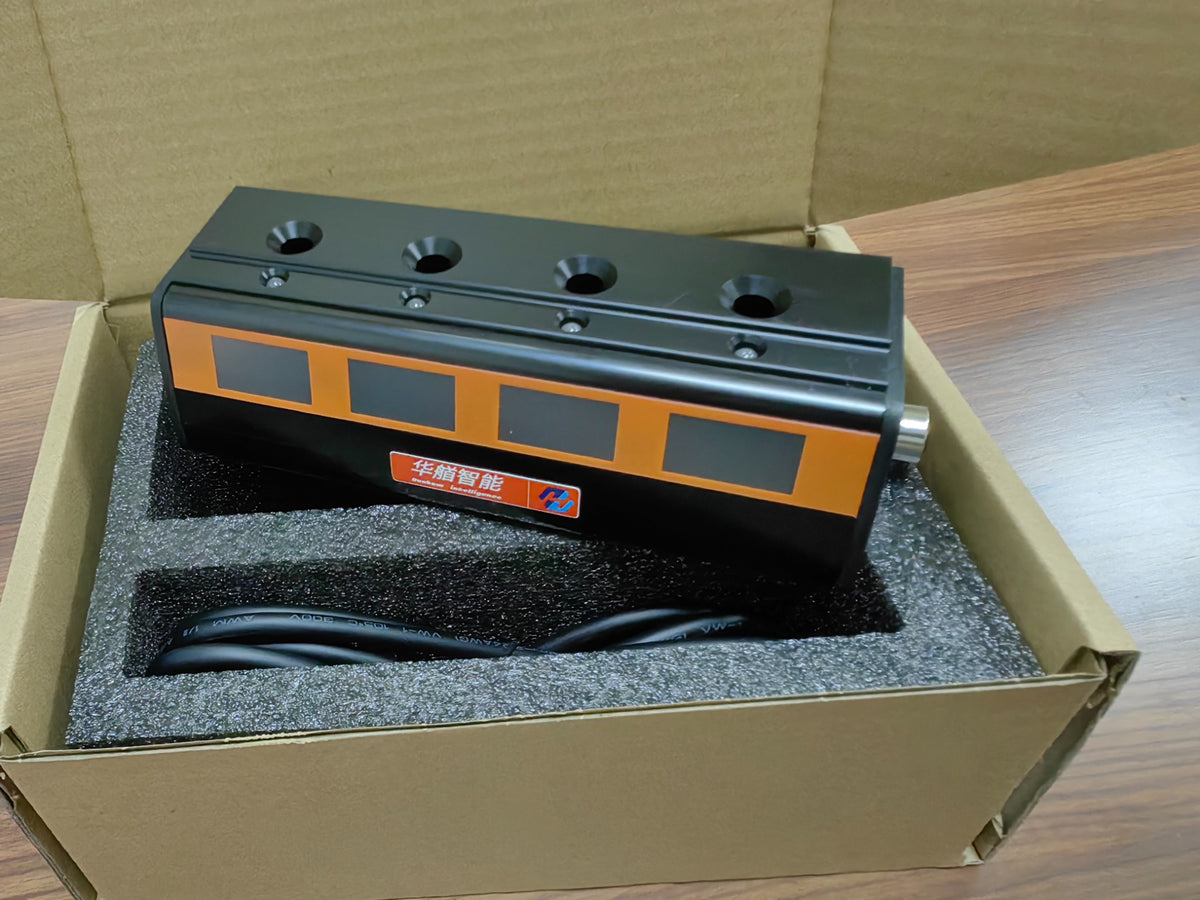

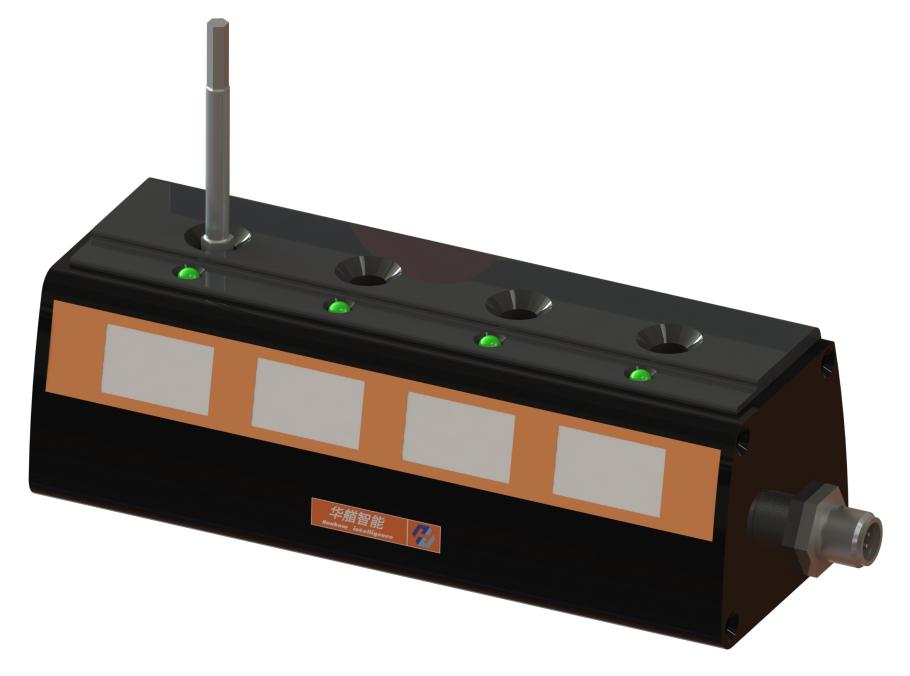

The gallery includes product and workshop photos as well as a technical illustration. Please confirm the final supplied configuration, accessories and integration requirements with HB Torque.
