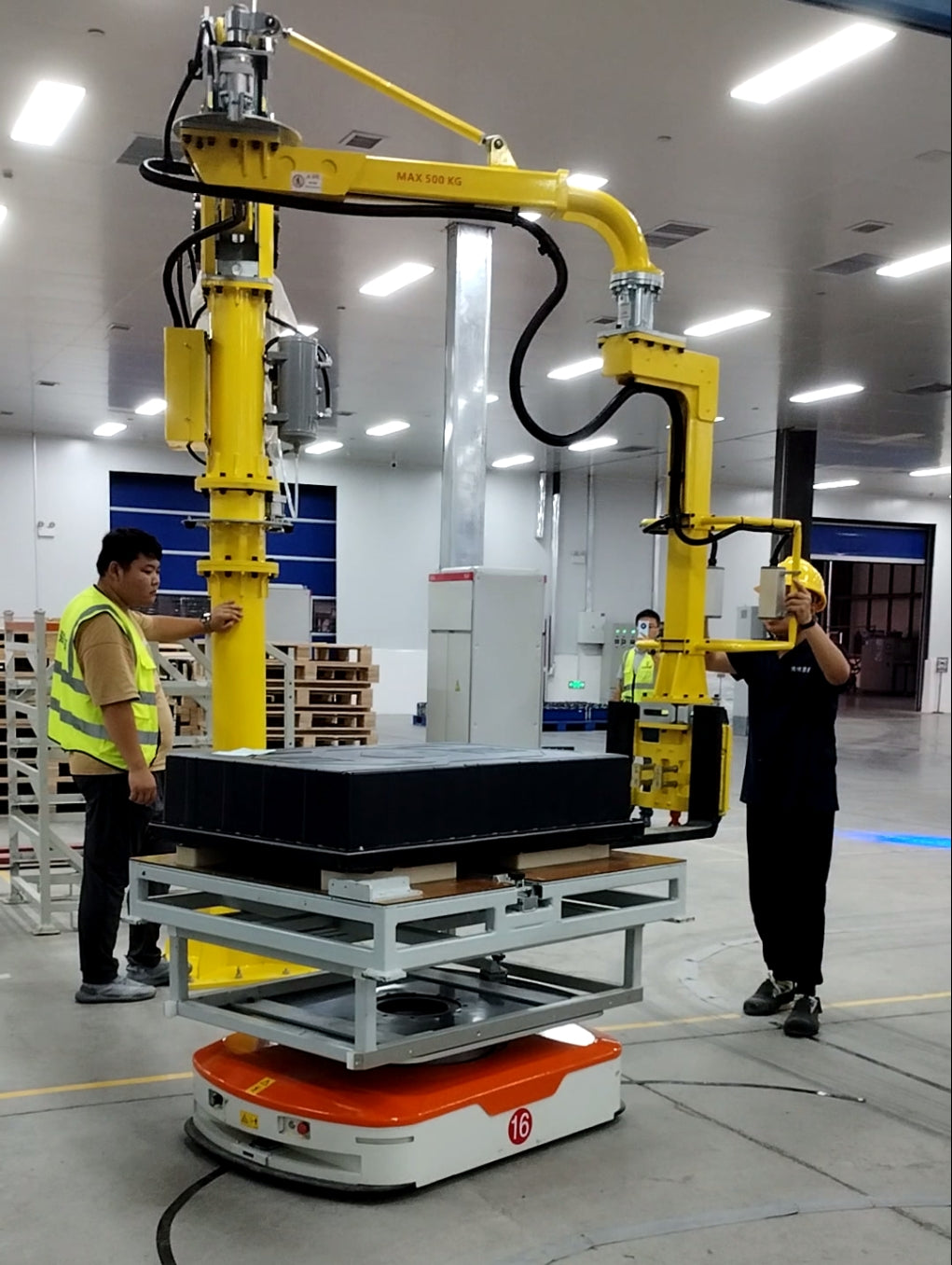

HB Torque heavy-duty rigid-arm manipulator lifting a large liquid-cooled battery pack for electric trucks.

Case Study: Integrating Heavy-Duty Battery PACK Handling with Automated Guided Vehicles (AGV)

The Challenge: Precision Handling for Massive Liquid-Cooled Battery Packs In the commercial EV and heavy-duty truck sector, battery packs are not just heavy—they are the most valuable and sensitive component of the vehicle. Handling a liquid-cooled PACK weighing over 500kg requires more than raw power; it requires absolute stability. Traditional hoists often suffer from "pendulum effects" (swinging), which poses a critical risk to high-voltage connectors and delicate internal thermal management systems during assembly.

The Requirement: A Seamless Link in the Industry 4.0 Chain For a leading new energy heavy-truck manufacturer, the assembly line required a solution that could:

  1. Ensure Zero-Tilt Transfer: Maintain a perfectly horizontal orientation to protect internal cells.

  2. Support AGV Integration: Precisely dock the massive battery pack onto an automated guided vehicle (AGV) for the next stage of autonomous transport.

  3. Guarantee Operator Safety: Provide a weightless feel for a payload that could otherwise be life-threatening if mishandled.

The HB Torque Solution: Heavy-Duty Rigid-Arm Technology To solve this, HB Torque deployed our flagship Heavy-Duty Rigid-Arm Pneumatic Manipulator. Unlike cable-based systems, our rigid-arm architecture provides the structural integrity needed for high-payload operations.

  • High-Capacity Zero-Gravity Control: Our pneumatic balancing system makes a 500kg+ battery pack feel like it weighs less than 5kg in the operator's hands.

  • Custom Structural Gripper: We engineered a specialized frame-style gripper that secures the PACK from its structural mounting points, ensuring zero stress on the outer casing.

  • Precision AGV Docking: The rigid-arm design eliminates swing entirely, allowing the operator to align the pack with the AGV's mounting pins with millimeter precision.

Proven in the Gigafactory Environment This deployment, featured in a high-volume "Cleanroom" testing and assembly area, demonstrates HB Torque's ability to operate at the heart of modern Gigafactories. By bridging the gap between manual guidance and automated transport (AGV), we help manufacturers achieve a truly flexible and safe production flow.

The Result: Safety, Speed, and Synchronicity The implementation resulted in a 100% safety record during the battery-to-AGV transfer process and a significant reduction in cycle time, allowing the facility to scale up its heavy-truck production to meet global demand.
