Case Study: Zero-Damage Vacuum Handling for Forklift Assembly Lines
Share
The Challenge: The Hidden Cost of Component Damage In heavy machinery and forklift manufacturing, assembling bulky painted components—like rear cover plates—is a high-risk operation. Traditional wire-rope hoists and fabric slings often swing, causing collisions that scratch A-class painted surfaces. This leads to expensive rework, wasted time, and significant ergonomic strain on operators who have to manually guide the swinging payload.

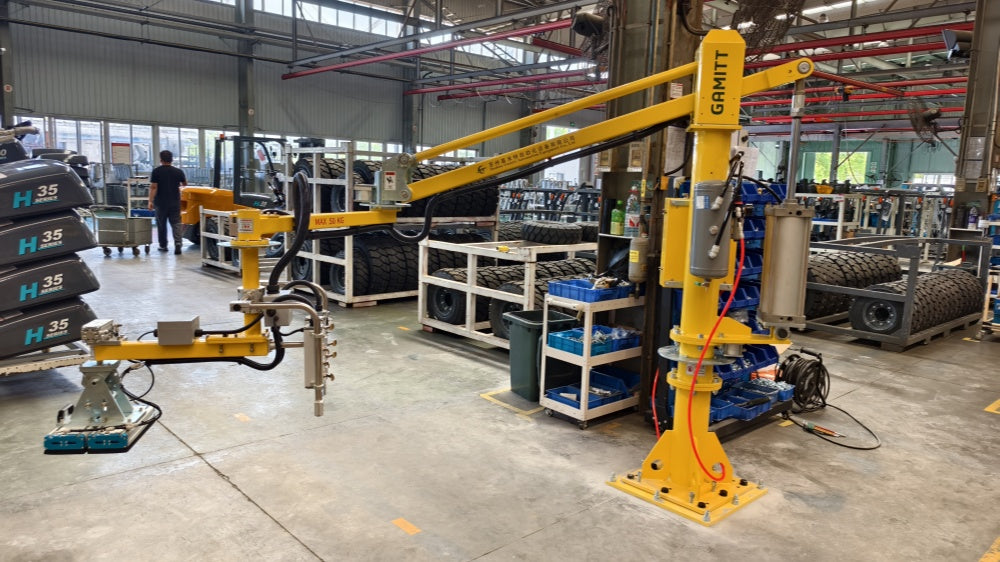

The HUABOW Solution: Precision Vacuum & Rigid-Mast Technology To solve this, HUABOW engineers designed a custom zero-gravity handling system tailored for heavy vehicle assembly. We replaced the traditional soft-cable hoist with our signature Rigid-Mast Pneumatic Manipulator and paired it with a Custom Vacuum End-Effector.
-
Zero-Scratch Suction: The vacuum pads securely grip the curved, painted surface without leaving a single mark or scratch.
-
100% Horizontal Lock: The rigid mast eliminates the "pendulum effect," ensuring the heavy cover remains perfectly level during transport and installation.
-
Ergonomic Excellence: What used to be a hazardous two-man job is now effortlessly controlled by a single operator using just one hand.
The Result: Zero Scrap, Maximum Safety By integrating this HUABOW manipulator, the assembly line achieved a 0% component damage rate and completely eliminated the ergonomic risks associated with heavy lifting.
🔥 Take The 48-Hour Free CAD Challenge! Are traditional lifting tools holding back your assembly line? Do you have an awkward or fragile payload that needs a custom solution?
Send us your component's STEP file today. Our engineering team will design a FREE custom end-effector 3D concept for you within 48 hours. No commitments, just pure engineering speed.
