ENGINEERED TO ORDER
Request an Engineering Review
Send your workpiece, tightening-tool or process details. Our team will review torque, reach, movement, positioning and traceability requirements.
YEBO YBA-B028 Roller Conveyor Assembly Workstation: HB Torque engineers a complete assembly, tightening and workpiece-transfer workstation around a project-selected YBA-B028 roller conveyor module, fixture or pallet, adjacent process equipment and production-control requirements.
Compatibility and scope: This listing is for an HB Torque engineered workstation, not for a standalone YEBO conveyor component. The YBA-B028 module may be customer-supplied or project-specified. Third-party names and model numbers are used only to identify intended integration applications; no affiliation, authorization or endorsement is implied.
YEBO YBA-B028 Roller Conveyor Assembly and Tightening Workstation

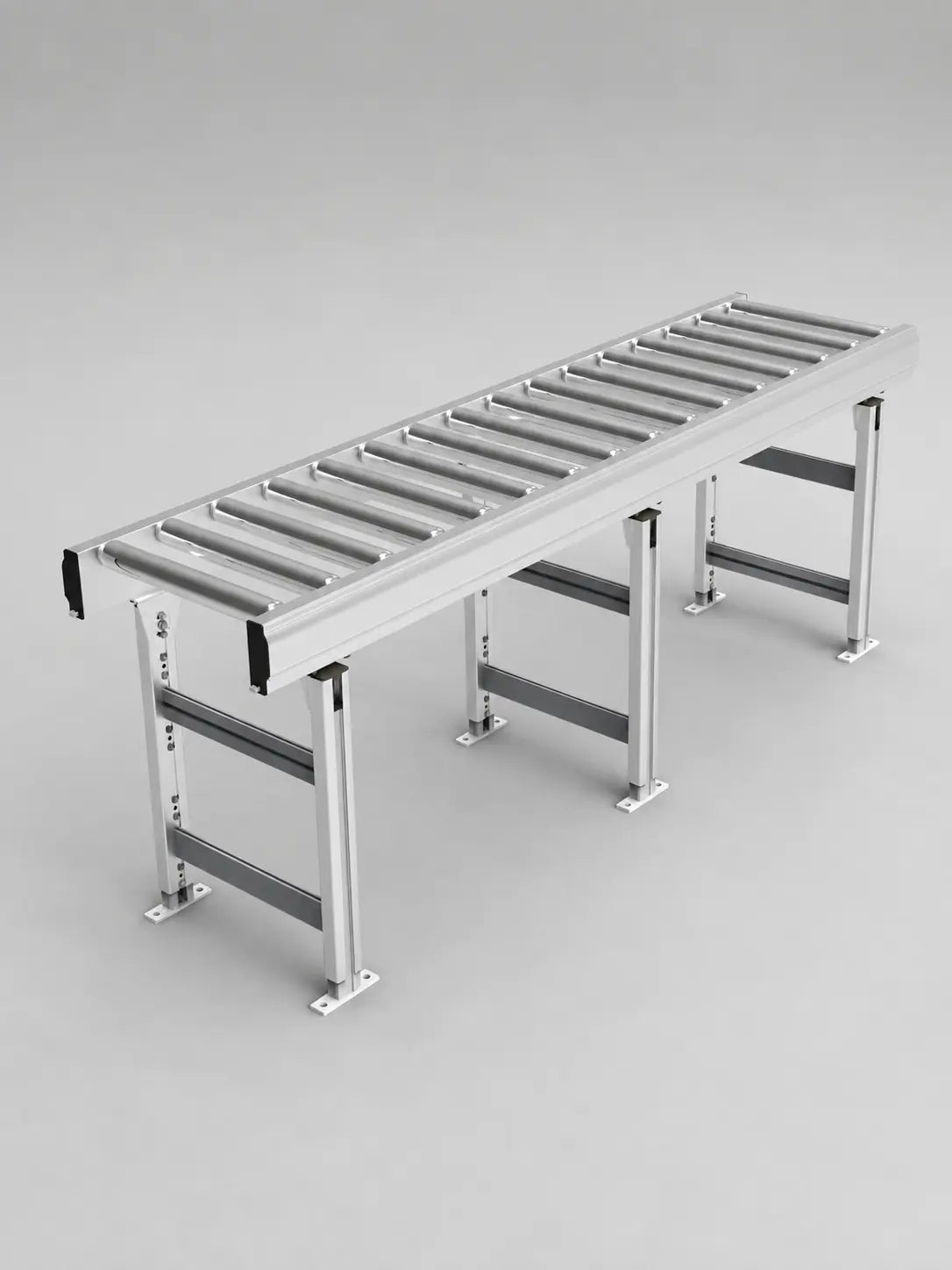

The source catalog identifies this product as B028 输送线, translated as B028 Conveyor Line. Its parallel cylindrical rollers, aluminum side rails and adjustable support frame provide a configurable transfer section for fixtures, pallets and supported workpieces moving into or out of a manual assembly or tightening station.
Catalog-Verified YBA-B028 Configuration
| Parameter | Catalog designation | Catalog-listed values |
|---|---|---|
| Product family | YBA-B028 | Roller conveyor line |
| Roller diameter | Ø50 | 50 mm |
| Line-body internal width | BF | 310 / 360, 410 / 460, 510 / 560, 610 / 660, 710 / 760, 810 / 860, 910 / 960, or 1010 mm |
| Roller pitch | P | 55, 75, 100 or 125 mm |
| Conveyor length | L | 975, 990, 1000, 1950, 1980, 2000, 2970 or 3000 mm |
| Side-plate combination | LL / HH / LH-HL | Selected to suit the transfer interface |
| Line-body height | H | Catalog example H750; height is shown as customizable |
Catalog model-code example: YBA-B028-BF410-P125-L2000-LL-H750. Final dimensions and the exact order code are confirmed during engineering review.
What HB Torque Integrates
- Project-selected YBA-B028 roller conveyor section and support-frame arrangement
- Mechanical interface to the adjacent assembly, inspection or tightening workstation
- Application-specific fixture or pallet transfer layout
- Specified stops, position detection and process interlocks when required
- Operator reach, loading direction and working-height review
- Optional controller, HMI, barcode, OK/NOK and traceability functions
- Project-specific guarding, cable routing and workstation safety provisions
Why the Conveyor Must Be Engineered with the Workstation
Internal width, roller pitch, conveyor length, side-plate arrangement and line height affect fixture support, transfer stability, operator access and alignment with adjacent equipment. HB Torque verifies the workpiece or pallet footprint, mass, center of gravity, transfer direction, cycle requirement and process position before defining the final configuration.
Engineering Information Required
- Workpiece and fixture or pallet drawings, dimensions and maximum mass
- Required conveyor width, length, working height and transfer direction
- Loading and unloading method and required production cycle
- Adjacent workstation, machine or line-interface dimensions
- Required stop, positioning, sensing, PLC and traceability functions
- Plant layout, available floor space and operator-access requirements
Typical Applications
Automotive components, motors, gearboxes, pumps, battery modules, machinery assemblies and other production cells where a supported workpiece or fixture must transfer between loading, tightening, inspection and unloading positions.
Frequently Asked Questions
Does HB Torque sell the YBA-B028 conveyor as a standalone component?
No. This page is for a complete HB Torque engineered workstation. Component sourcing and the included project scope are confirmed during quotation.
Is the conveyor powered?
The source catalog identifies the B028 roller conveyor and its dimensional configuration but does not specify the transfer or drive method. HB Torque confirms the required transfer method during engineering review.
Can the conveyor connect to our existing tightening or assembly equipment?
Yes, subject to engineering verification. Send the existing equipment layout, interface height, workpiece or pallet data and required cycle sequence.
