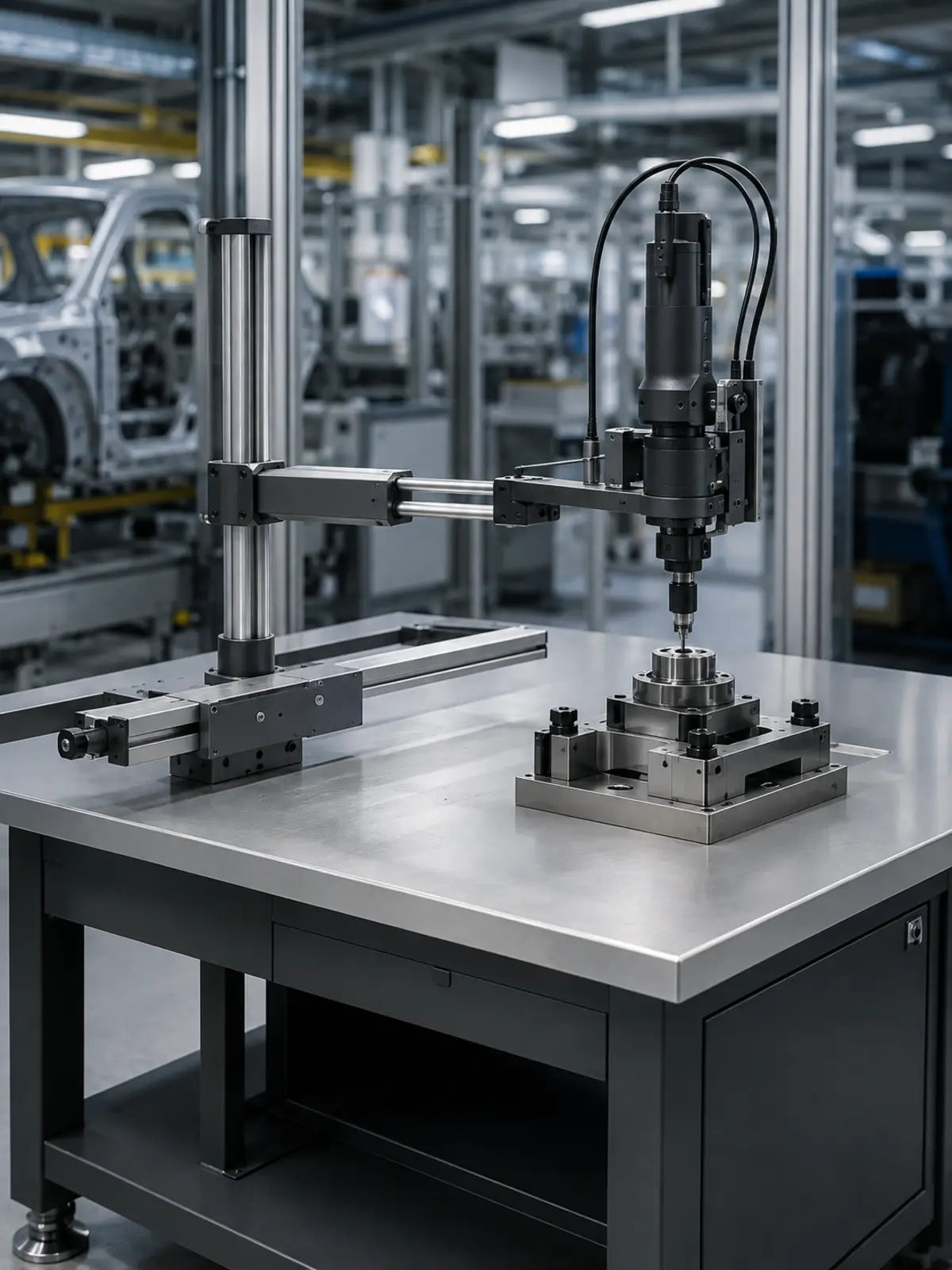

• HB Torque YEBO YBA-B008 TA Series articulated folding torque arm workstation with rigid mechanical clamp

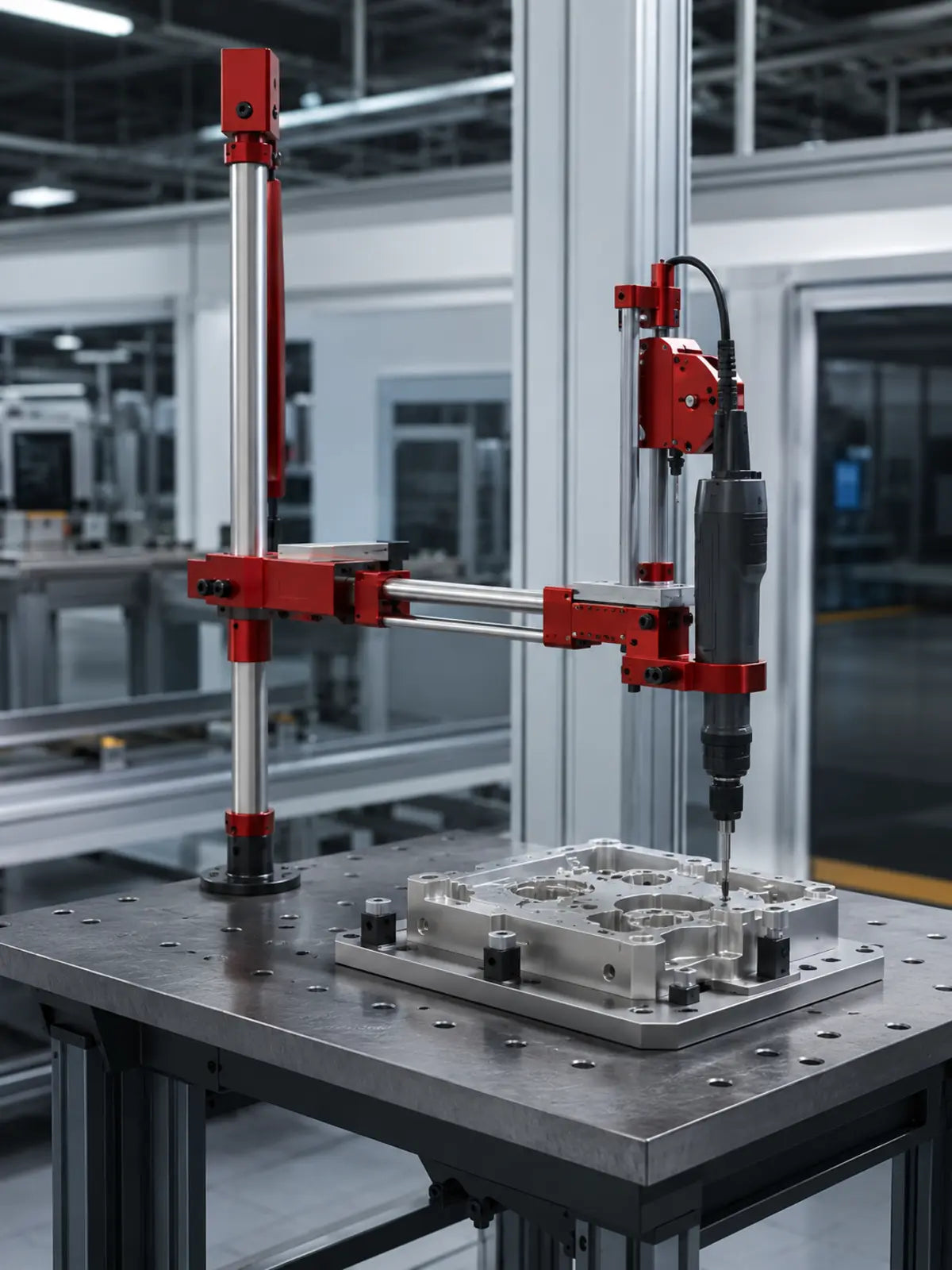

  • YEBO YBA-B008 TA articulated folding arm with customer-owned inline nutrunner for vertical tightening

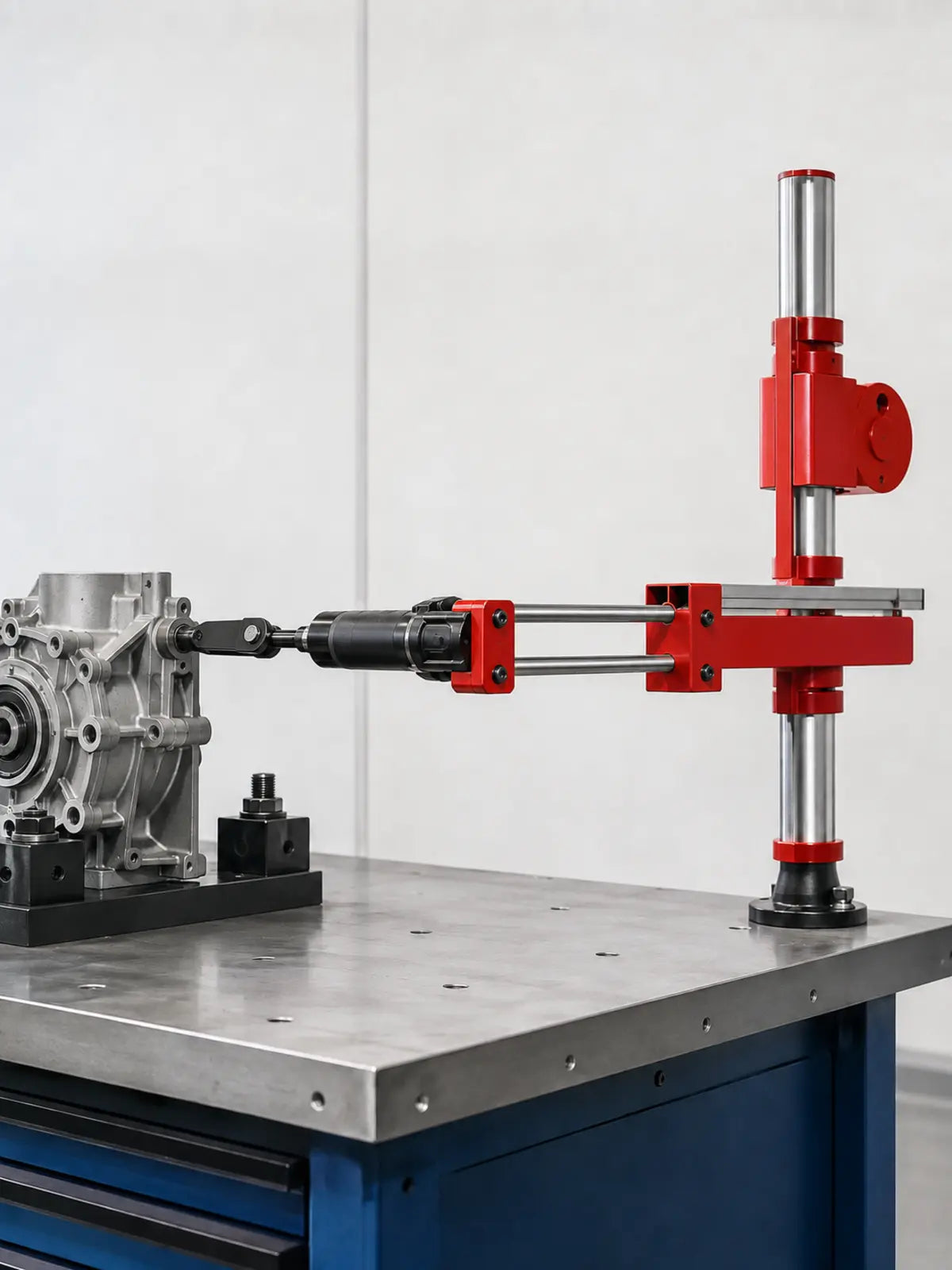

  • YEBO YBA-B008 TA Series reaction arm workstation for horizontal fastening into a clamped gearbox housing

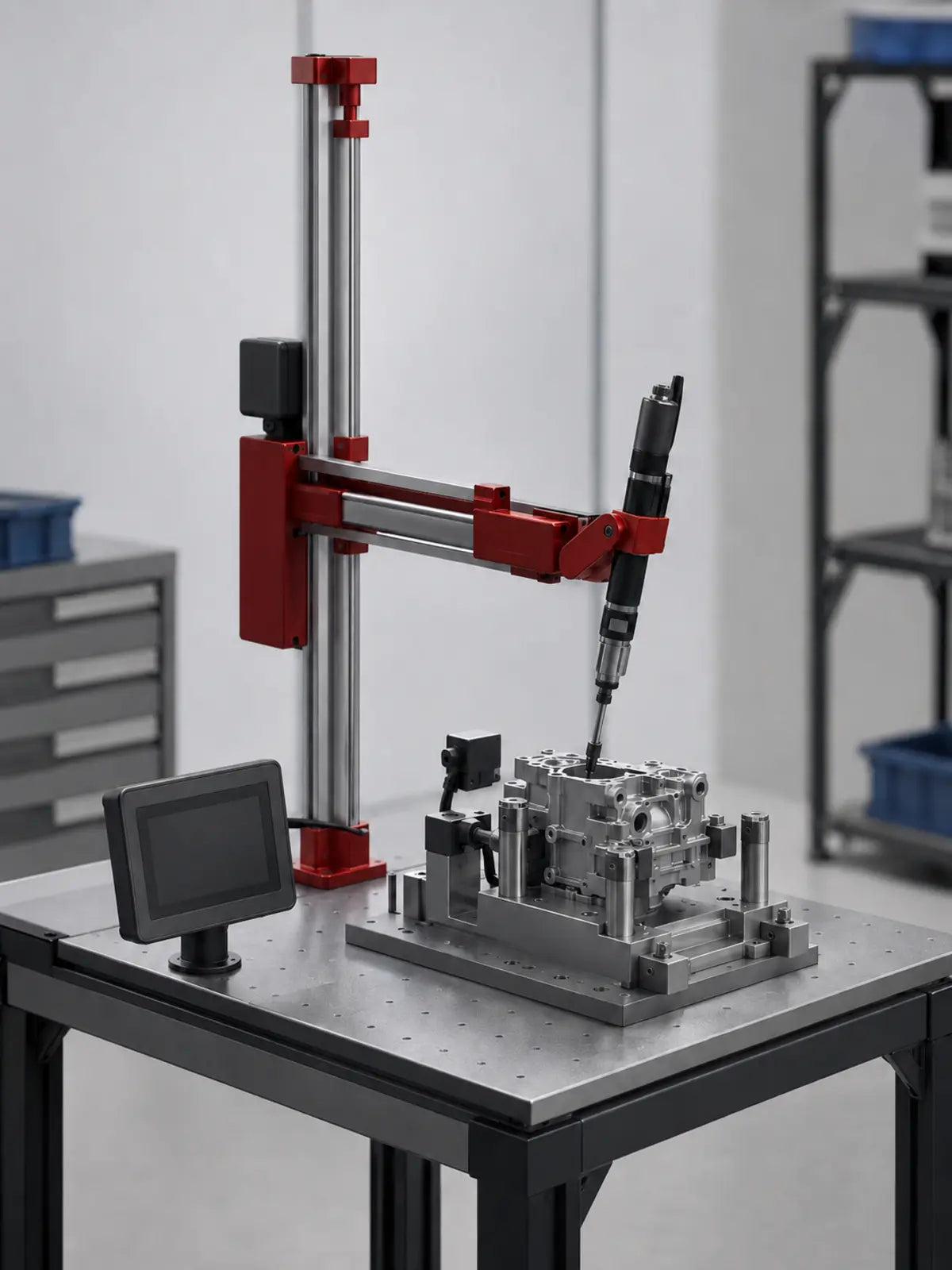

  • HB Torque YBA-B008 TA position-guided folding torque arm workstation with optional XY or XYZ sensors
1 4

HB Torque YEBO YBA-B008 TA Series Articulated Folding Torque Arm Workstation | 25–100 N·m

HB Torque YEBO YBA-B008 TA Series Articulated Folding Torque Arm Workstation | 25–100 N·m

ENGINEERED TO ORDER

Request an Engineering Review

Send your workpiece, tightening-tool or process details. Our team will review torque, reach, movement, positioning and traceability requirements.

Request a Quote

HB Torque engineered assembly workstation for YEBO YBA-B008 TA Series articulated folding torque arms. This complete workstation integrates a rigid torque-reaction arm, mechanical tool clamp, industrial workbench and application fixture around the customer's fastening process. It is designed to accept a customer-owned electric, pneumatic or cordless tightening tool whose geometry and torque are confirmed during engineering.

Original product and application

The catalog identifies this product as the YBA-B008 desktop assist arm — TA Series and uses the original term articulated folding torque arm (关节折叠力臂). The compact folding structure supports vertical or horizontal fastening while transferring tightening reaction into the rigid arm and workstation structure. Standard, XY and XYZ position-detection configurations are available.

Catalog model range

Model Vertical torque Horizontal torque Load R / E / D / H (mm)
YBA-B008-TA025Z1 25 N·m 20 N·m 2.5 kg 715 / 300 / 600 / 1030
YBA-B008-TA025Z2 25 N·m 20 N·m 2.5 kg 715 / 300 / 500 / 1035
YBA-B008-TA050Z1 50 N·m 35 N·m 8 kg 905 / 400 / 500 / 1040
YBA-B008-TA050Z2 50 N·m 35 N·m 8 kg 905 / 400 / 500 / 1040
YBA-B008-TA100Z1 100 N·m 60 N·m 8 kg 940 / 400 / 500 / 1050
YBA-B008-TA100Z2 100 N·m 60 N·m 8 kg 940 / 400 / 500 / 1050

XY position-detection models: YBA-B008-TA025-P3A, YBA-B008-TA025-P3B, YBA-B008-TA025-P4A, YBA-B008-TA025-P4B; YBA-B008-TA050-P3A, YBA-B008-TA050-P3B, YBA-B008-TA050-P4A, YBA-B008-TA050-P4B; YBA-B008-TA100-P3A, YBA-B008-TA100-P3B, YBA-B008-TA100-P4A, YBA-B008-TA100-P4B.

XYZ position-detection models: YBA-B008-TA025-ZP3A, YBA-B008-TA025-ZP3B, YBA-B008-TA025-ZP4A, YBA-B008-TA025-ZP4B; YBA-B008-TA050-ZP3A, YBA-B008-TA050-ZP3B, YBA-B008-TA050-ZP4A, YBA-B008-TA050-ZP4B; YBA-B008-TA100-ZP3A, YBA-B008-TA100-ZP3B, YBA-B008-TA100-ZP4A, YBA-B008-TA100-ZP4B. Catalog example: YBA-B008-TA050-ZP4A.

HB Torque workstation scope

  • Application-sized rigid articulated torque-reaction arm
  • Mechanical clamp engineered for the customer's tightening-tool body and output orientation
  • Industrial workbench, base structure and product fixture
  • Optional XY or XYZ position sensing and process interlock integration
  • Engineering review of torque, reach, working height, tool load and fastening direction

Important: The third-party tightening tool, controller, battery, charger and related accessories shown or referenced are not included in the workstation quotation unless they are separately and lawfully supplied. Final compatibility must be confirmed against the customer's exact tool model, dimensions, torque program and process.

Request a configured workstation quotation and send the tightening-tool brand/model, required torque, fastening direction, reach, part drawing and cycle information.
