CCF Series Industrial Manipulator | Cantilever Material Handling Arm

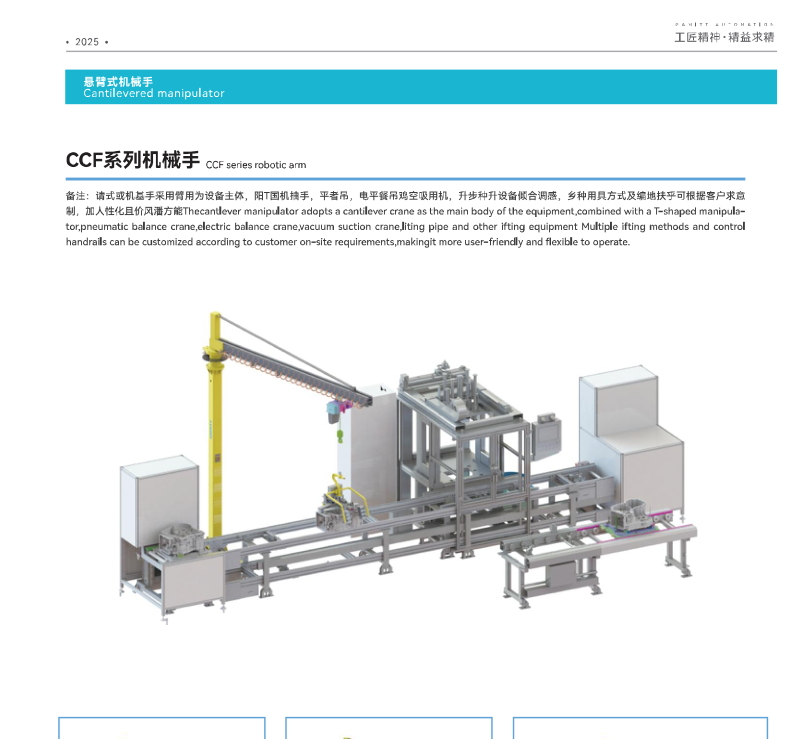

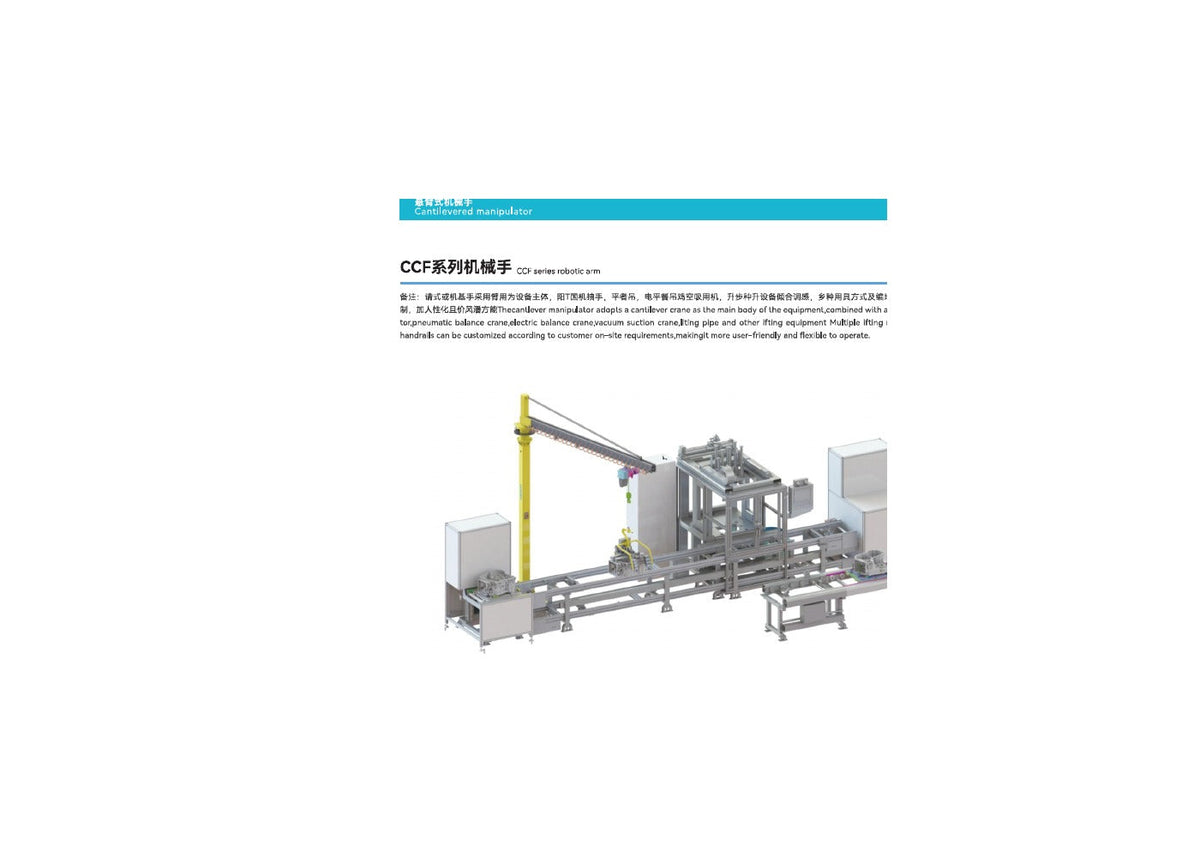

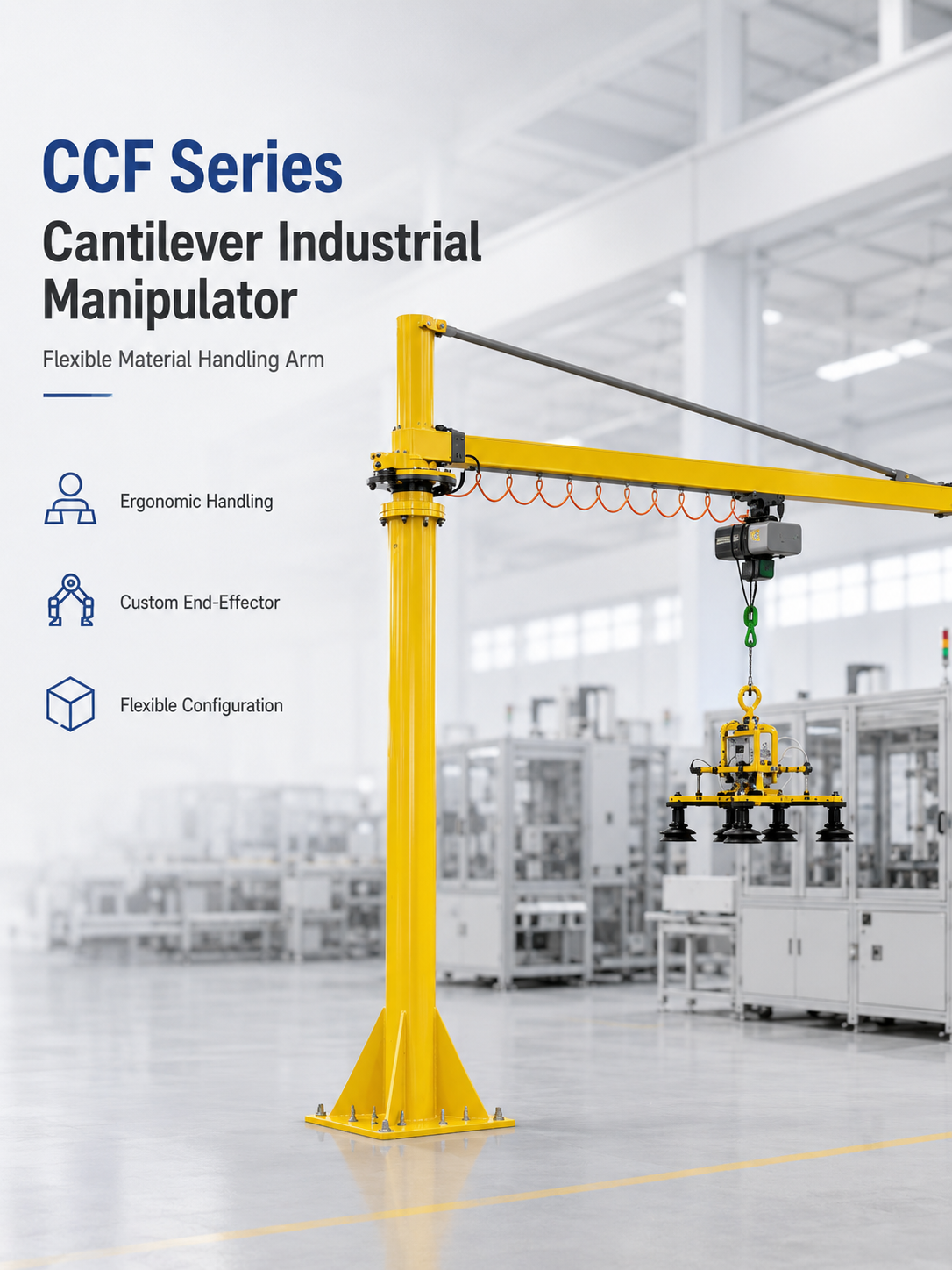

CCF Series Cantilever Industrial Manipulator

The HB Torque CCF Series is a cantilever industrial manipulator and ergonomic material handling arm for assisted lifting, positioning and transfer at production and assembly workstations. The system is engineered around the workpiece, operating envelope and on-site process rather than supplied as a one-size-fits-all lifter.

This type of cantilever manipulator is suitable for applications that need open workstation access, operator-guided movement and custom end-effectors for handling components that are difficult, repetitive or inefficient to move manually.

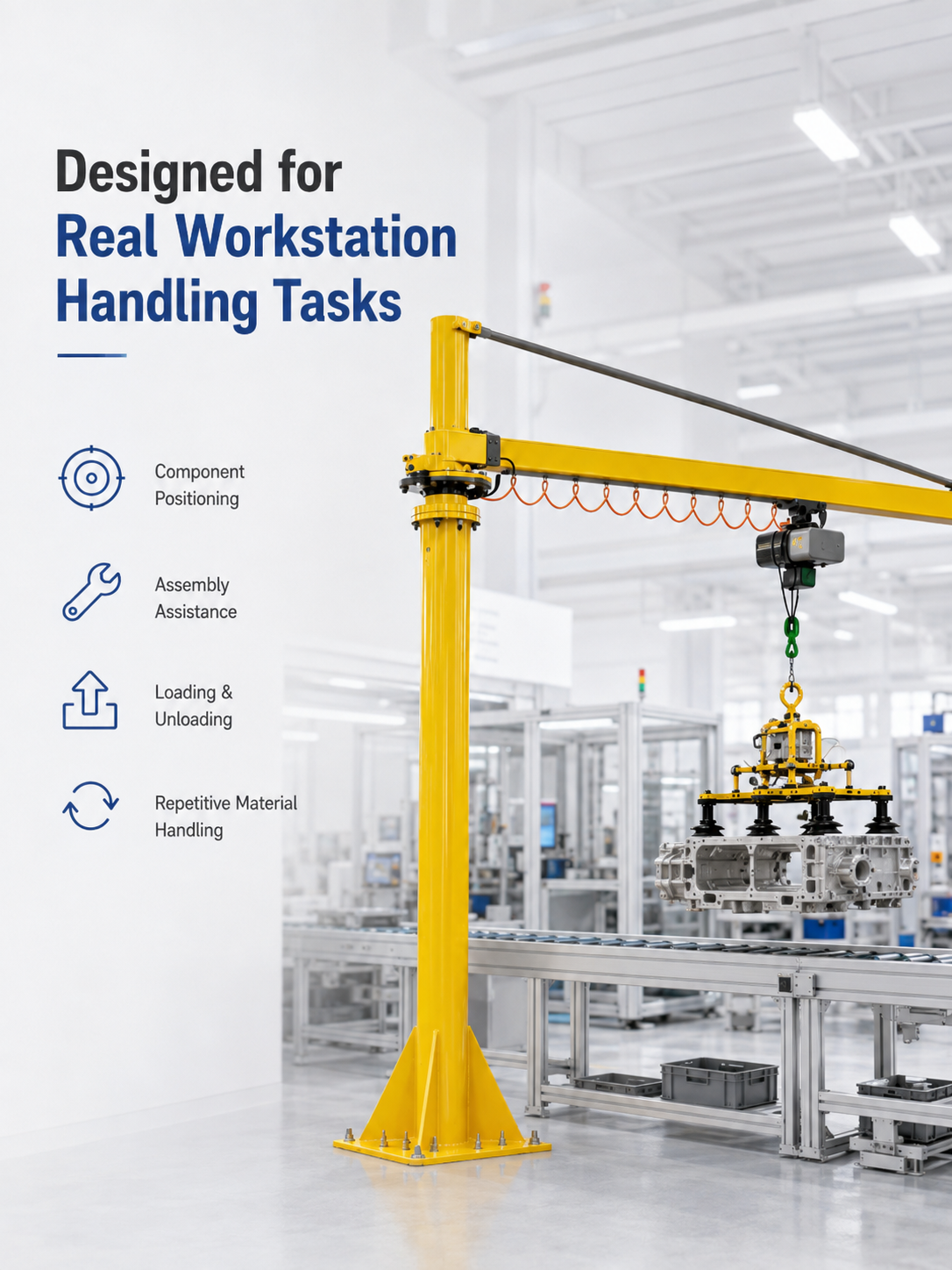

Typical Applications

• Assembly line component lifting and positioning
• Machine loading and unloading
• Line-side material transfer
• Repetitive part handling at production workstations
• Fixture loading and assisted assembly
• Ergonomic lifting of components with custom gripping requirements

Key Features

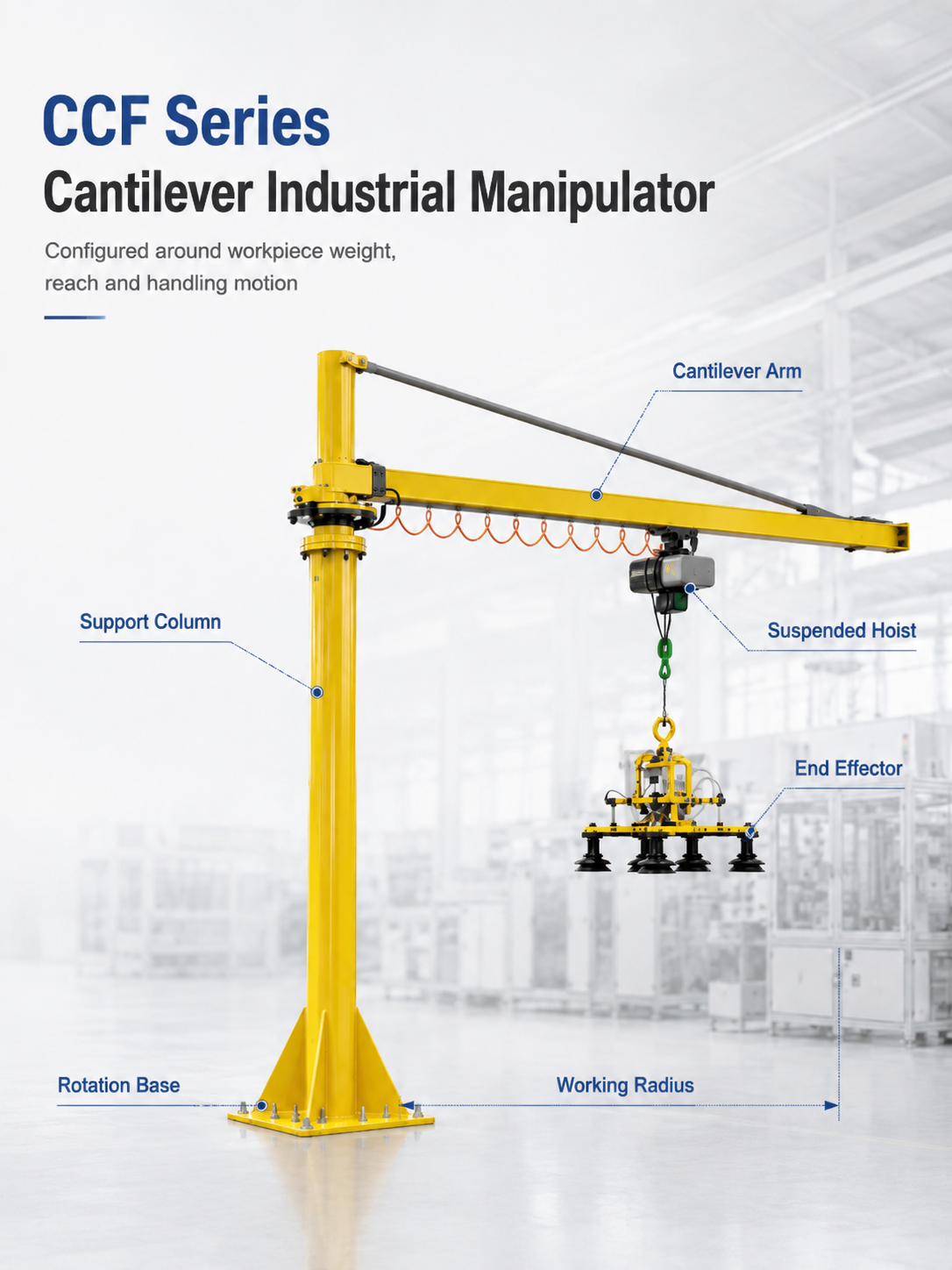

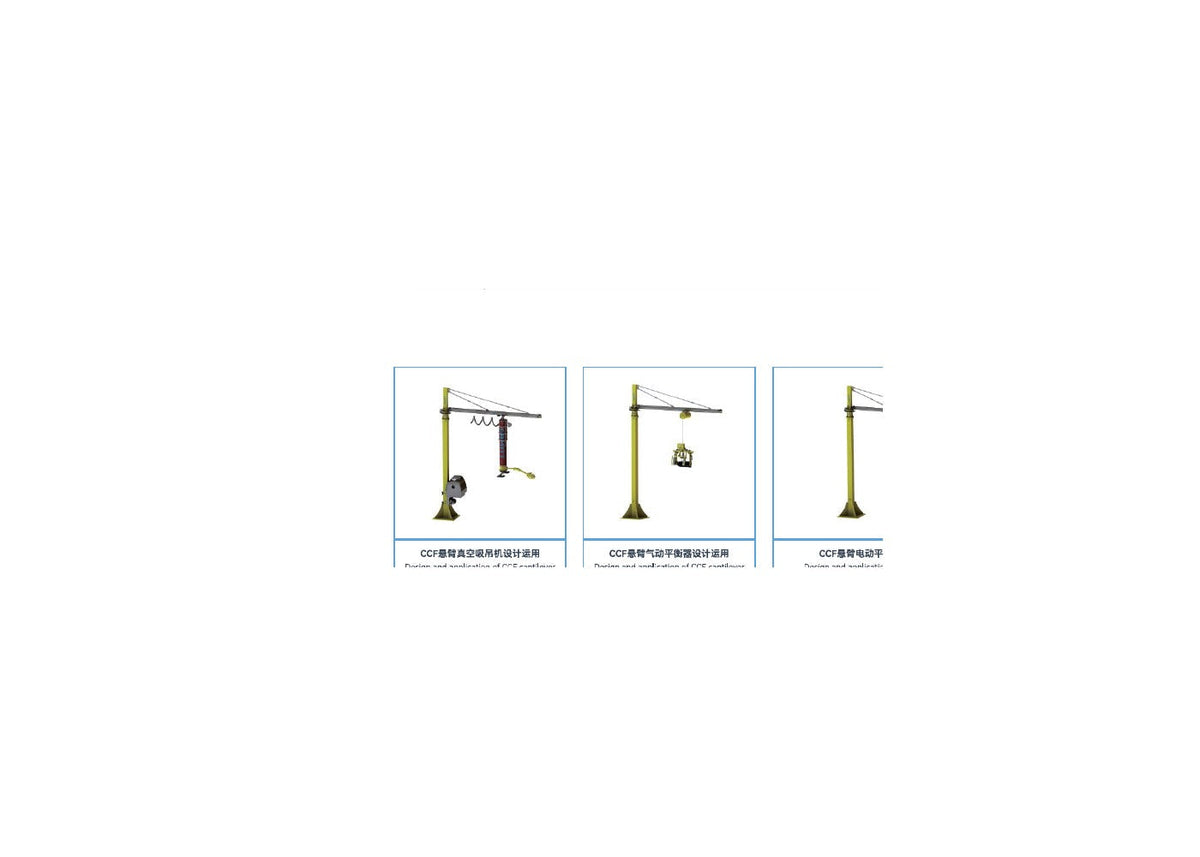

• Cantilever arm layout: supports flexible access to the work area while the handling system is supported from one side.
• Custom handling concept: configuration can be adapted to the workpiece, station layout and required motion.
• Custom end-effectors: gripping fixtures, control handles and tooling can be designed around the component.
• Operator-guided movement: suitable for assisted lifting, positioning, rotation and transfer tasks.

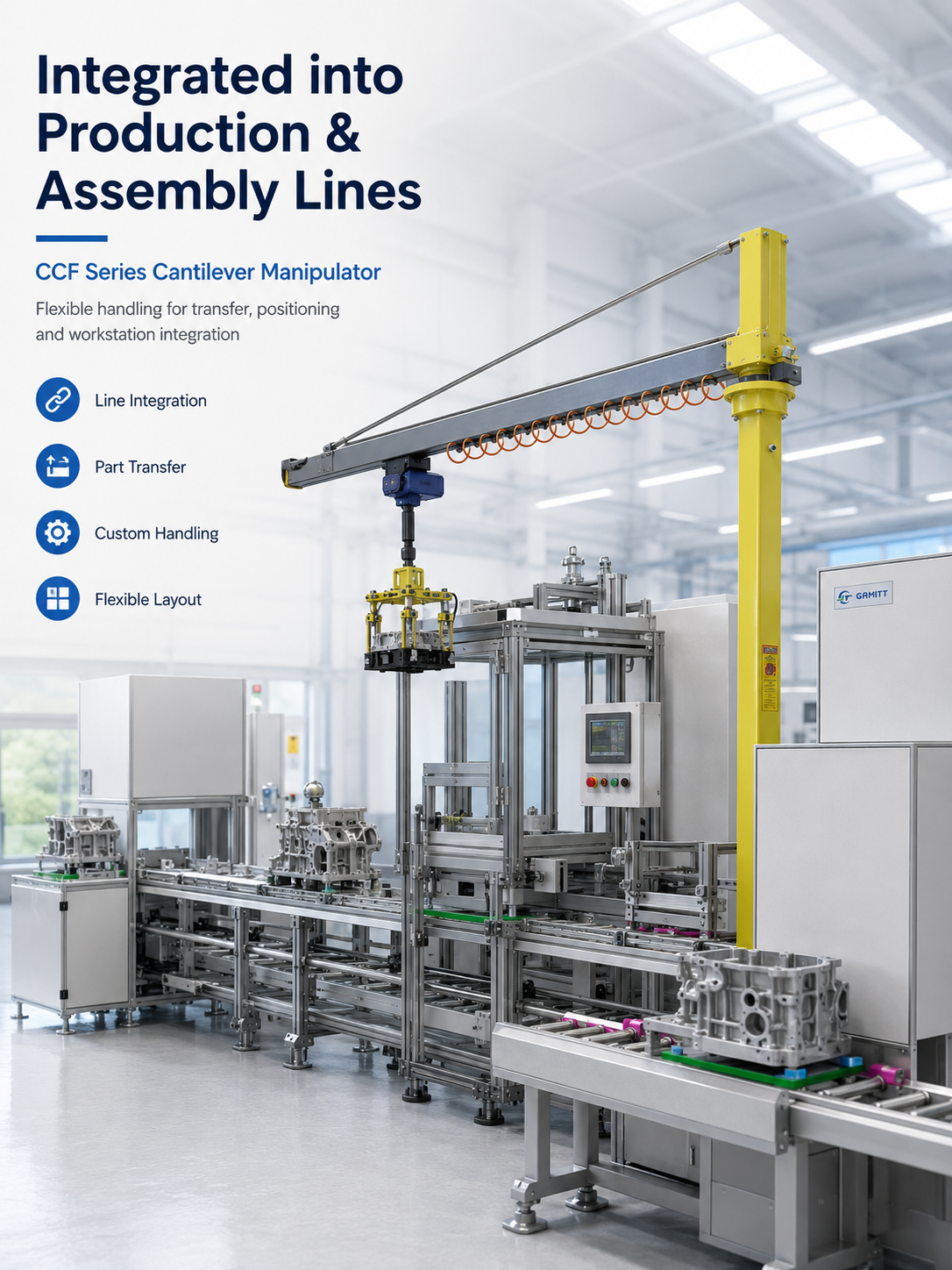

• Workstation integration: designed for industrial production, assembly and material handling environments.

Industrial Manipulator Selection Parameters

To size the correct material handling arm, provide the following information:

• Workpiece weight and dimensions
• Center of gravity
• Required lifting height
• Horizontal working radius / required reach
• Pick and place coordinates
• Required rotation, tilt, flip or orientation control
• Available installation space
• Cycle requirements and operator working direction

Custom End-Effector and Workpiece Handling

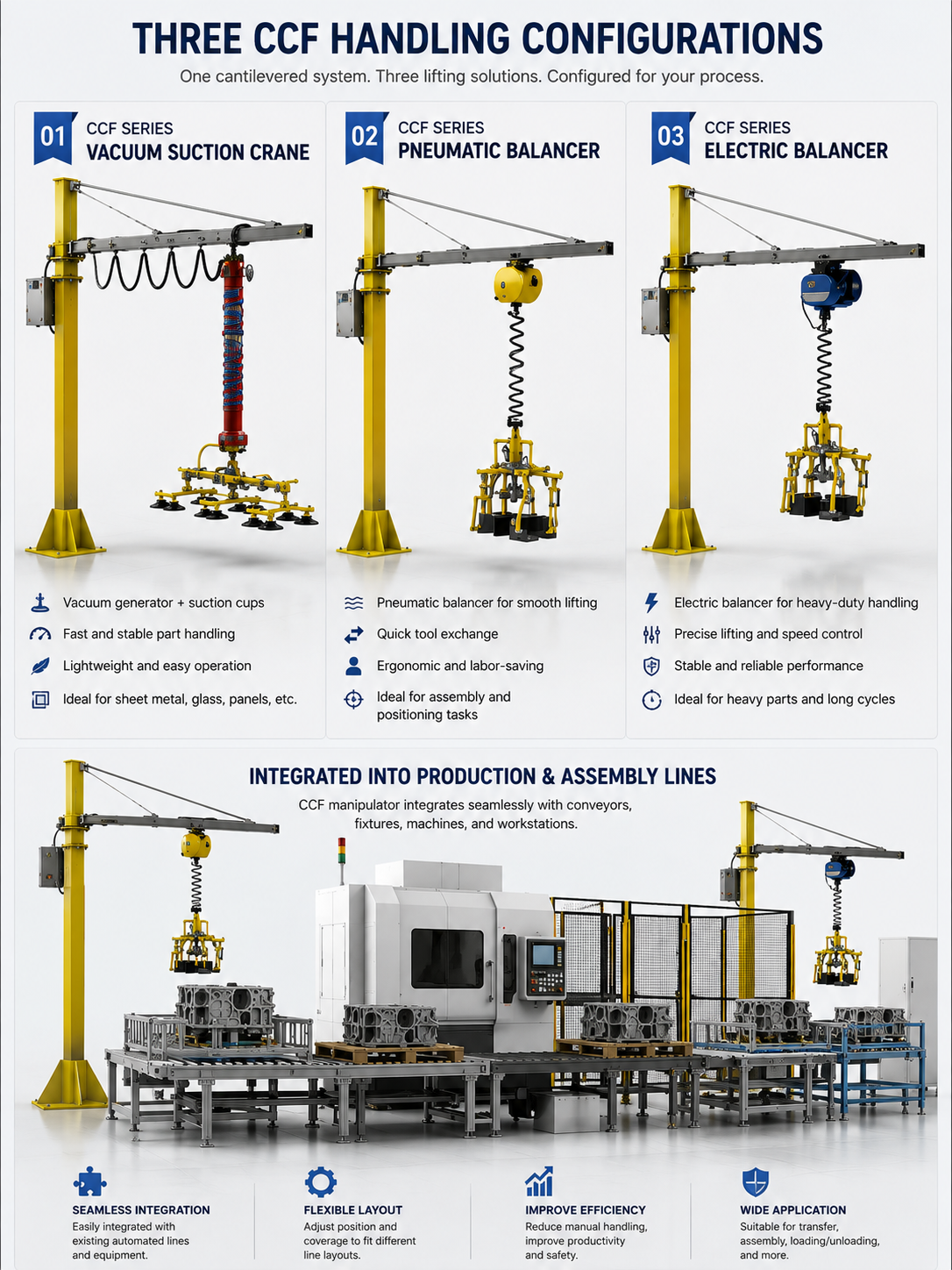

The final industrial manipulator configuration depends heavily on how the component must be picked, held and positioned. HB Torque can configure custom fixtures and end-effectors for specific workpieces where standard hooks or grippers are not suitable. Workpiece photos, drawings or CAD files help define possible gripping points and movement requirements.

Why Use an Ergonomic Material Handling Arm?

For repetitive production tasks, an ergonomic lifting arm can reduce the amount of manual force required to move and position a component. The objective is to improve handling consistency and operator control while adapting the equipment to the actual assembly process.

CCF Cantilever Manipulator vs Other Layouts

The cantilever layout is useful when open access to the workstation is important and the manipulator needs to approach the work area from one side. For applications that require mobility or a different working envelope, compare the M Series Mobile Base Industrial Manipulator and the YF Series Hard-Arm Industrial Manipulator.
