HB Series | Overhead Zero-Gravity Handling System for EV Battery PACK

• Application: Specifically engineered for heavy, large-scale EV Battery PACK trays and finished modules.

• Installation: Space-saving overhead rail suspension design.

• Handling Experience: True zero-gravity pneumatic balancing for effortless, one-handed operation.

• Safety First: Integrated non-fail pneumatic interlocks prevent catastrophic drops.

Mastering the Heavyweights of EV Assembly The EV battery pack is the single most critical, heavy, and structurally complex component in a modern electric vehicle assembly line. Traditional floor-mounted hoists cannot provide the precision, speed, and damage-free handling that Tier 1 battery manufacturers require.

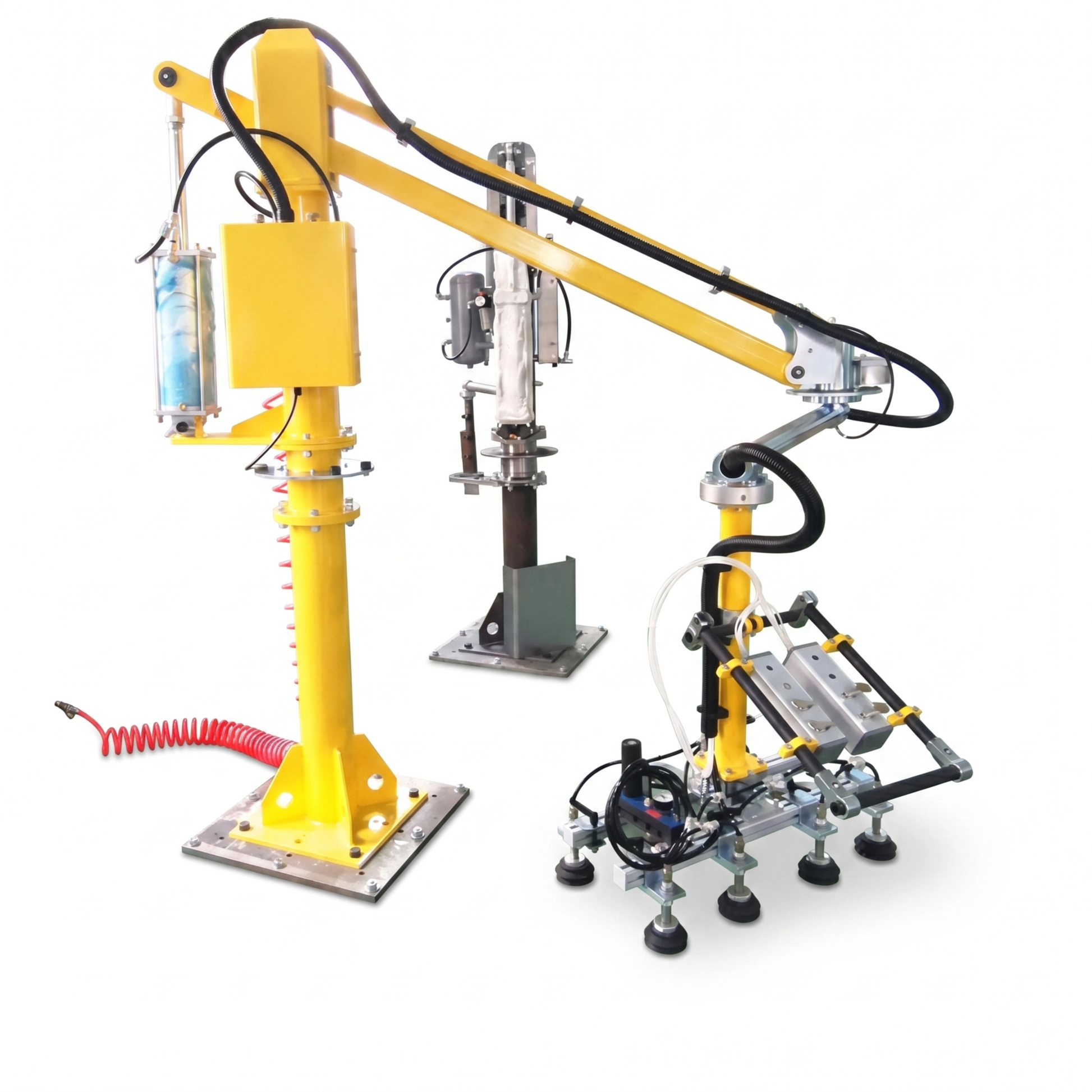

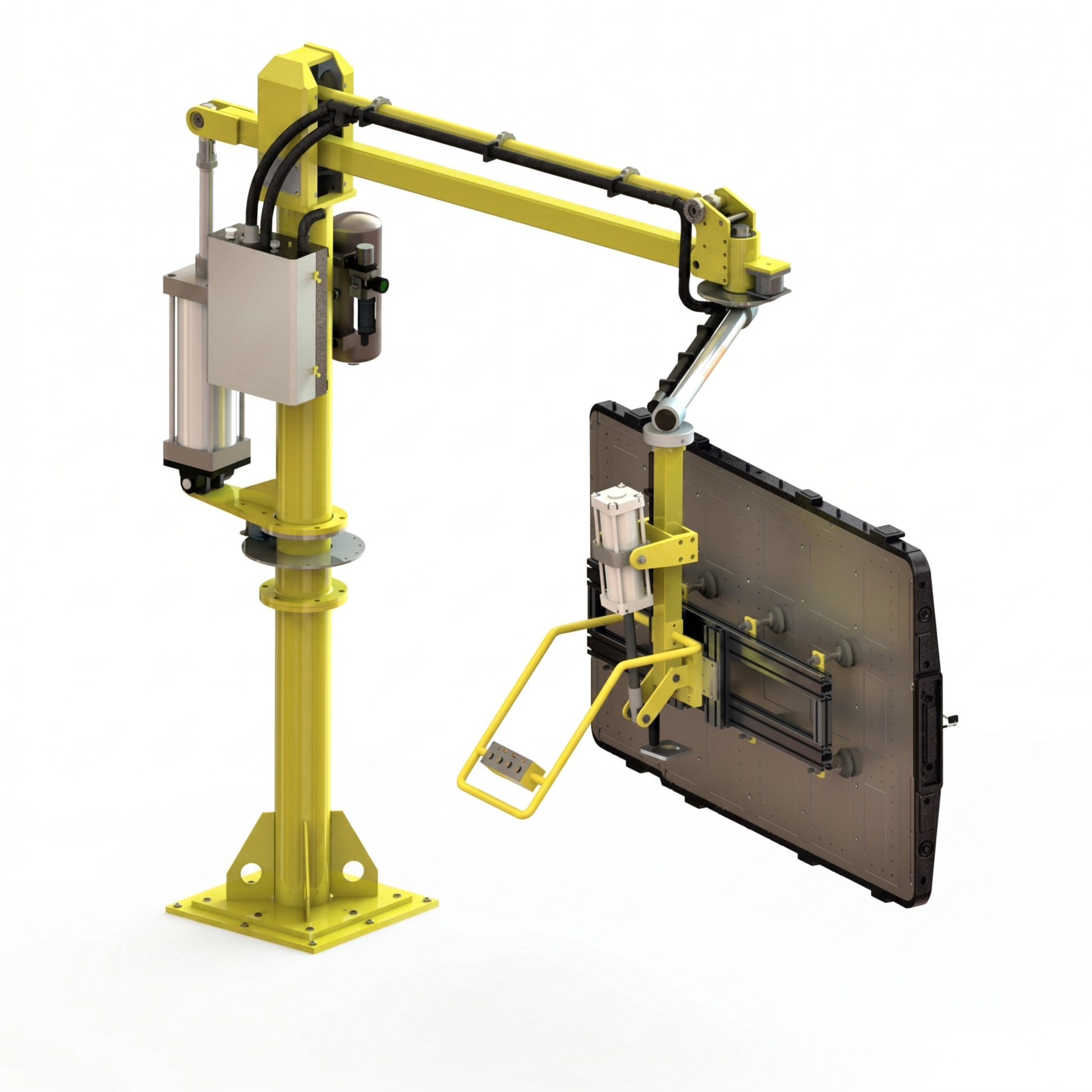

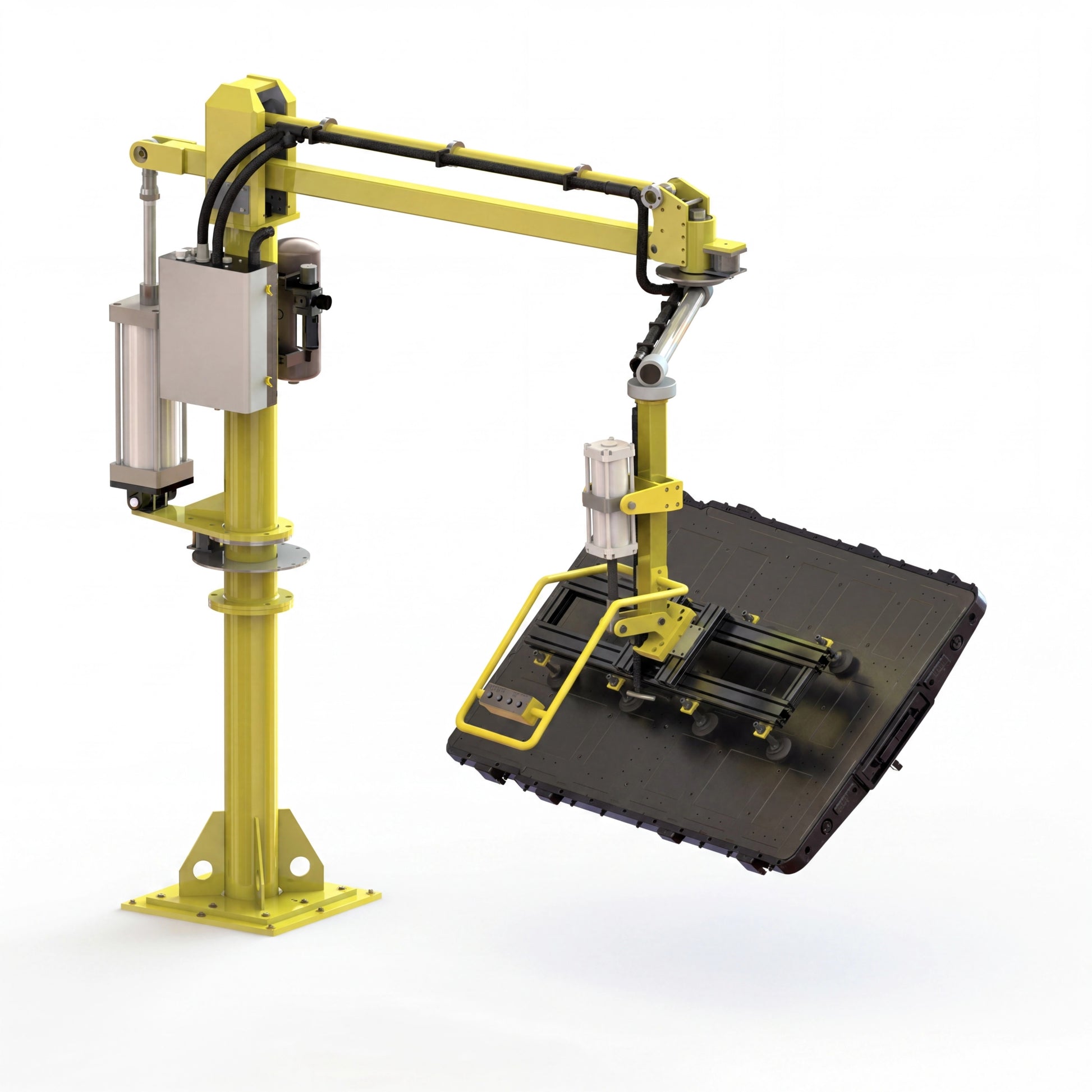

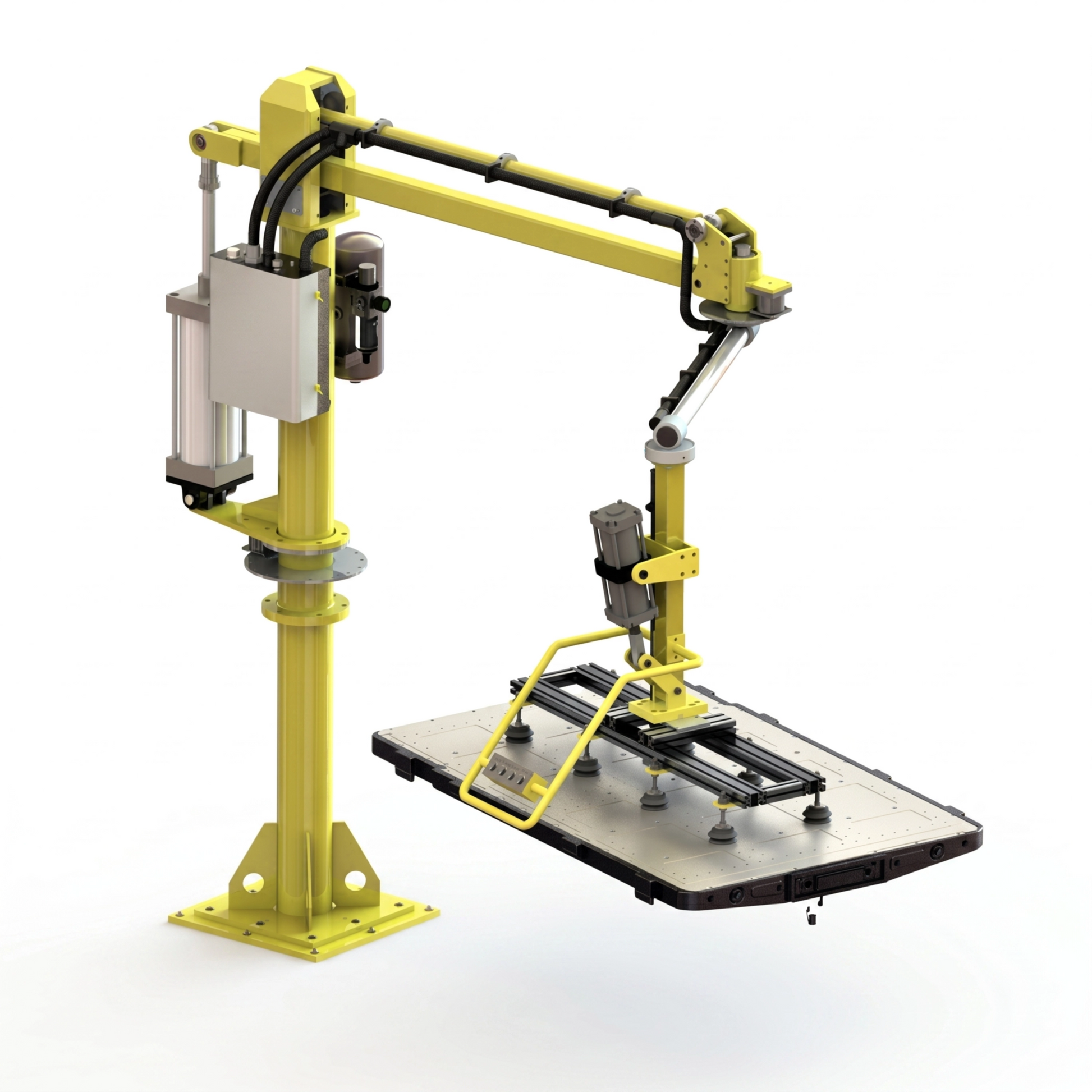

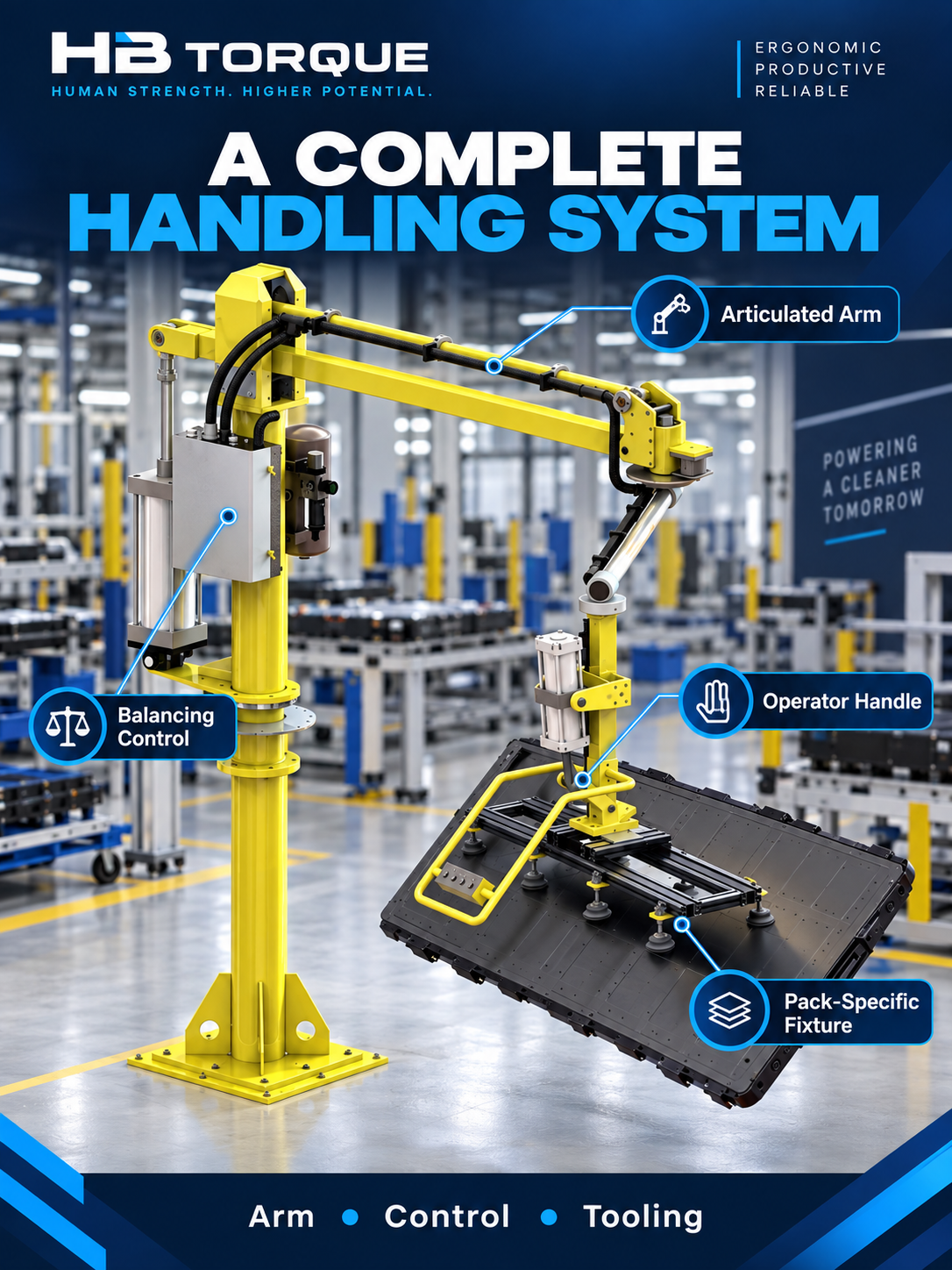

The HB Series Overhead Pneumatic Manipulator is a custom-engineered solution designed to master this exact challenge. By transforming heavy lifting (capable of handling 500kg+ payloads) into an effortless, weightless operation, we eliminate operator fatigue and protect your high-value components.

Key Engineering Advantages:

• Overhead Rail Integration: Suspended from a customizable overhead rail system, this manipulator maximizes your valuable factory floor space and allows for seamless lateral movement across multiple assembly workstations.

• Zero-Gravity Pneumatic Balancing: Utilizing advanced proportional air logic, the system perfectly offsets the weight of the massive battery tray. Operators experience near-zero friction, allowing for millimeter-level precision during the critical mating and positioning phases.

• 100% Custom Non-Marring Gripper: We don't use off-the-shelf clamps. Every HB end-effector is completely bespoke, engineered from your battery pack's 3D CAD data to ensure a secure, scratch-free grip on sensitive aluminum or composite housings.

• Absolute Fail-Safe Security: In EV manufacturing, a dropped battery pack is catastrophic. The HB system features built-in pneumatic safety interlocks and check valves. Even in the event of a total factory air pressure loss, the gripper maintains its hold, ensuring total workplace safety.

Proven in Tier 1 Facilities Tested and validated in our Suzhou engineering facility (FAT), the HB Series is trusted by leading automotive suppliers to keep their assembly lines moving safely and efficiently.

[Request a Custom 3D Handling Proposal]Send us your battery pack dimensions and weight, and our engineering team will design a bespoke handling solution for your specific workflow.
