Planning an intelligent flexible assembly line? HB Torque configures modular stations around your product, process sequence, target cycle time, floor layout and data requirements. Request an engineering proposal.

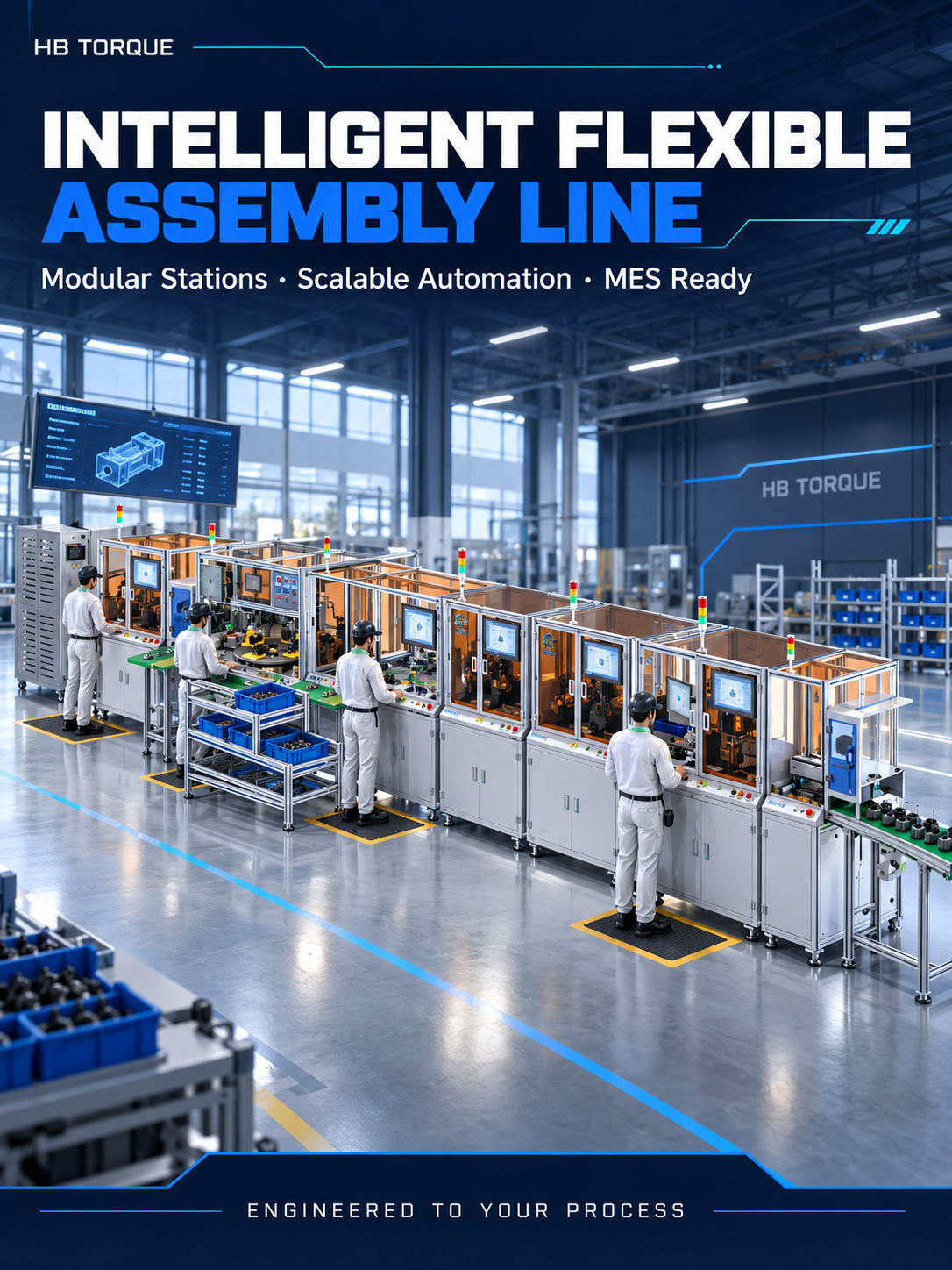

Modular automated production built around your process

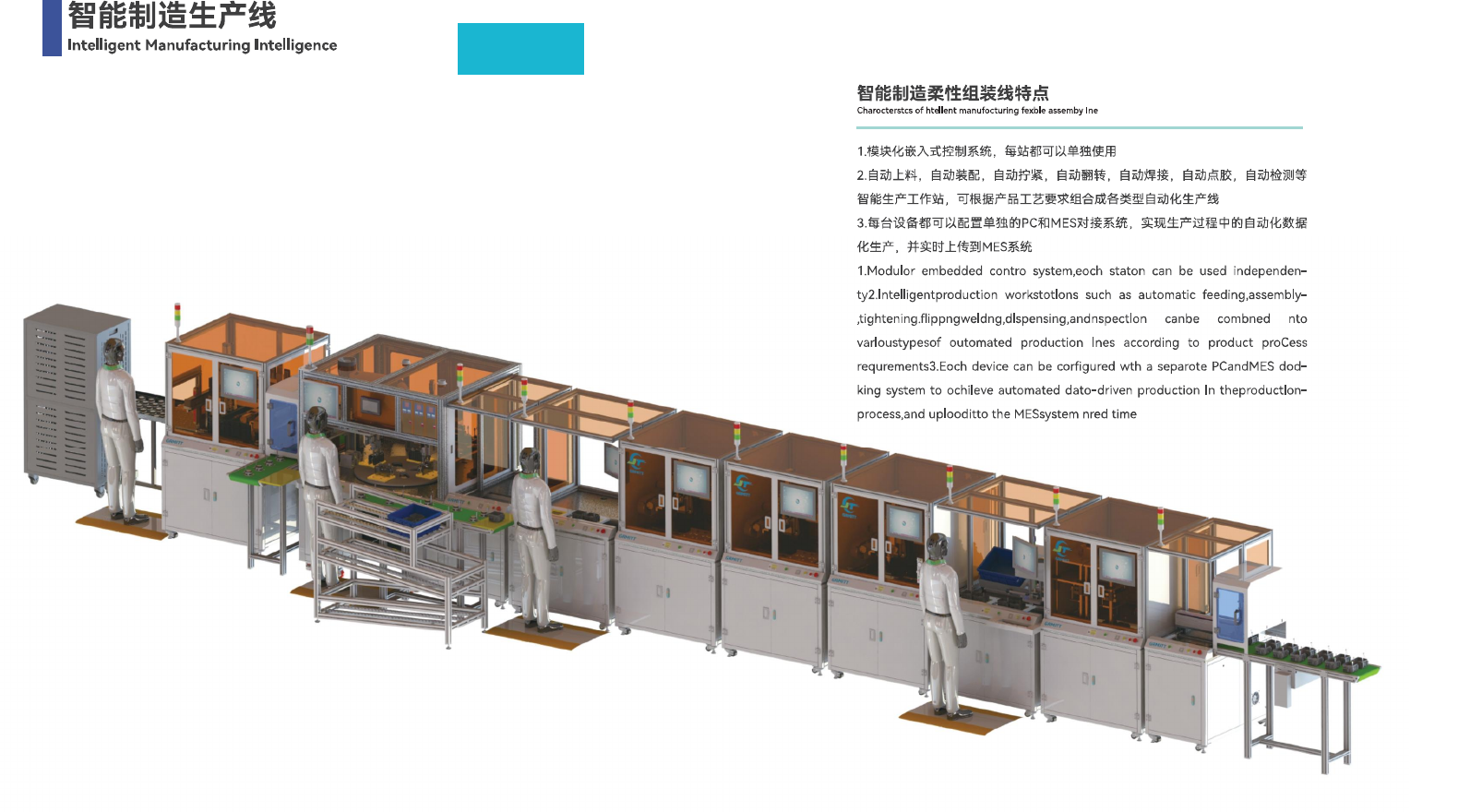

This intelligent flexible assembly line combines independent production stations into one scalable manufacturing system. Each module can be engineered for a specific operation, operated independently when required, and connected by the selected material-transfer method to form a complete line.

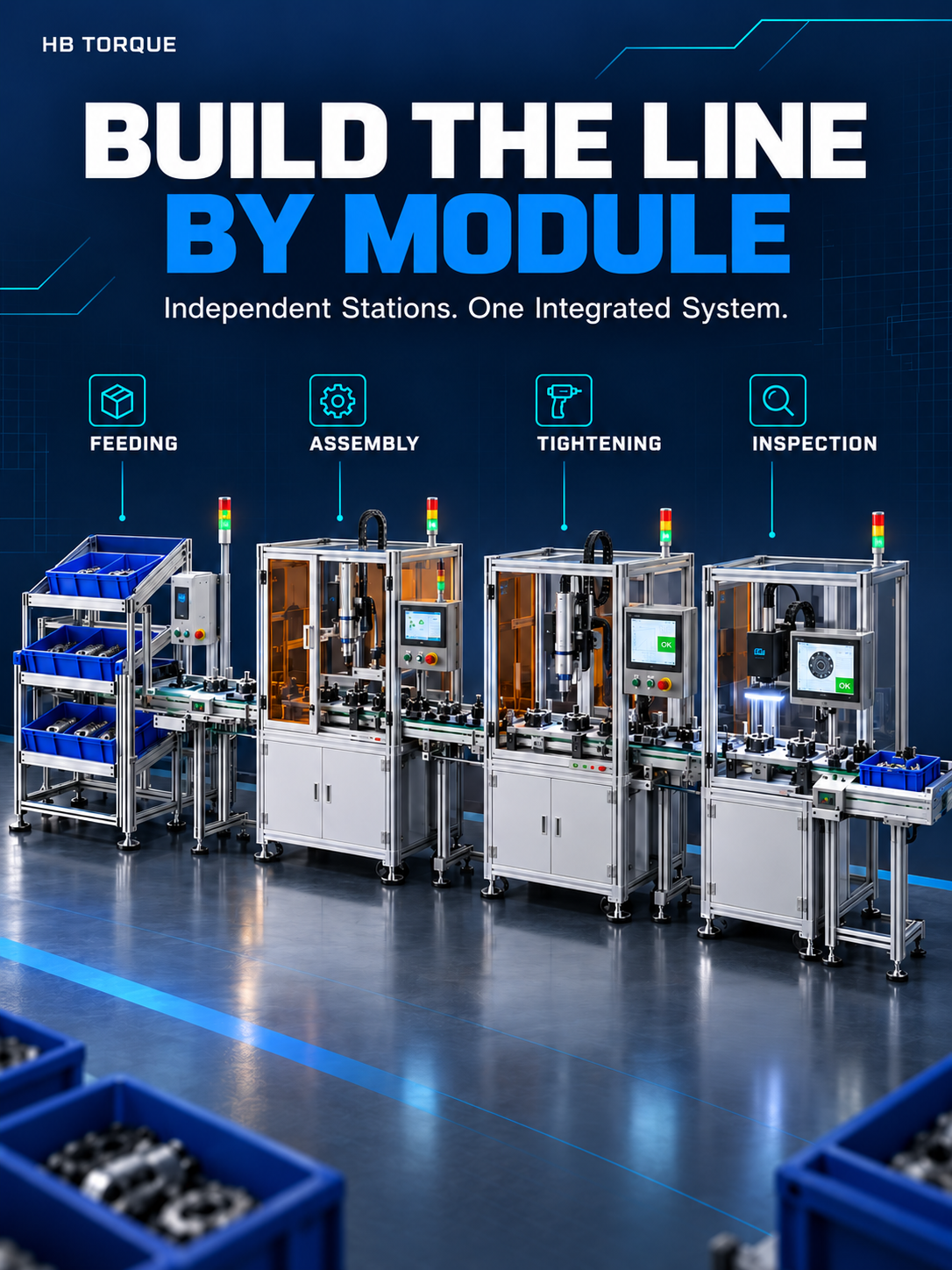

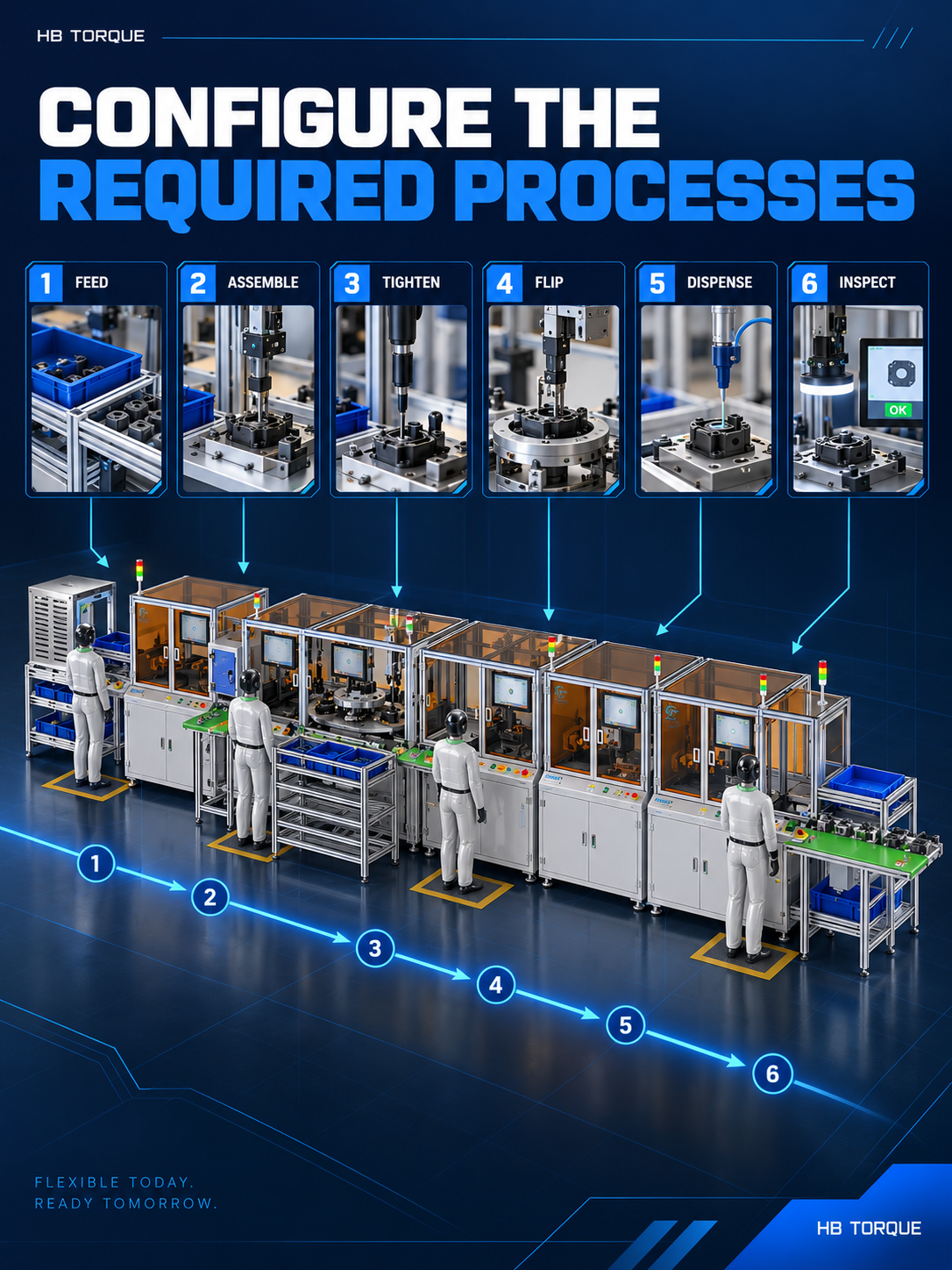

Configurable process modules
- Automatic or operator-assisted material feeding
- Component assembly and press-fit operations
- Torque-controlled tightening and result verification
- Part lifting, rotating or flipping
- Dispensing or adhesive application
- Vision, dimensional or functional inspection
These processes are available by project and are selected from the actual production sequence; no standard line is assumed to include every module.

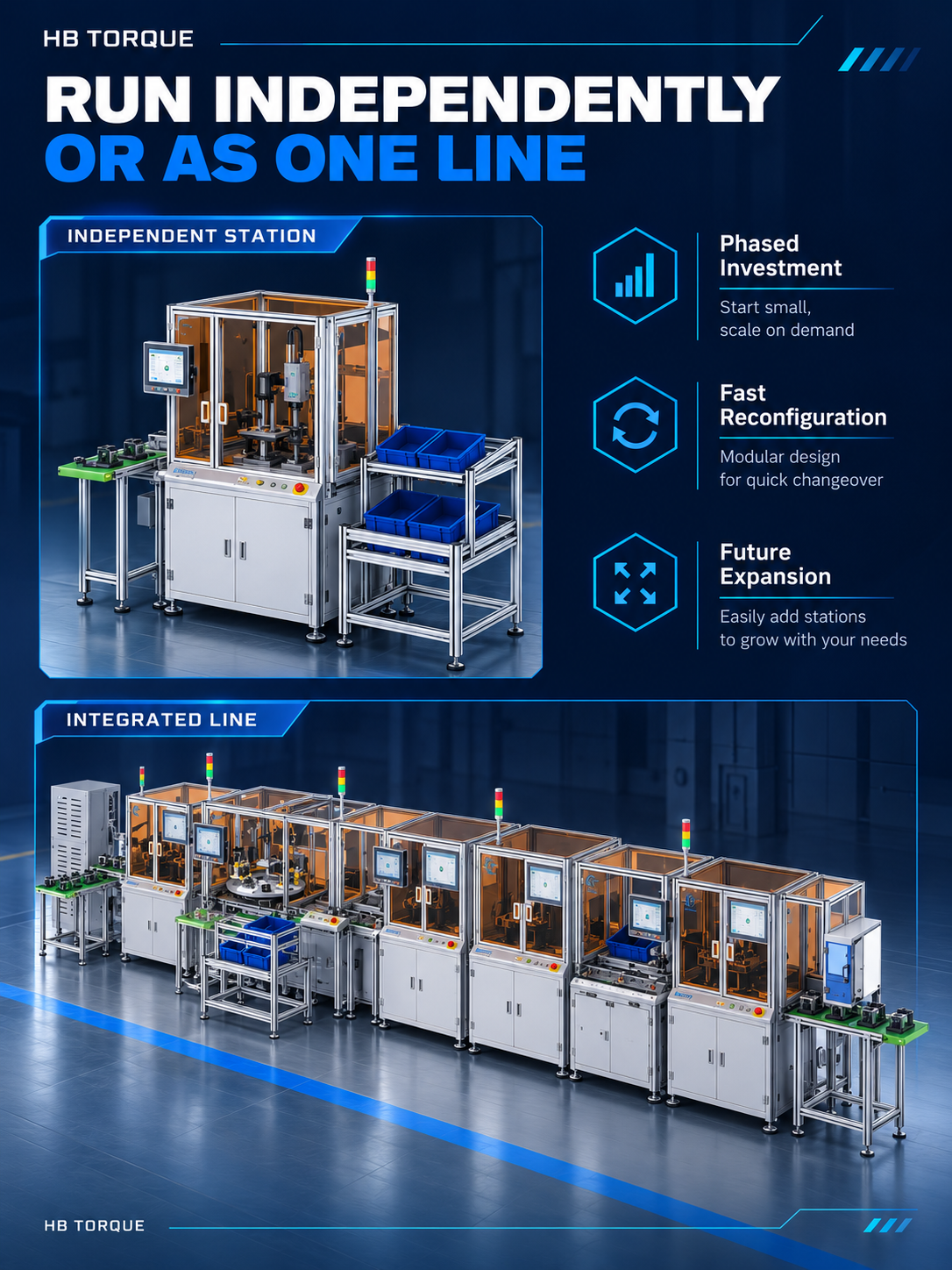

Independent stations or one integrated line
The modular embedded-control architecture supports phased investment and future expansion. A station can first operate as a standalone production cell and later connect with additional feeding, assembly, tightening or inspection modules as output requirements grow.

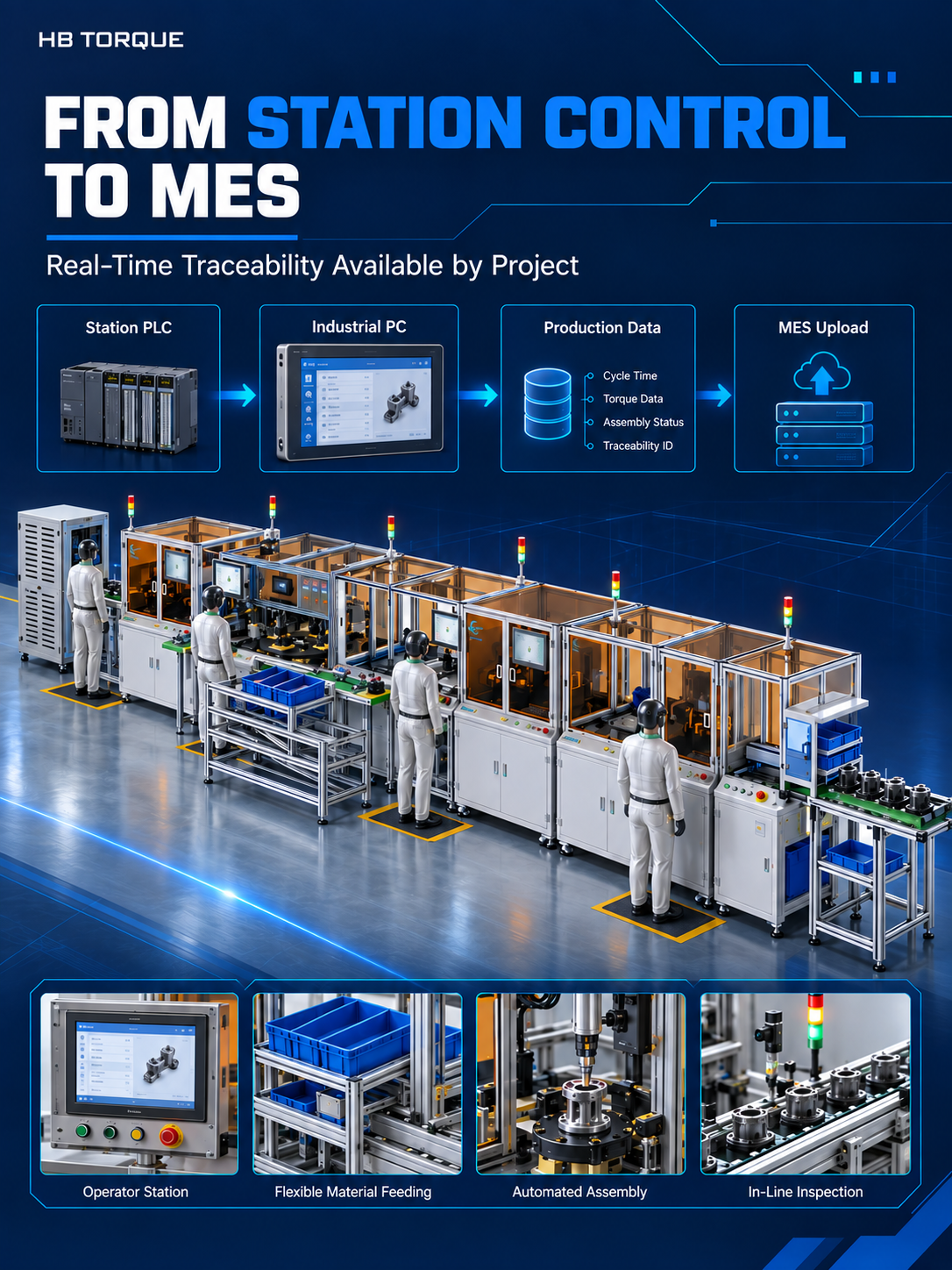

Controls, production data and MES
- Station-level PLC and HMI control
- Optional industrial PC for process guidance and data management
- Cycle-time, tightening-result, assembly-status and traceability records
- MES docking and real-time production-data upload when specified
Typical applications
Suitable for automotive and EV components, electrical assemblies, mechanical subassemblies and other multi-step products requiring configurable automation, controlled tightening and in-line inspection.

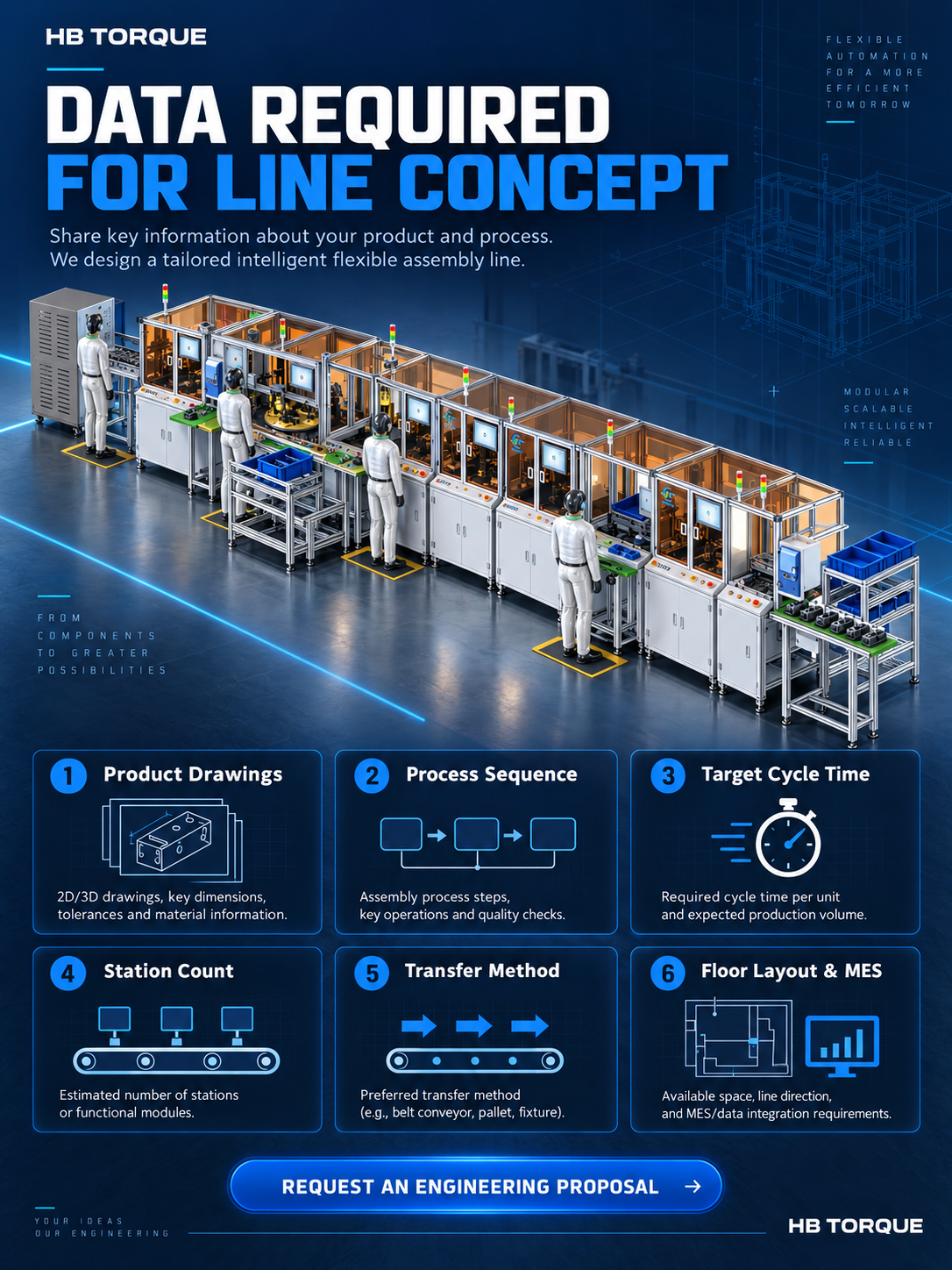

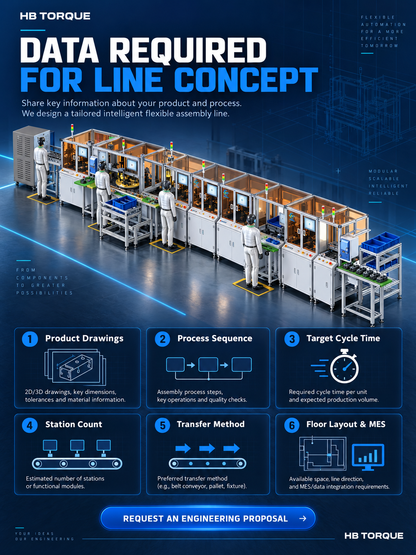

Information required for concept development
- Product drawings and assembly process sequence
- Target cycle time, output and shift pattern
- Required stations and process steps
- Part-feeding and inter-station transfer method
- Quality inspection and traceability requirements
- Available floor layout, utilities and safety constraints
- MES, database or production-data interface requirements
The displayed price is a reference starting configuration. Final pricing depends on the number of stations, tooling, automation processes, safety system, controls, inspection and MES scope.
Frequently asked questions
Can each station operate independently?
Yes. Stations can be configured for standalone operation and later integrated into the complete line.
Can the system upload production data to MES?
Yes, when the project includes the required industrial PC, network interface and MES data specification.
Does every line include all six processes?
No. Feeding, assembly, tightening, flipping, dispensing and inspection are modular capabilities selected according to the application.
Related automation solutions
Compare the robot tightening workstation and desktop assembly workstation, or browse assembly automation systems.
