HB Torque Roll & Reel Handling Industrial Manipulator | Core-Gripping Coil Lifter

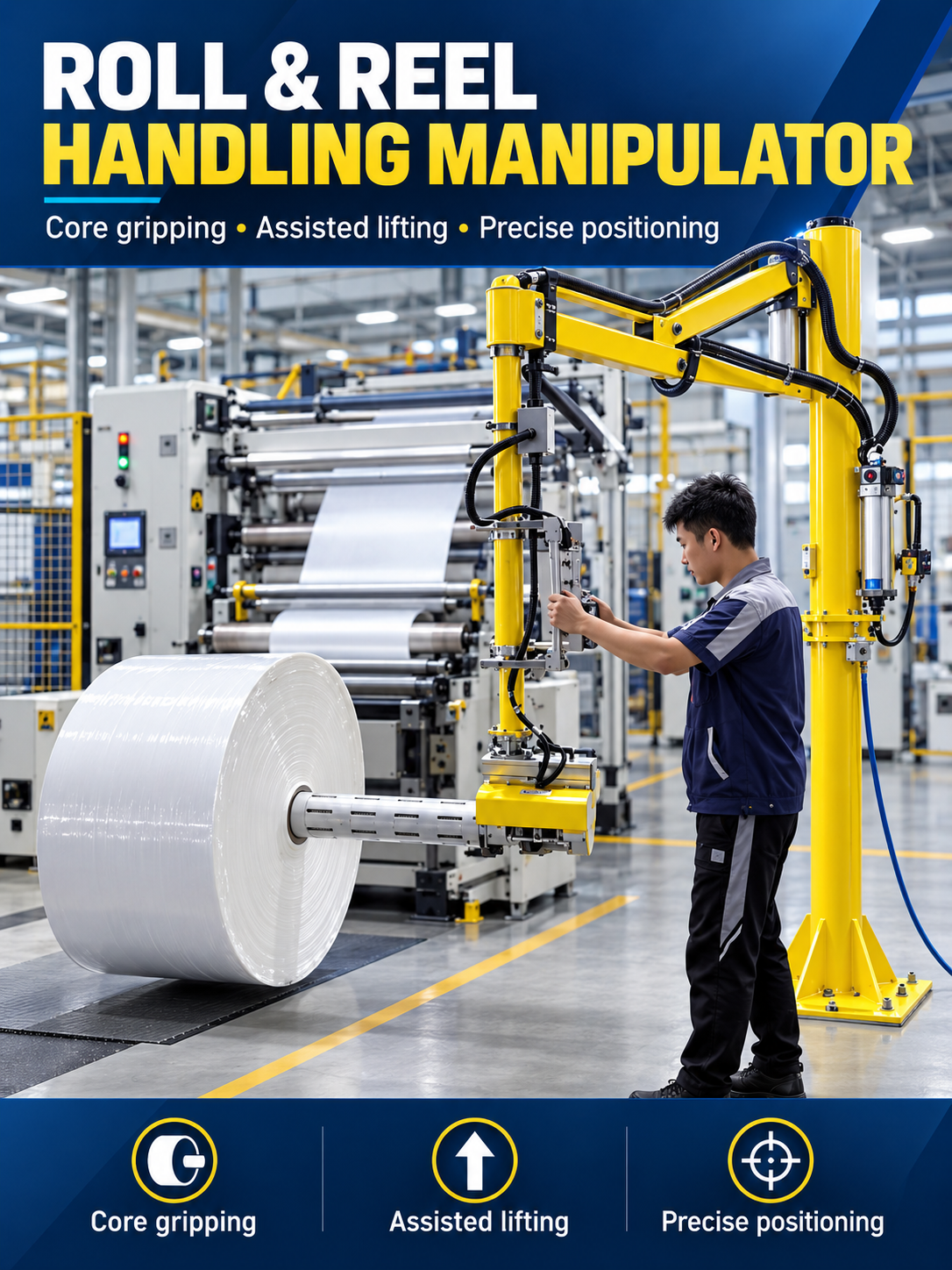

Engineered roll and reel handling system with internal core gripping. The HB Torque roll-handling manipulator uses an articulated assisted-lifting arm and application-specific expanding mandrel to help an operator pick up, lift, orient and accurately position bulky cylindrical rolls.

This is a complete material-handling solution—not a generic lifting arm. The manipulator, core-gripping tooling, rotation function, controls and workstation layout are engineered from the real roll geometry and production process.

Roll & Reel Handling Functions

• Internal gripping through a suitable roll core
• Operator-guided assisted lifting and transfer

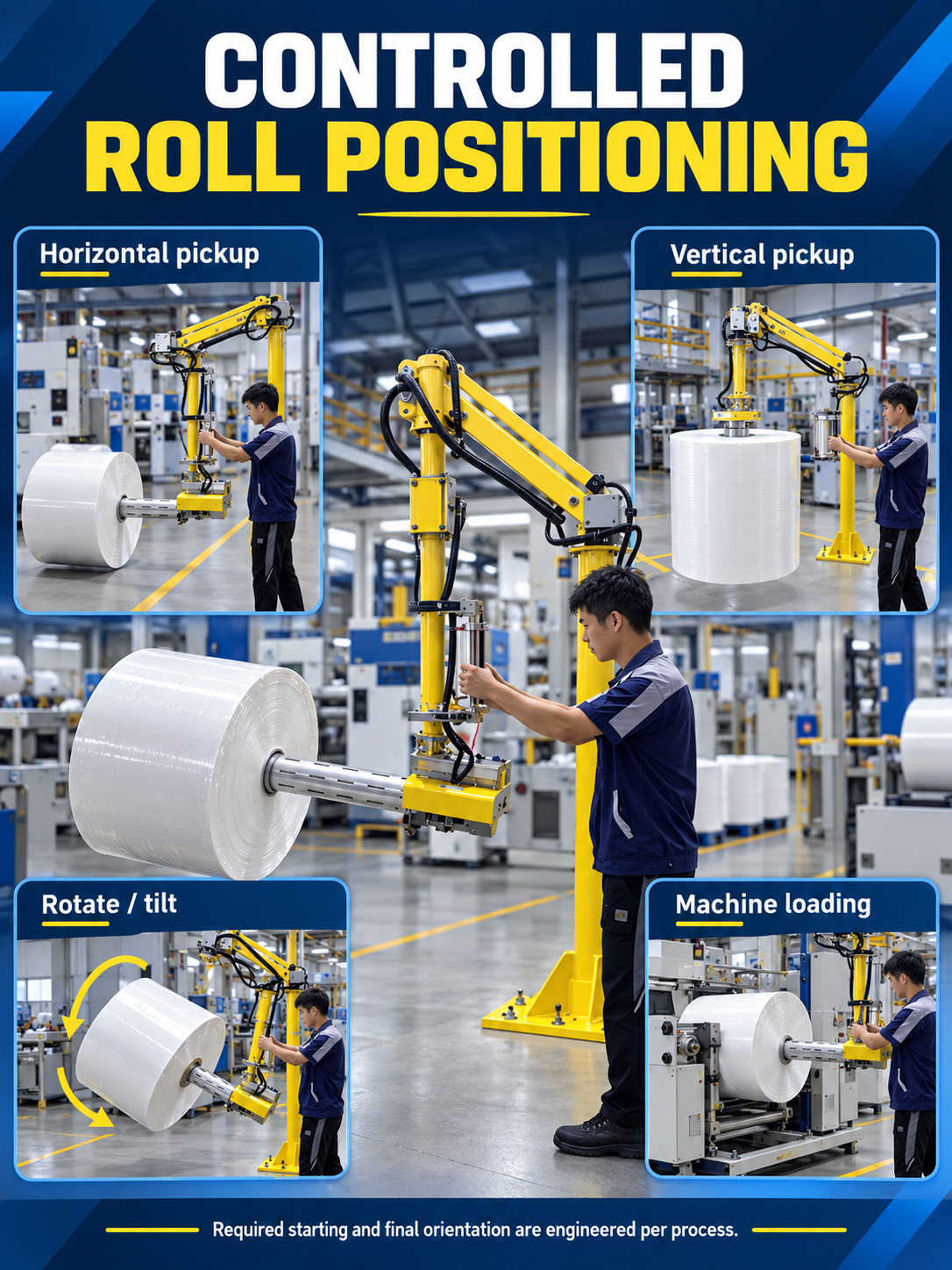

• Horizontal or vertical roll pickup where the application permits
• Rotation, tilting or orientation change when required
• Controlled positioning for machine loading and unloading
• Custom working reach and installation layout

Expanding Core Mandrel Tooling

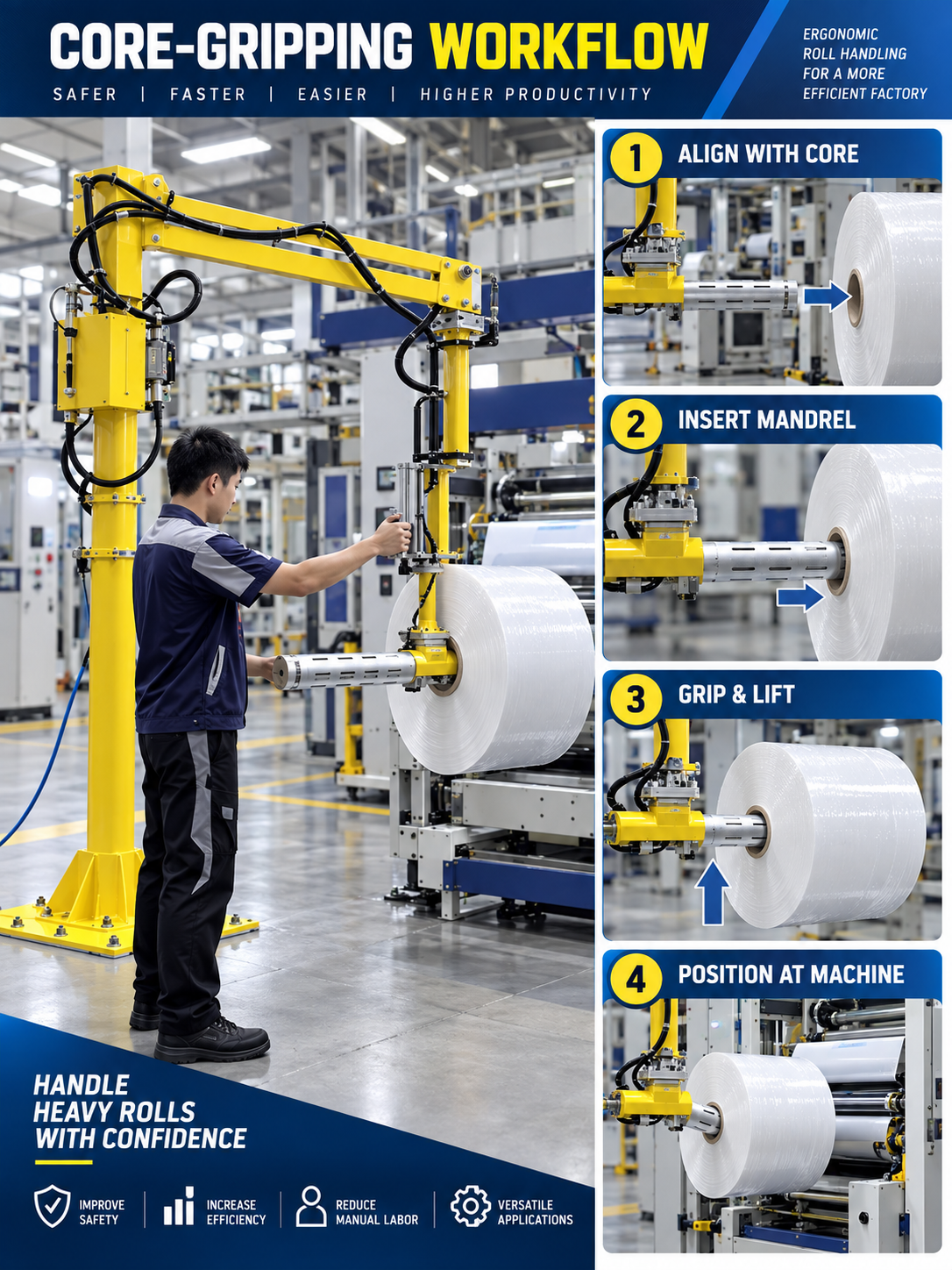

The gripping mandrel is selected from the roll weight, core diameter, core strength, width and required orientation. The mandrel must enter and support the core correctly before the roll is lifted. Alternative tooling can be evaluated when the core cannot be used safely for gripping.

Typical Applications

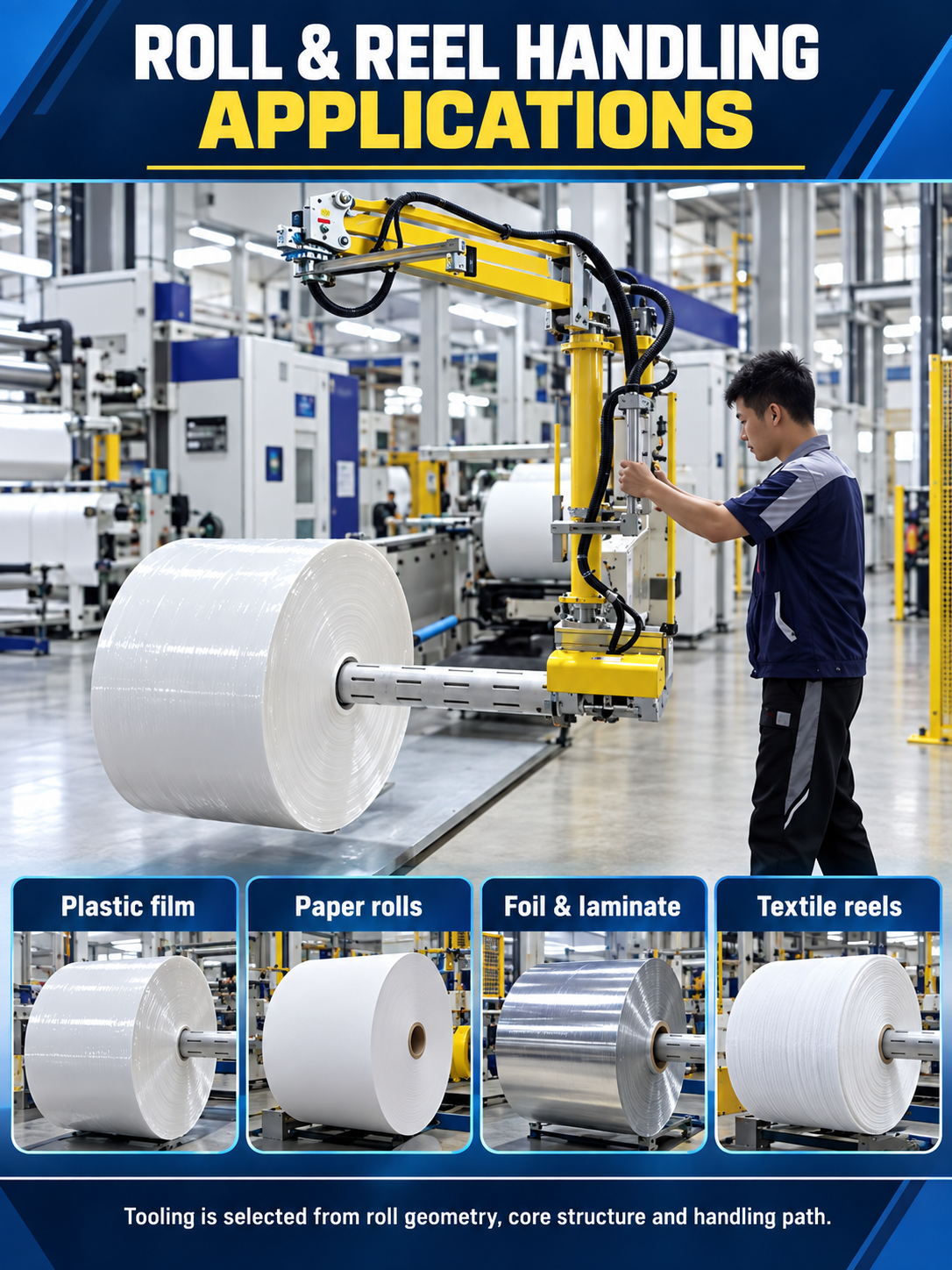

• Plastic film and flexible-packaging rolls
• Paper and label-stock reels
• Foil, laminate and coated-material rolls
• Textile and nonwoven reels
• Loading and unloading converting, winding or production equipment

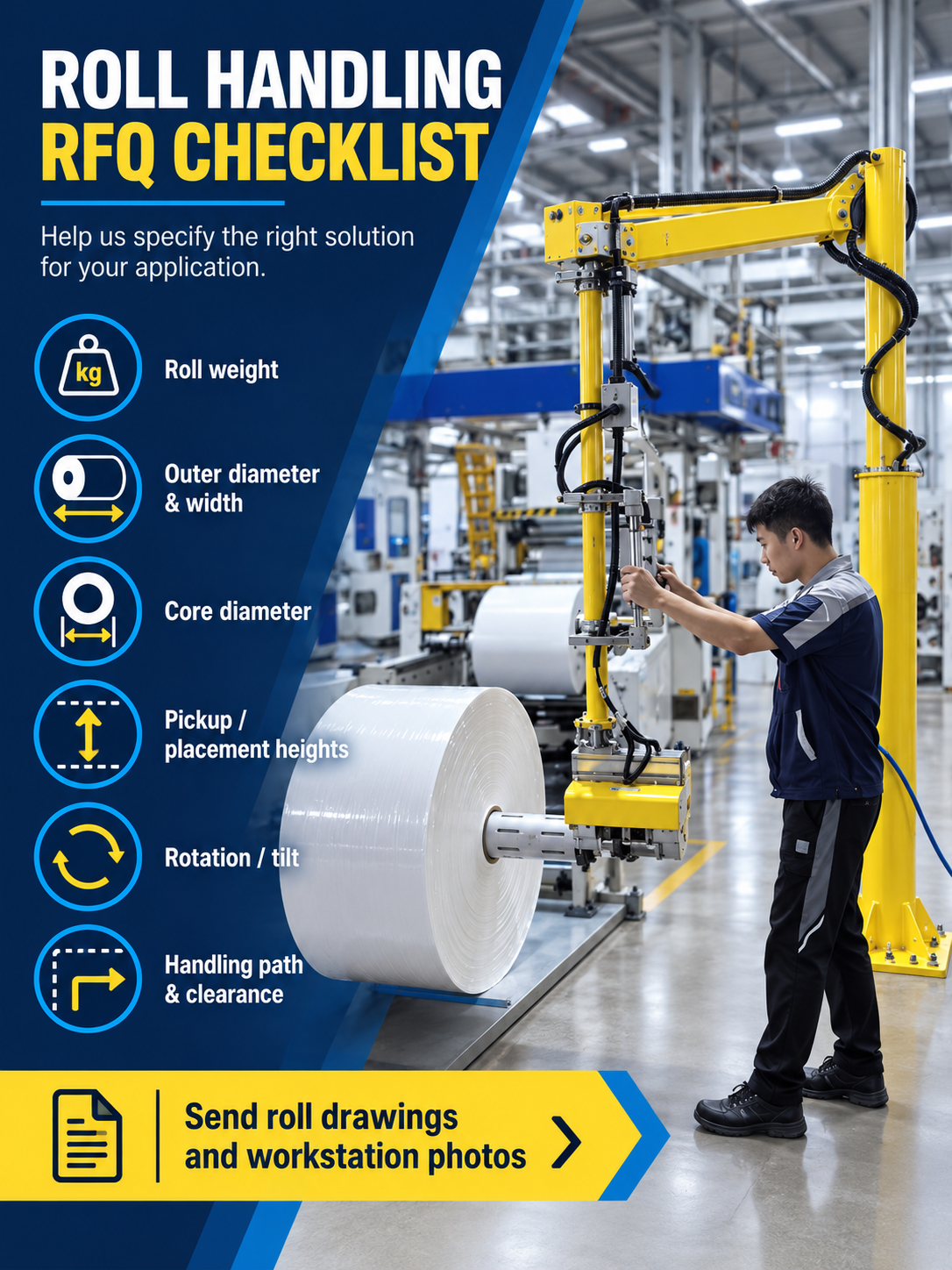

Engineering Information Required for Quotation

• Roll weight, outer diameter and width
• Core inner diameter, material and condition
• Whether the core can be used as the gripping point
• Pickup and placement heights
• Starting and final roll orientation
• Required rotation, tilt or change of orientation
• Handling path, machine opening and nearby clearance
• Roll and workstation drawings or photos

Final arm configuration, tooling, controls, safety functions, price and delivery scope are confirmed after application review.

Related Handling Solutions

See roll handling solutions, review the roll and reel handling case study, or compare the YF Series hard-arm manipulator and vacuum suction cup manipulator.

Request a roll-handling engineering proposal
