HB Torque YEBO B010 Automatic Screw Feeding Module Tightening Workstation
HB Torque YEBO B010 Automatic Screw Feeding Module Tightening Workstation
ENGINEERED TO ORDER
Request an Engineering Review
Send your workpiece, tightening-tool or process details. Our team will review torque, reach, movement, positioning and traceability requirements.

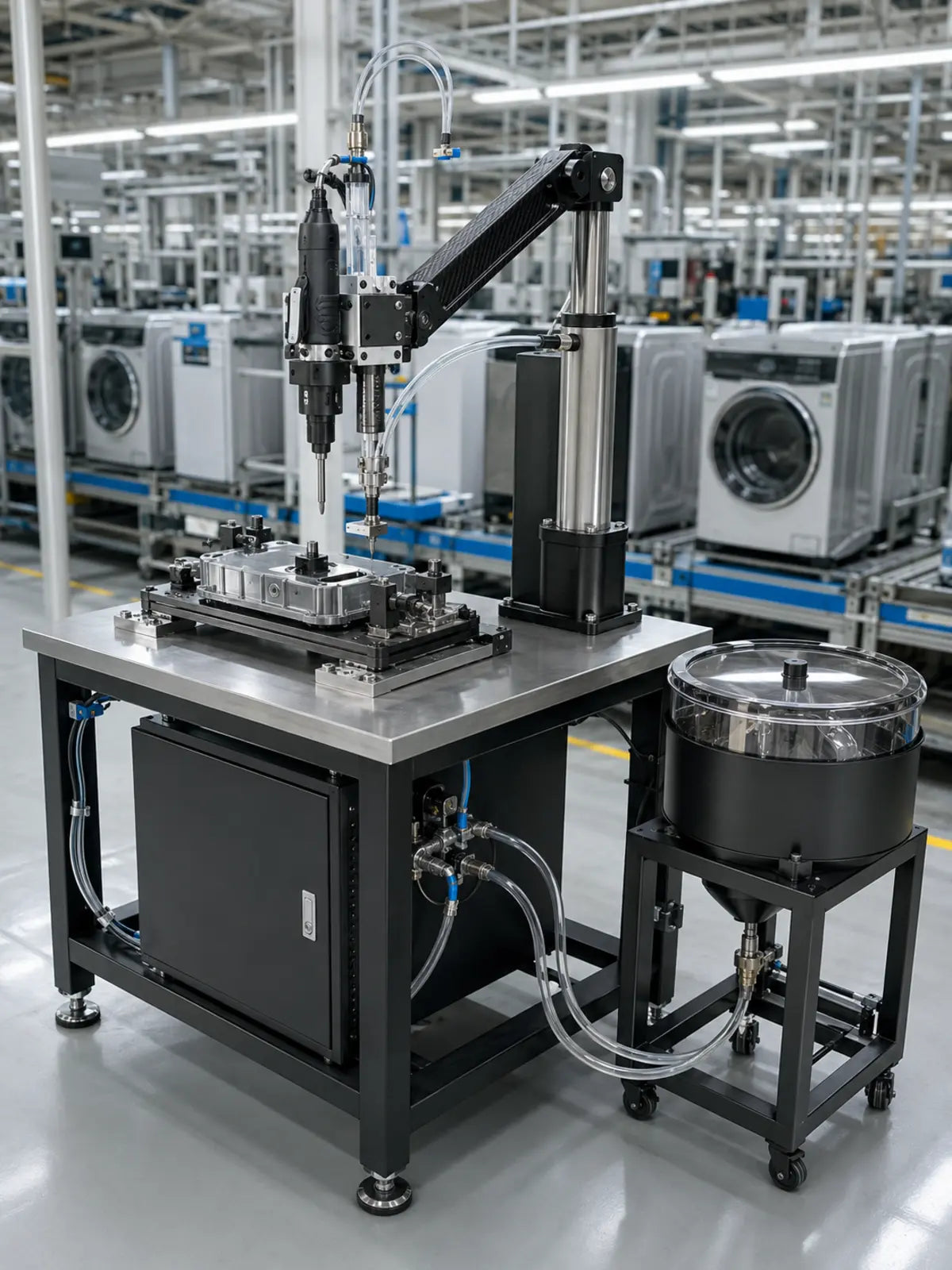

A complete engineered automatic screw-feeding and tightening workstation built around the YEBO B010 feeding-module concept. The YEBO catalog identifies the product as B010送钉模组 (B010 screw/fastener feeding module). HB Torque combines the feeding hardware with a rigid torque-reaction arm, mechanical tool clamp, workbench, workpiece fixture and optional position-control functions for repeatable assembly.
Catalog-defined B010 equipment
| Catalog item | Workstation role |
|---|---|
| Vertical screw-feed / delivery head | Delivers fasteners to a fixed or guided vertical tightening point. |
| Handheld feed-and-tightening head | Supports operator-guided fastening when the application requires a handheld layout. |
| Feeder / hopper assembly | Supplies and orients fasteners for delivery to the tightening point. |
| Enclosed control cabinet | Houses the catalog-shown feeding controls and operator display. |
Catalog data boundary
The supplied YEBO catalog page does not publish an exact B010 submodel code, numerical torque rating, dimensions or configuration matrix. HB Torque therefore does not assign unsupported values. Final fastening torque, arm capacity, reach, feeder arrangement and tool interface are selected from the approved application data and the customer-owned tightening tool.
HB Torque workstation scope
- Mechanical integration of the YEBO B010 screw-feeding module, feeder and approved control hardware
- Rigid torque-reaction arm and application-specific mechanical tool clamp
- Industrial workbench and dedicated workpiece fixture
- Non-load-bearing pneumatic and fastener-delivery routing
- Optional position sensing, sequence interlocks and operator guidance
- Application engineering for screw geometry, presentation, reach, torque reaction and cycle sequence
Safe mechanical support
The tightening tool load is carried by the rigid arm and mechanical clamp. Pneumatic tubing, feed tubing and electrical cables are routed only for their intended service; they do not support the tool. The workstation does not use hooks, chains, spring balancers or load-bearing cables.
Tool and controller notice
This listing is for an HB Torque engineered workstation compatible with the YEBO B010 screw feeding module and a customer-owned third-party tightening tool. The third-party tightening tool, its controller, batteries and related accessories are not included unless separately specified in the approved quotation and lawfully supplied. The exact B010 feeding package is confirmed in the quotation.
Request an engineered quotation or explore more assembly automation workstations.
