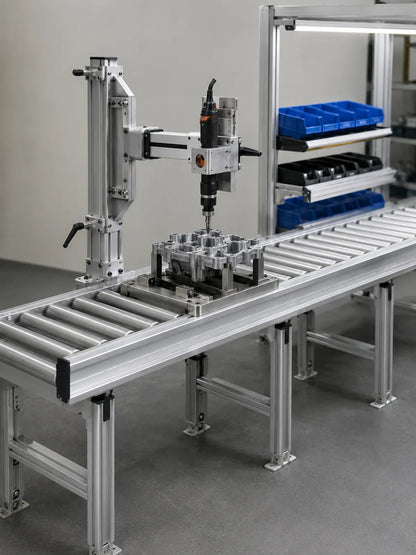

• YEBO B028 roller conveyor assembly workstation with rigid torque arm, mechanical clamp and pallet fixture
  • YEBO B028 conveyor fastening station with metal carrier fixture, aluminum side panels and rigid tool support
  • YEBO B028 modular long roller conveyor with assembly pallet, workbench station and rigid reaction arm

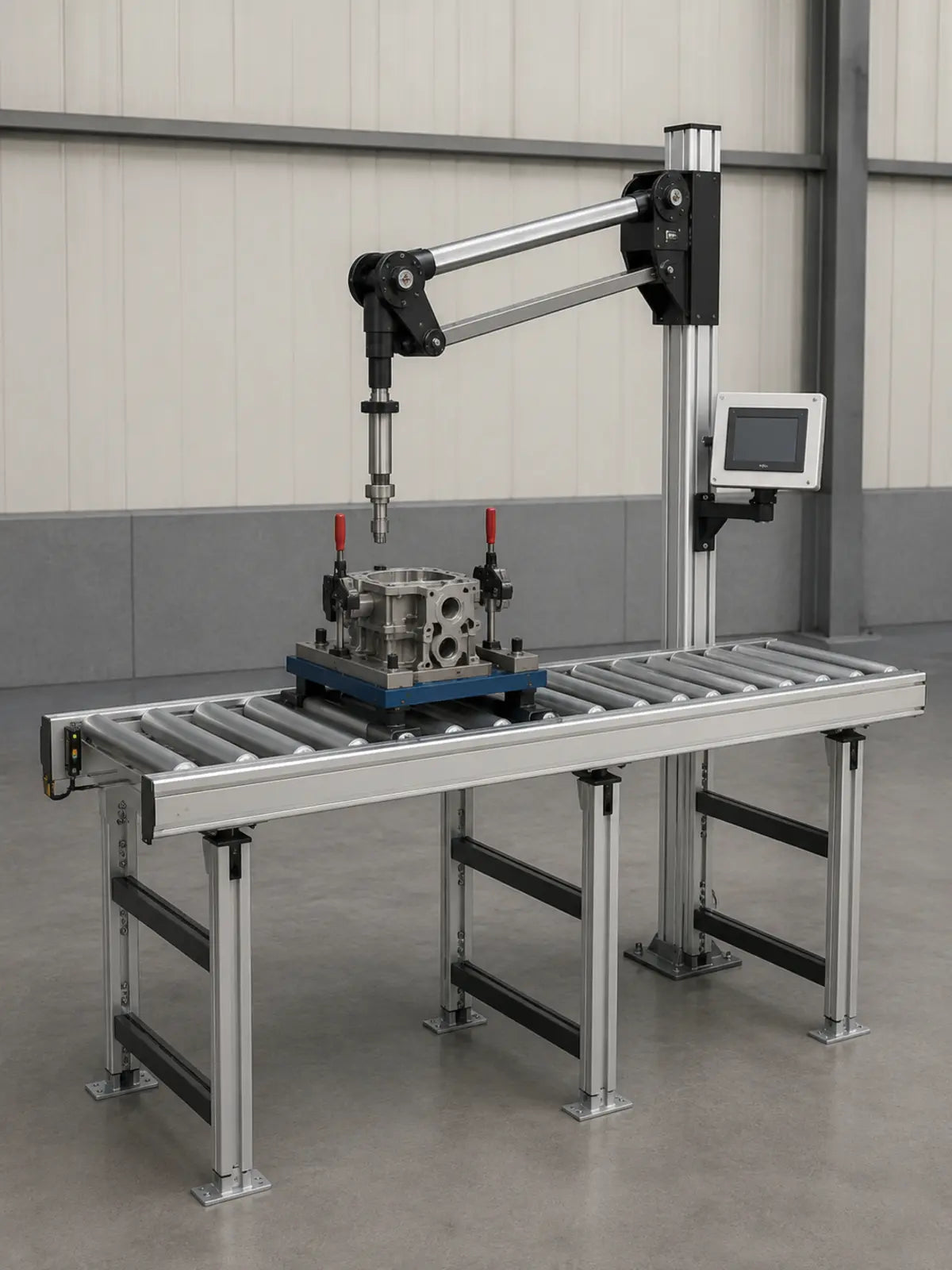

  • YEBO B028 conveyor workstation with rigid torque arm, fixture sensors and optional position control
1 4

HB Torque YEBO B028 Modular Roller Conveyor Assembly Workstation

HB Torque YEBO B028 Modular Roller Conveyor Assembly Workstation

ENGINEERED TO ORDER

Request an Engineering Review

Send your workpiece, tightening-tool or process details. Our team will review torque, reach, movement, positioning and traceability requirements.

Request a Quote

Configurable YEBO B028 roller conveyor workstation for controlled assembly flow. HB Torque integrates the catalog B028 Conveyor Line with a rigid torque-reaction arm, mechanical tool clamp, workholding fixture and optional position control to form a complete engineered assembly workstation.

Catalog model and configuration

Catalog product B028 Conveyor Line (B028输送线)
Catalog model example YBA-B028-BF410-P125-L2000-LL-H750
Line/body inner-width codes (mm) 310 / 360; 410 / 460; 510 / 560; 610 / 660; 710 / 760; 810 / 860; 910 / 960; 1010
Roller pitch (mm) 55, 75, 100, 125
Length (mm) 975, 990, 1000, 1950, 1980, 2000, 2970, 3000
Side-panel combination LL, HH, LH-HL
Line height 750 mm; customizable

The model code uses YB for YEBO, A for Automation and B028 for Conveyor Line, followed by the selected width, roller pitch, length, side-panel combination and height.

HB Torque workstation scope

  • Modular roller conveyor selected from the catalog configuration
  • Rigid torque-reaction arm and mechanical tightening-tool clamp
  • Metal carrier or pallet fixture tailored to the workpiece
  • Optional fixture sensing, position control and process interlocking when specified

Catalog data boundary: the catalog pages do not state conveyor load capacity, conveyor speed, drive type or tightening torque. These values are determined during engineering review from the workpiece, flow, tool and fastening application.

Supply boundary: HB Torque supplies the engineered workstation. YEBO or other third-party tightening tools, controllers, sensors, batteries and accessories are not included unless separately specified and lawfully supplied. The work area uses rigid mechanical support; hooks, chains, spring balancers and load-bearing cables are not part of this configuration.

Request an engineered quote or browse Assembly Automation.
