YEBO YBA-B004 Modular Button Box Tightening Workstation

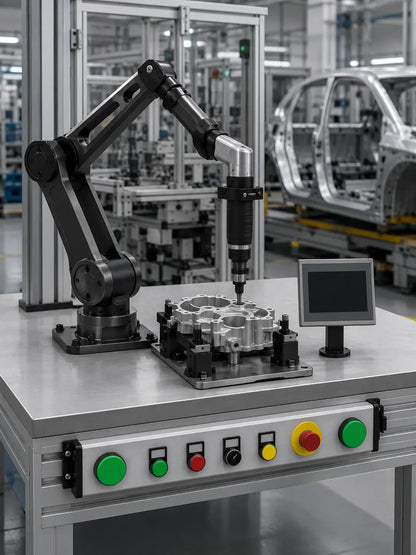

HB Torque integrates the YEBO YBA-B004 button box into a complete engineered tightening workstation. The solution combines a rigid torque reaction arm, positive mechanical tool clamp, industrial workbench, application fixture and operator controls so a customer-owned tightening tool can be deployed as one coordinated assembly cell.
This listing is for the engineered workstation, not a stand-alone third-party tightening tool. The customer’s tightening tool and its controller are not included unless they are separately and lawfully quoted. The YBA-B004 operator box is configured as part of the workstation scope.
Workstation scope
- Rigid articulated torque reaction arm sized for the selected application
- Machined clamp engineered around the customer’s tool body and output geometry
- Workbench, fixture interface and ergonomic operator layout
- YEBO YBA-B004 modular pushbutton box with configurable pushbuttons, selector switches, indicator lamps and emergency-stop control
- Optional program selection, tower-light position, numeric display and position-control integration
Catalog model options
| Catalog model | Panel form and catalog configuration |
|---|---|
| YBA-B004-LM01 | Vertical panel; customizable buttons, knobs, indicator lamps and emergency-stop; tower-light mounting and 12-position program selection available |
| YBA-B004-HM01 | Horizontal panel; modular layout with customizable ring indicator |
| YBA-B004-LM02 | Vertical panel; customizable numeric display and modular controls |
| YBA-B004-A500K7-40-85-50-85 | Long strip panel example: 500 mm panel, 7 positions and catalog spacing code; buttons are not included by default and may be customized |
YBA-B004 ordering logic
The catalog uses HM for horizontal and LM for vertical panel forms, 01/02 for the default panel layout, a default 5 m cable or optional 10 m cable, and an optional customer-specific code. The A-type long panel uses panel length, hole quantity and spacing dimensions in its model code.
Torque capacity
The YEBO catalog does not assign an independent torque rating to the YBA-B004 button box. Final workstation torque capability is determined by the selected rigid reaction arm, mechanical clamp, fixture and the customer-owned tightening tool. HB Torque verifies these interfaces during application review.
Request a configured quote
Send the tightening-tool brand and exact model, controller I/O, required button functions, preferred HM/LM/A panel form, cable length, fastener torque, reach envelope and fixture drawing. We will return a workstation configuration and quotation.
