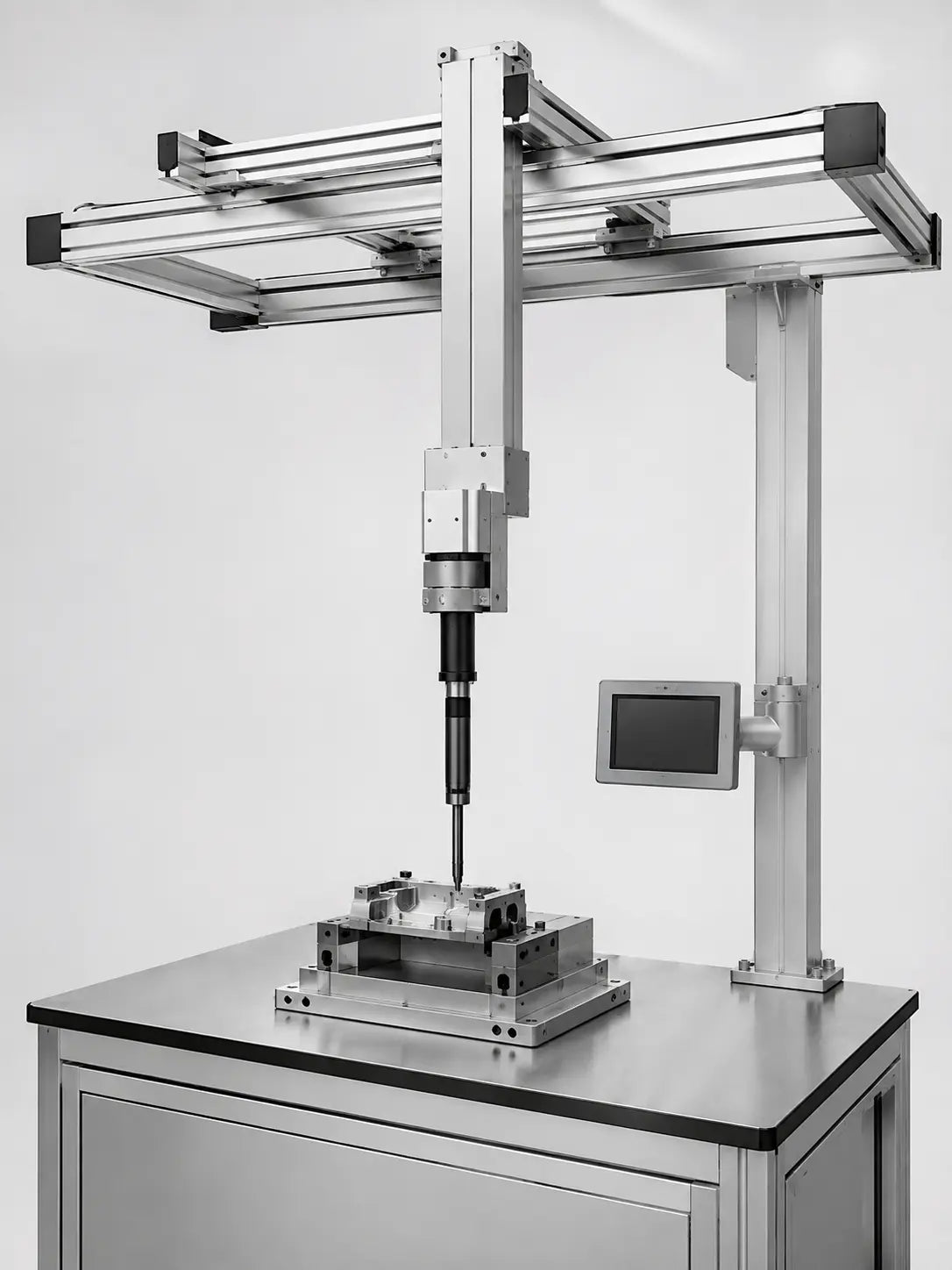

  • HB Torque YBA-B007 lift arm workstation with optional X-Y-Z position verification and blank HMI
1 4

HB Torque YEBO YBA-B007 Lift-Assist Torque Arm Workstation

HB Torque YEBO YBA-B007 Lift-Assist Torque Arm Workstation

ENGINEERED TO ORDER

Request an Engineering Review

Send your workpiece, tightening-tool or process details. Our team will review torque, reach, movement, positioning and traceability requirements.

Request a Quote

The HB Torque YEBO YBA-B007 Lift-Assist Torque Arm Workstation integrates the catalogued YBA-B007 lifting assist arm with a rigid torque-reaction structure, mechanical tool clamp, industrial workbench and application fixture. It is engineered around the customer's existing tightening tool to reduce operator load and control reaction torque in vertical or horizontal fastening.

YBA-B007 lift-assist arm integration

  • Original catalog product term: B007 Lift-Assist Arm (B007升降助力臂).
  • Maintenance-free standardized arm with application-specific length.
  • Compatible with the YEBO B031 rail system for an extended X-Y working envelope.
  • Optional YEBO B046 draw-wire sensors support X/Y/Z position verification.
  • Mechanical adapter and clamp are engineered to the customer's tool geometry and fastening posture.

Catalog model and reaction-torque data

YEBO model Vertical anti-torque Horizontal anti-torque Default load
YBA-B007-A015HL-H-L 10 N·m 15 N·m 2 kg
YBA-B007-A100HL-H-L 60 N·m 100 N·m 10 kg
YBA-B007-A200HL-H-L 160 N·m 250 N·m 20 kg
YBA-B007-A300HL-H-L 300 N·m 500 N·m 40 kg
YBA-B007-A500HL-H-L 500 N·m 1000 N·m 70 kg

For smaller-torque applications, the catalog recommends X/Y travel below 1 m with vertical reaction torque below 60 N·m and horizontal reaction torque below 100 N·m. High-torque, long-reach configurations use the full YBA-B007 range with an external rail and custom X/Y/H/L dimensions.

Mechanical interface options

Catalogued examples include YBA-B007-J001D (27–50 mm clamp), YBA-B007-J001 (30–55 mm clamp), 90-degree J001DT/J001T adapters, YBA-B007-2AJ001 (25–40 mm clamp), and rotating-flange options. Final selection is confirmed from tool drawing, torque direction, socket access and cycle sequence.

What HB Torque supplies

  • Rigid lift-assist torque reaction arm and mounting structure
  • Mechanical clamp matched to the customer-owned tightening tool
  • Industrial workbench, fixture and guarding as required
  • Optional position sensing, HMI guidance and tightening-system I/O integration

Important: the third-party tightening tool, controller and related accessories shown or referenced are not included in the workstation quotation unless separately and lawfully supplied. HB Torque supplies the engineered workstation that supports and integrates the customer's tool.

Request a configuration review and quotation with your tool brand, exact model, torque, orientation, reach and fixture drawing.
