DRA-F Folding Desktop Torque Reaction Arm | 5-100 Nm

Name: DRA-F Folding Desktop Torque Reaction Arm | 5-100 Nm
Brand: Hbtorque

$2,900.00 USD

Sale Engineered to Order

Need a DRA-F model recommendation? Send the tightening-tool brand and model, normal and maximum torque, tool weight, bolt positions, required reach and workstation footprint. Request an engineered configuration.

DRA-F Folding Desktop Torque Reaction Arm

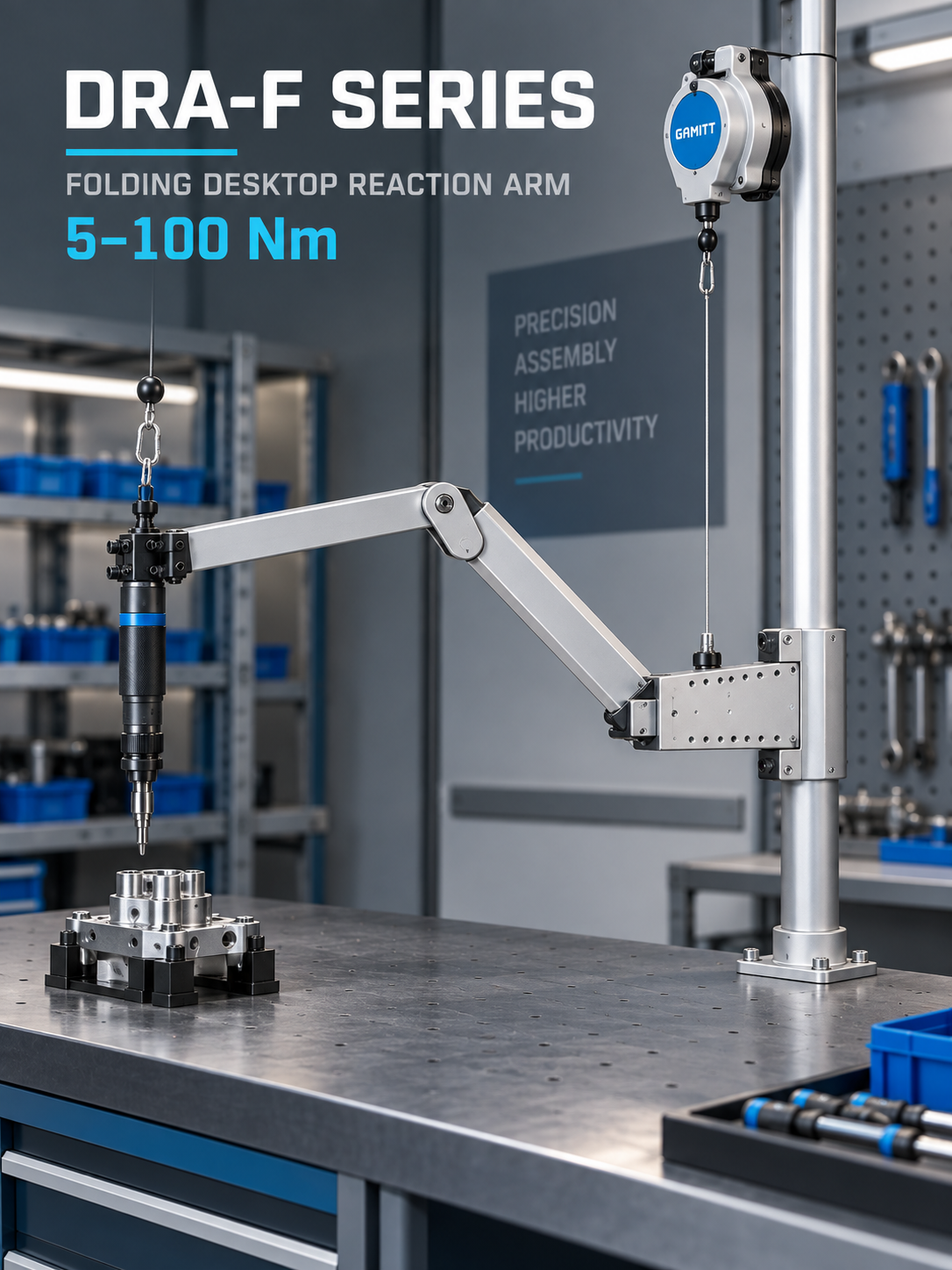

The GAMITT DRA-F Series is a compact bench-mounted folding torque reaction arm for powered industrial fastening. Its articulated two-section layout folds around the workpiece, helping the operator reach bolt positions in different directions while transferring reaction torque into the arm and workstation structure.

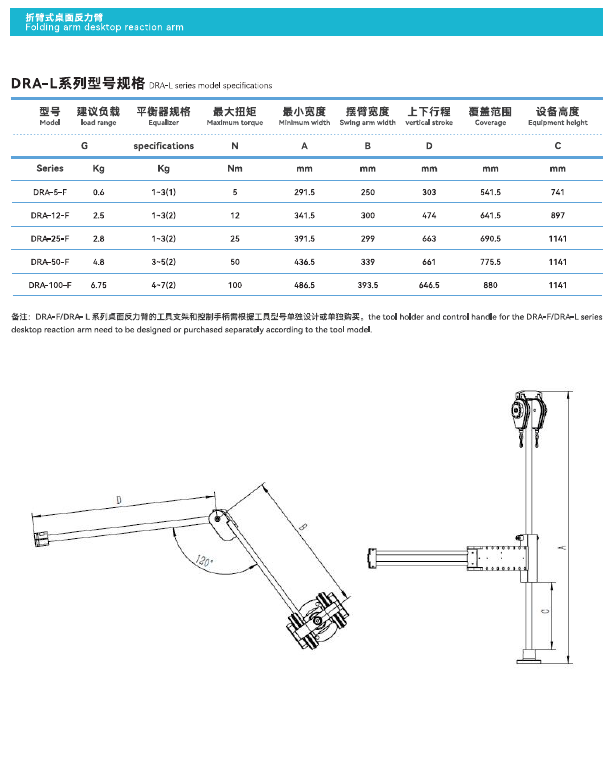

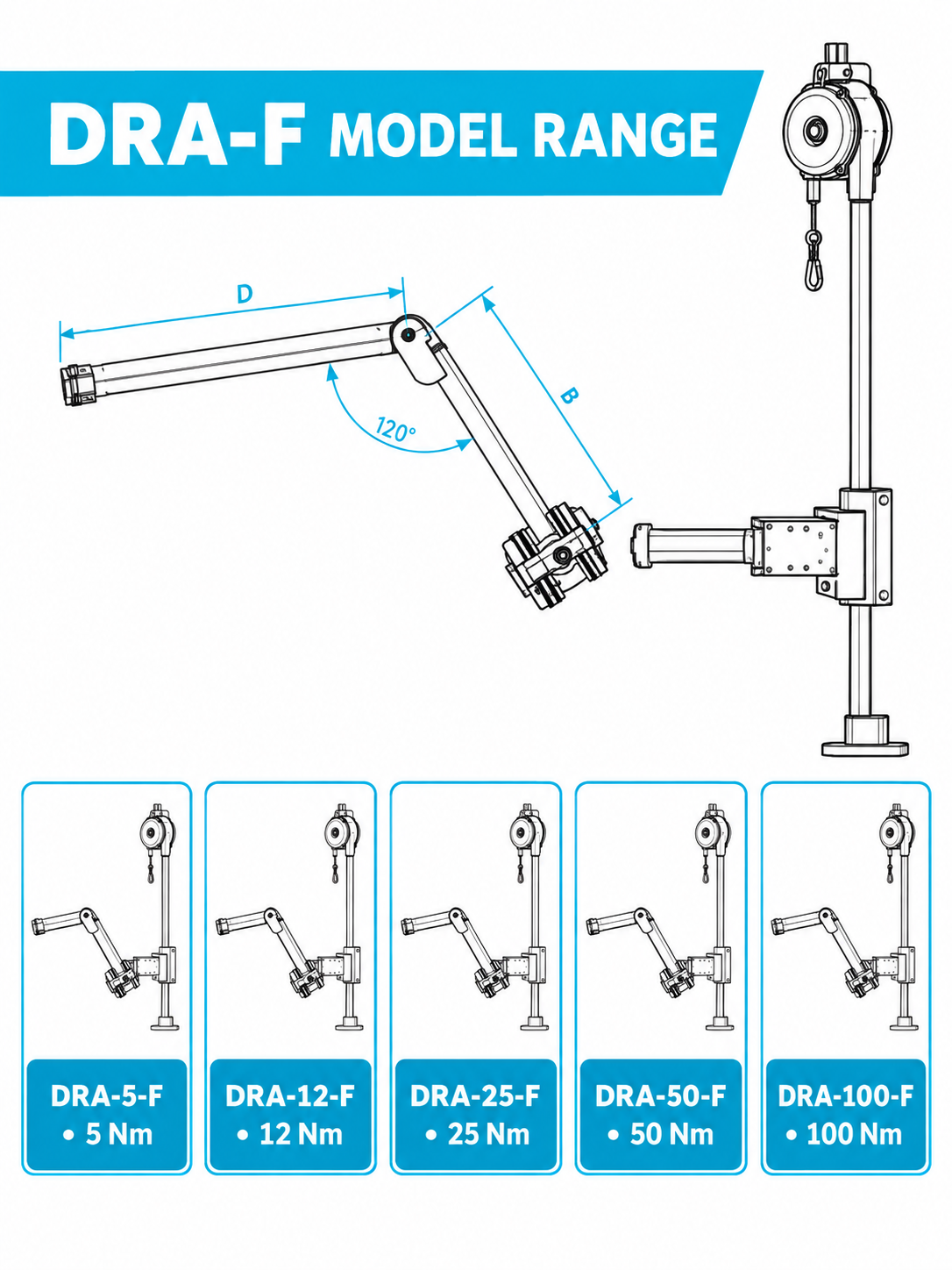

DRA-F Model Specifications

Model	Recommended load	Equalizer	Max. torque	Minimum width	Swing-arm width	Vertical stroke	Coverage	Equipment height
DRA-5-F	0.6 kg	1-3 (1)	5 Nm	291.5 mm	250 mm	303 mm	541.5 mm	741 mm
DRA-12-F	2.5 kg	1-3 (2)	12 Nm	341.5 mm	300 mm	474 mm	641.5 mm	897 mm
DRA-25-F	2.8 kg	1-3 (2)	25 Nm	391.5 mm	299 mm	663 mm	690.5 mm	1141 mm
DRA-50-F	4.8 kg	3-5 (2)	50 Nm	436.5 mm	339 mm	661 mm	775.5 mm	1141 mm
DRA-100-F	6.75 kg	4-7 (2)	100 Nm	486.5 mm	393.5 mm	646.5 mm	880 mm	1141 mm

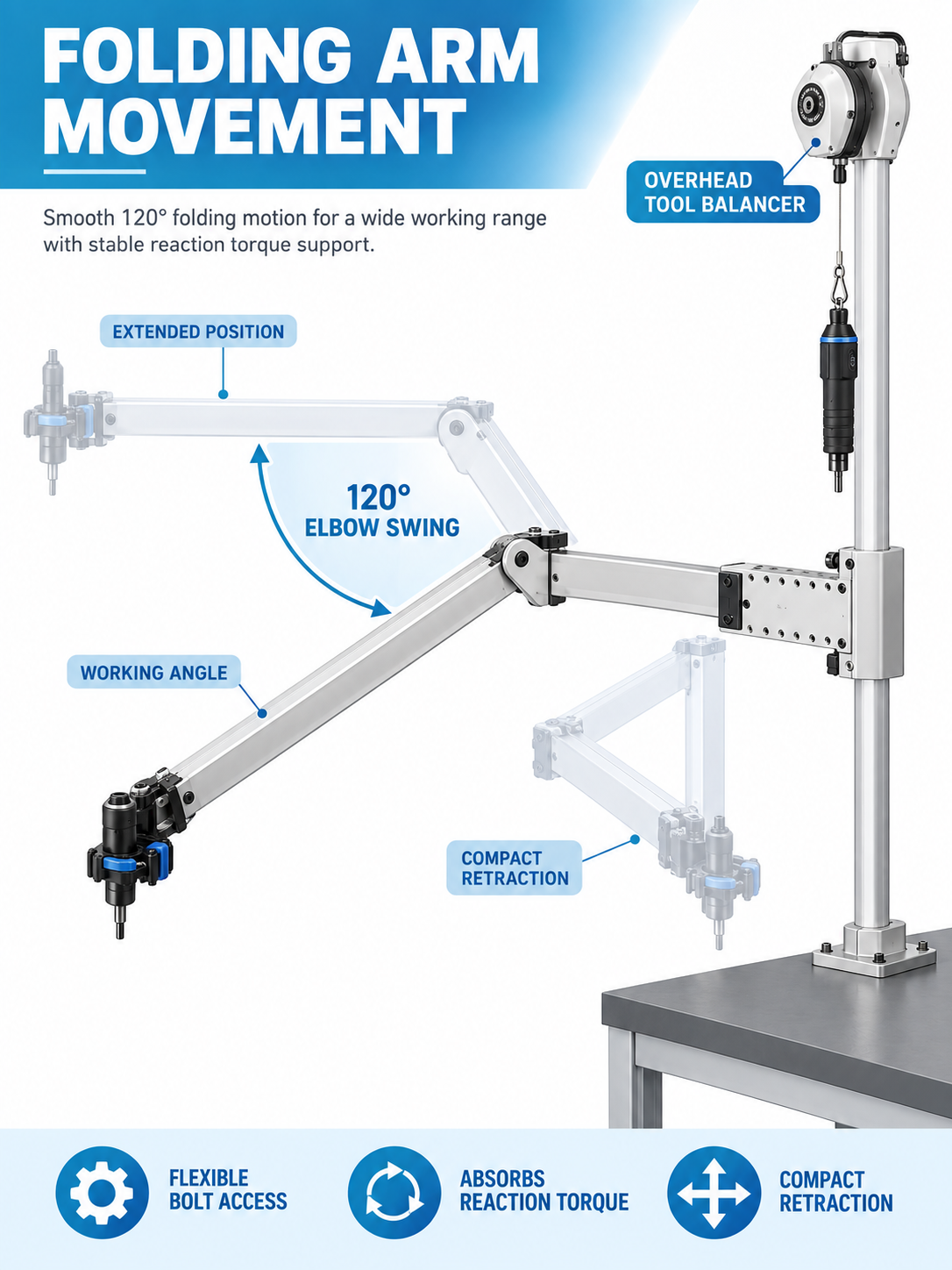

Folding Movement for Compact Workstations

Two-section arm folds through the elbow joint for flexible access and compact retraction.
120-degree elbow movement helps reach bolt positions around the workpiece.
The overhead equalizer supports the tightening tool and reduces handling effort.
The arm structure absorbs reaction torque during powered fastening.
The tool holder and control handle are selected or designed to match the actual tightening tool.

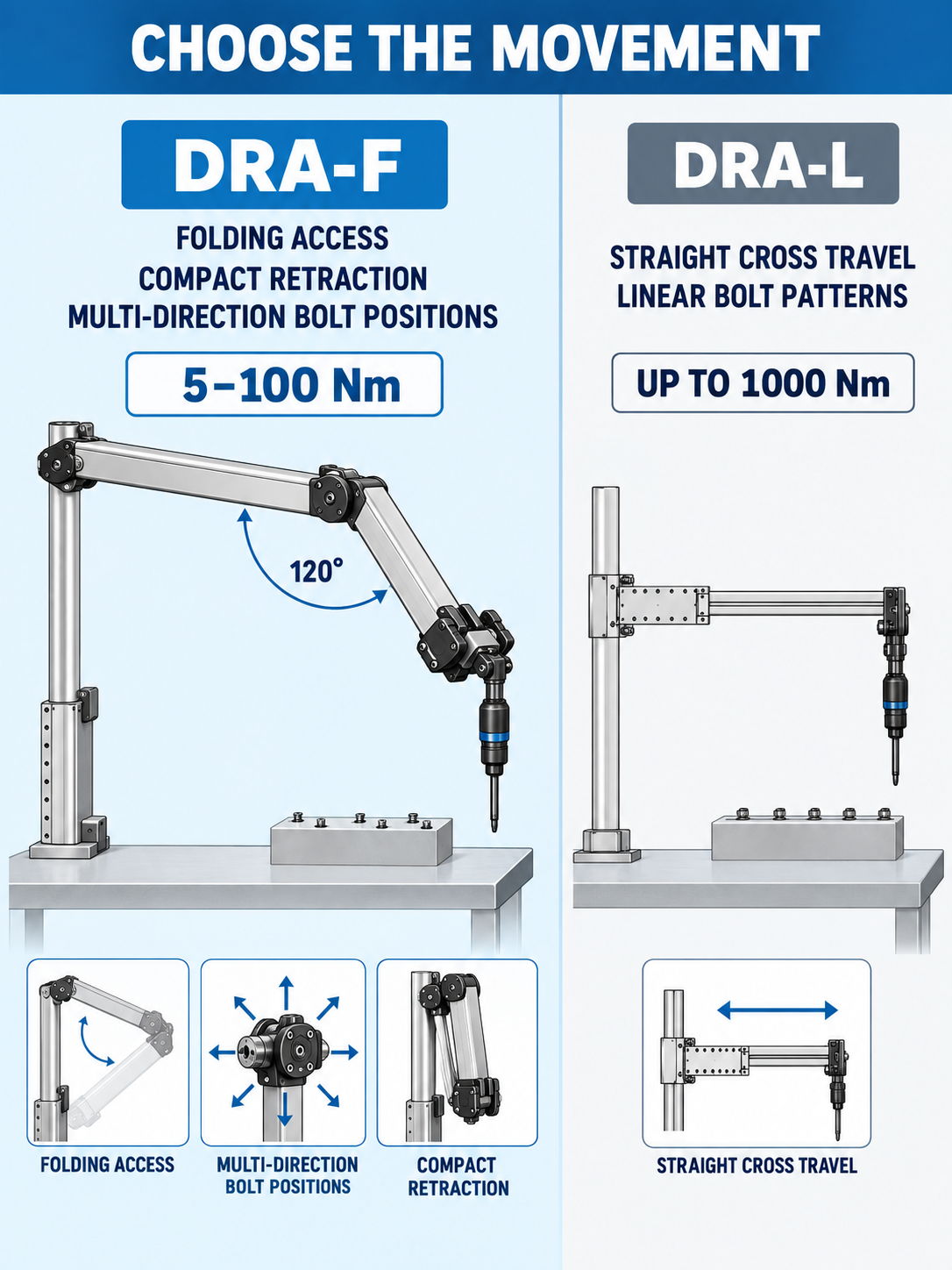

DRA-F or DRA-L?

Choose DRA-F for compact retraction and multi-direction access around a workpiece. Choose the DRA-L linear arm when the process follows a straight cross-travel path or a linear bolt pattern. Final selection must also consider torque, tool weight and station geometry.

Typical Applications

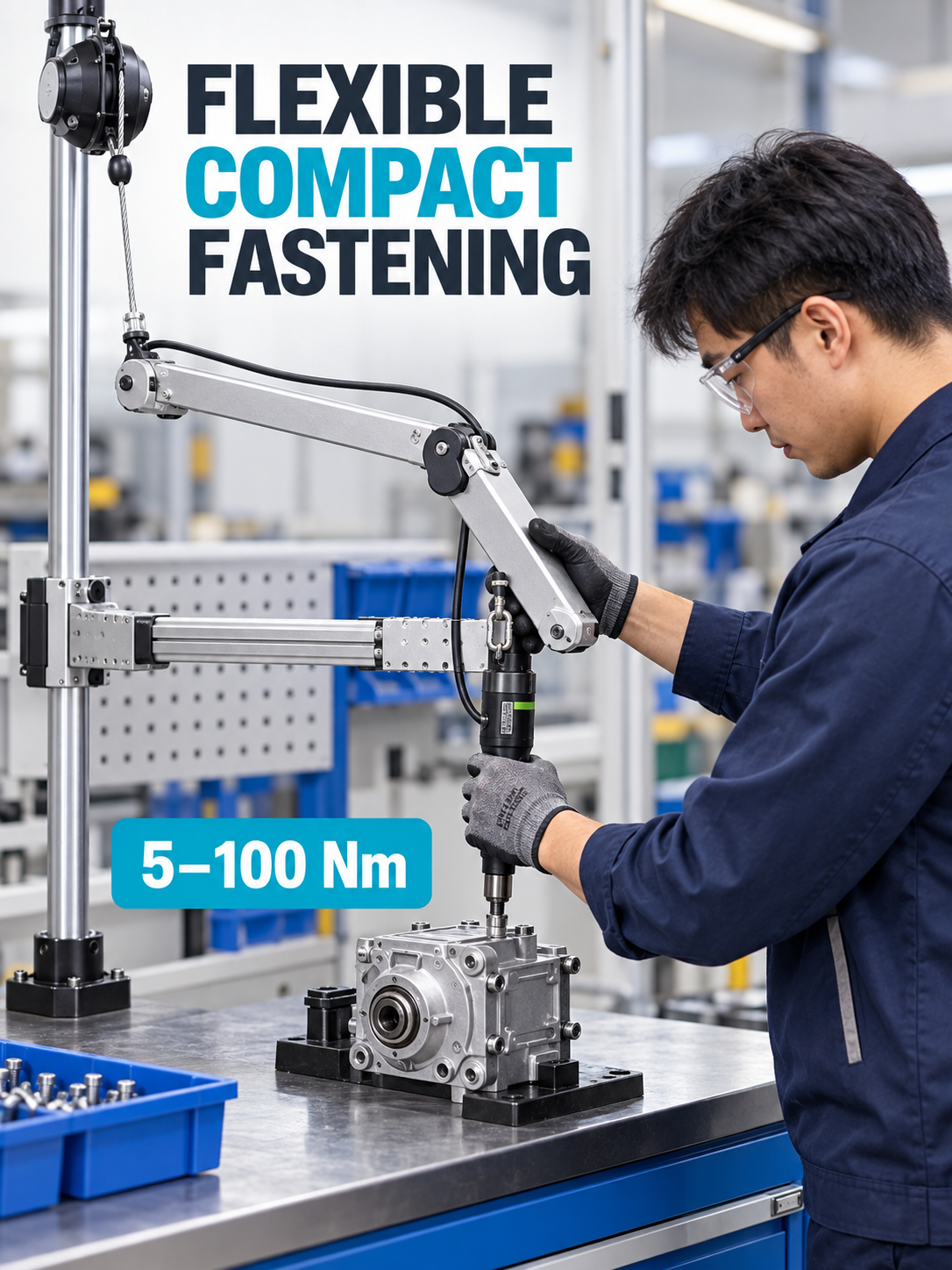

Compact automotive and machinery assembly, appliance production, gearbox and component fastening, and other bench processes where bolt positions require flexible approach angles within a limited workstation footprint.

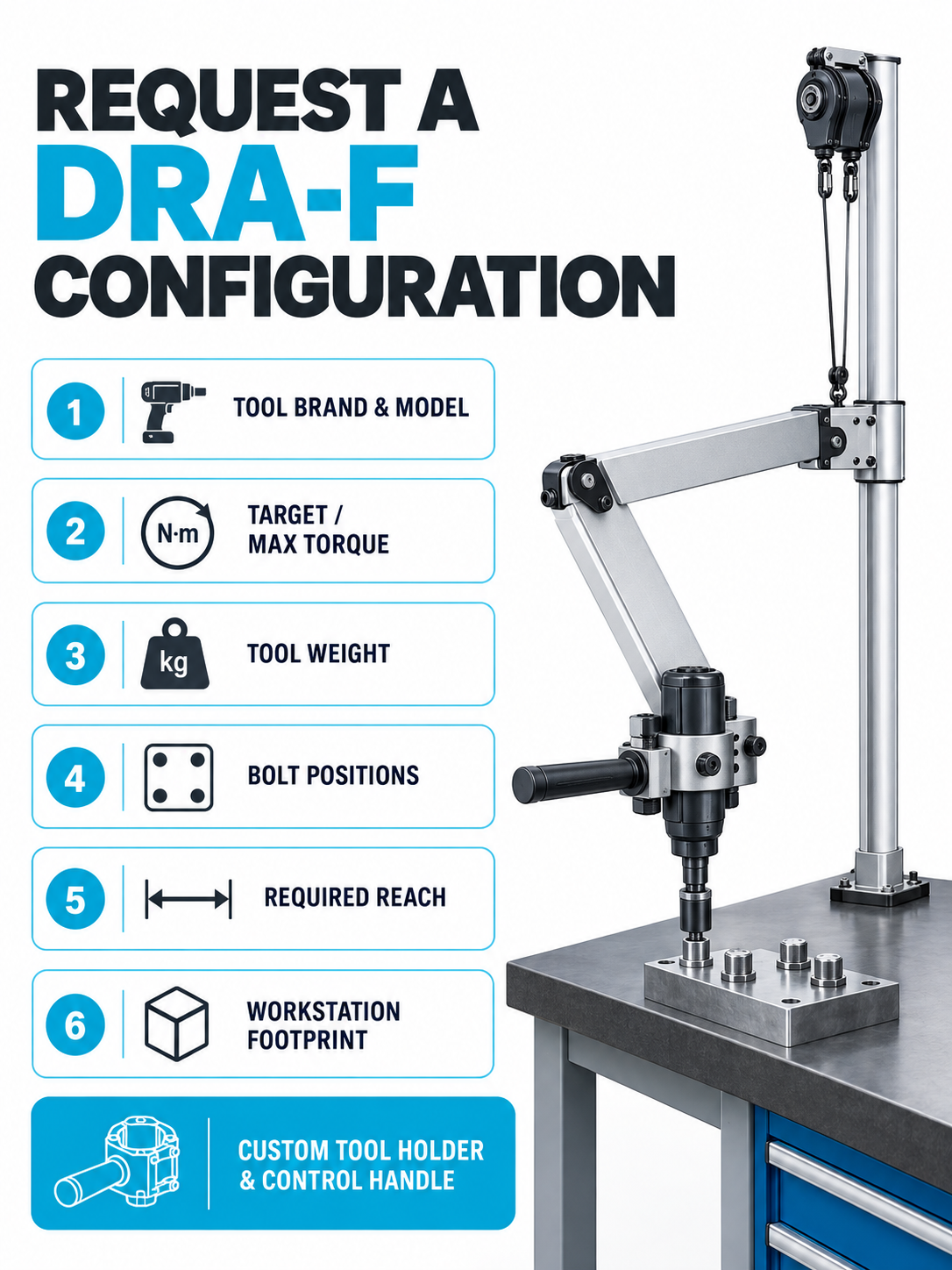

Information Required for a Quote

Tightening-tool brand, model and dimensional drawing
Normal and maximum tightening torque
Tool weight and output orientation
Bolt positions and fastening sequence
Required reach, vertical travel and access angles
Workbench dimensions and available workstation footprint
Preferred tool holder and control-handle arrangement

Send your tool and workstation layout for DRA-F selection and quotation.

Frequently Asked Questions

What torque range does the DRA-F Series cover?

The five-model range covers maximum torque capacities from 5 Nm to 100 Nm.

How does the folding structure help?

The articulated arm can extend, change working angle and retract more compactly than a straight linear layout, making it suitable for bolt positions distributed around a smaller workpiece.

Is the tightening tool included?

The DRA-F system is configured around the customer's specified powered tightening tool. The tool holder and control handle are selected or designed separately to match the tool model.

How do I choose between DRA-F and DRA-L?

Use DRA-F for folding, multi-direction access. Use DRA-L for controlled straight cross travel and linear fastening patterns. Compare maximum torque, tool load and working envelope before selecting.
