Electric Intelligent Folding Arm Manipulator | R Series Zero-Gravity Lifter

Name: Electric Intelligent Folding Arm Manipulator | R Series Zero-Gravity Lifter
Brand: Hbtorque

$9,800.00 USD

Sale Engineered to Order

Need an electric folding-arm solution? Send your workpiece weight, dimensions, lifting height, working radius and required rotation/flip motion. Request a Quote

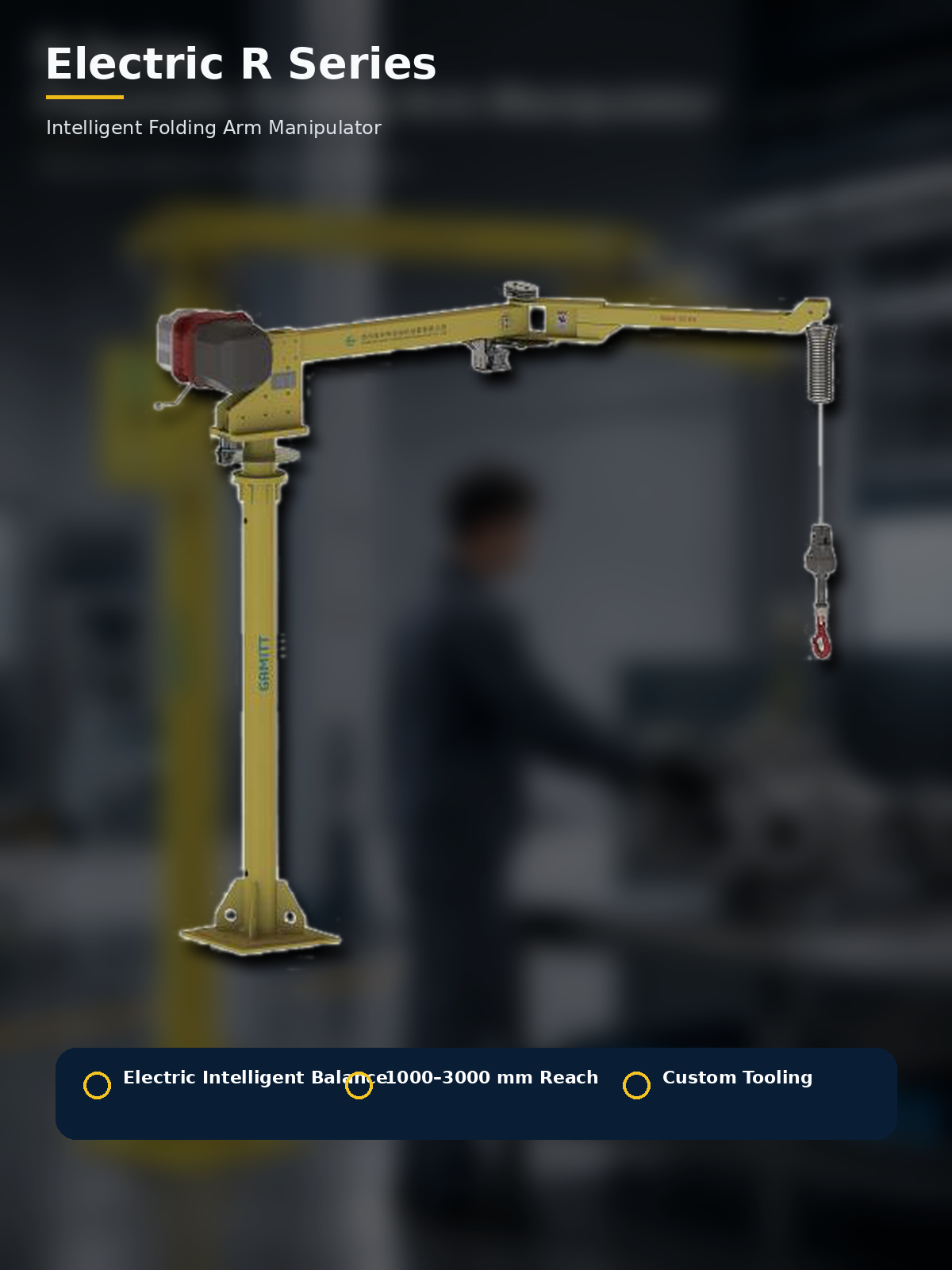

Electric Intelligent Folding Arm Manipulator

The R Series is an electric intelligent folding-arm handling system designed for assisted lifting and ergonomic material handling in industrial workstations. The folding structure provides a wide operating radius while helping operators position heavy workpieces with controlled movement.

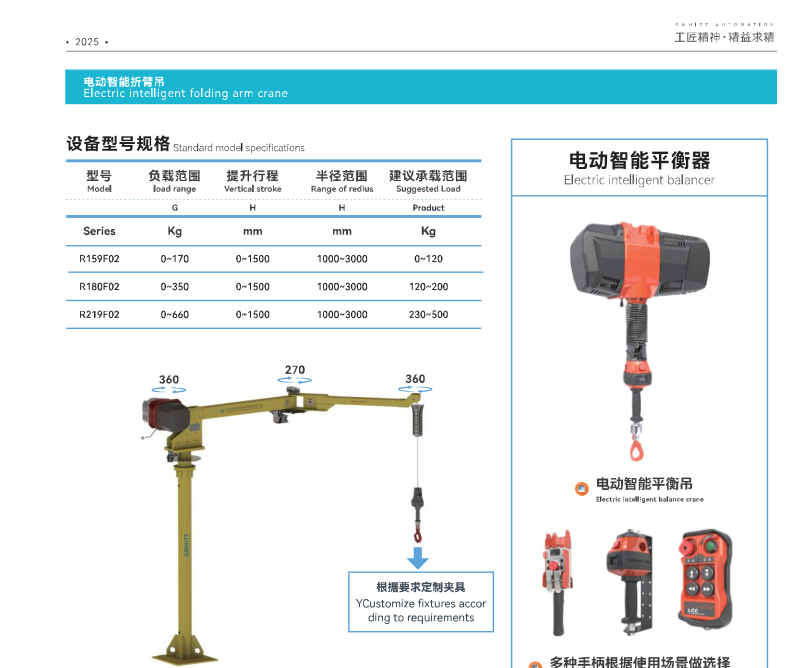

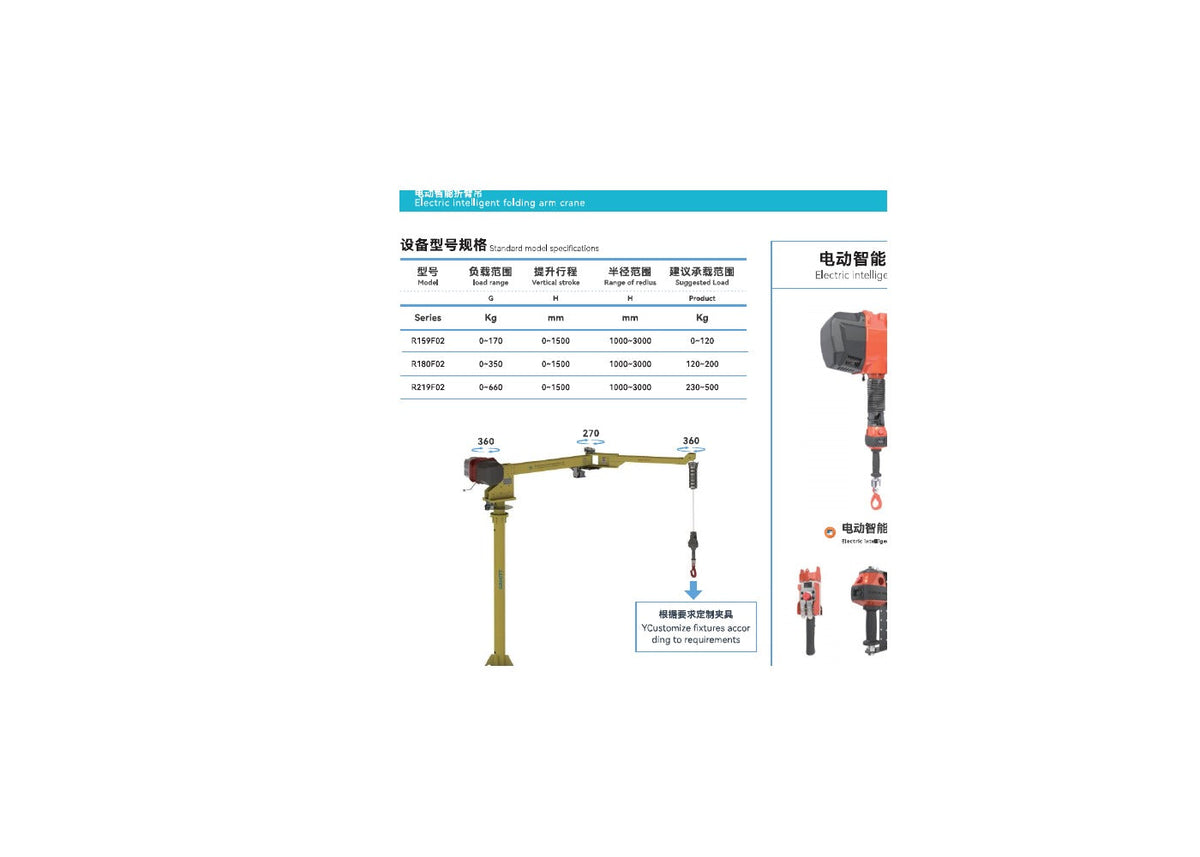

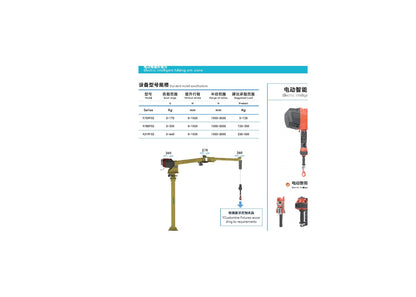

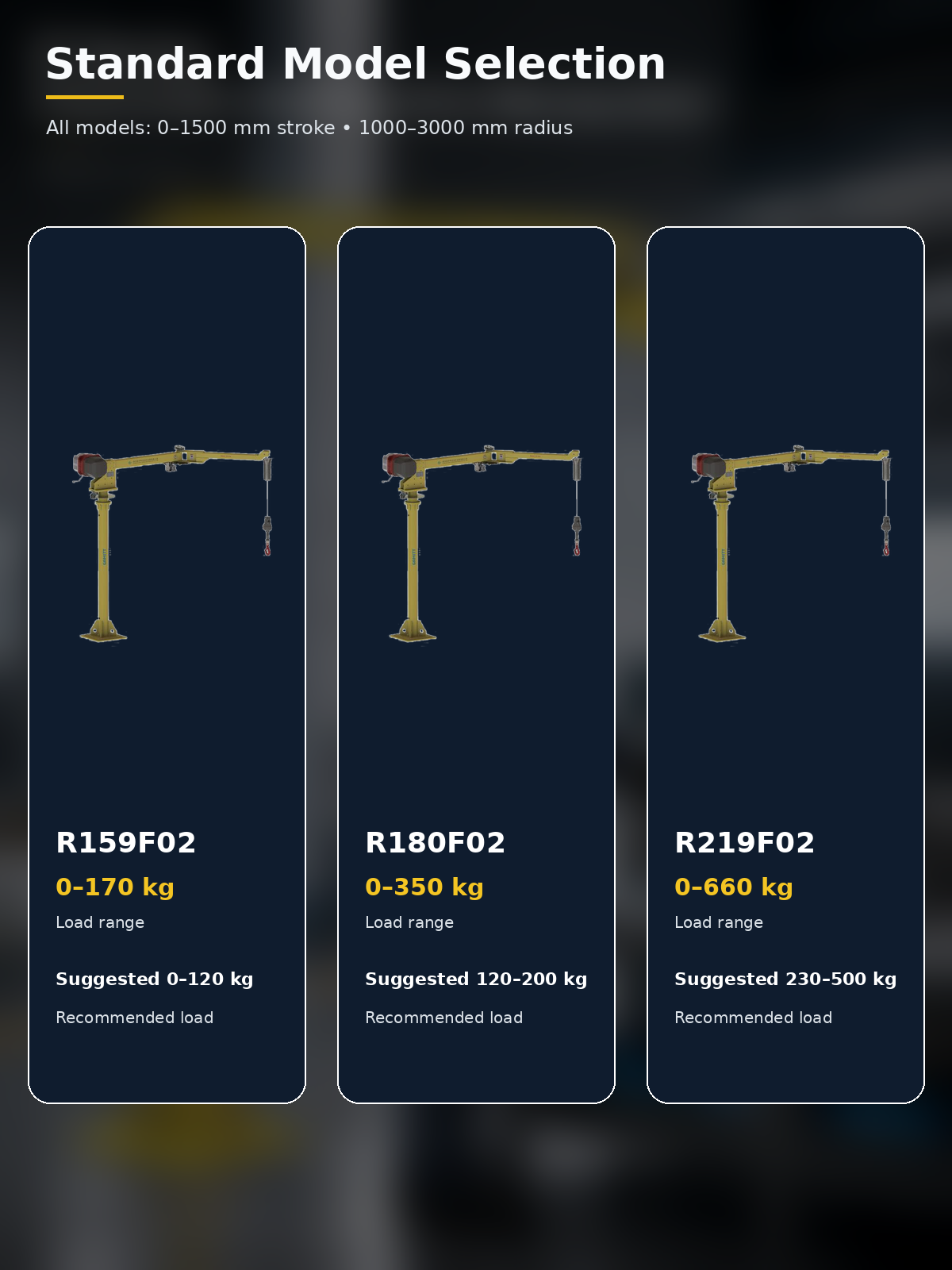

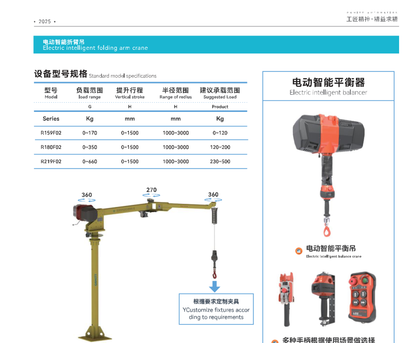

R Series Models

R159F02: load range 0–170 kg, vertical stroke 0–1500 mm, working radius 1000–3000 mm, recommended load 0–120 kg.
R180F02: load range 0–350 kg, vertical stroke 0–1500 mm, working radius 1000–3000 mm, recommended load 120–200 kg.
R219F02: load range 0–660 kg, vertical stroke 0–1500 mm, working radius 1000–3000 mm, recommended load 230–500 kg.

Key Features

Electric intelligent balancing system.

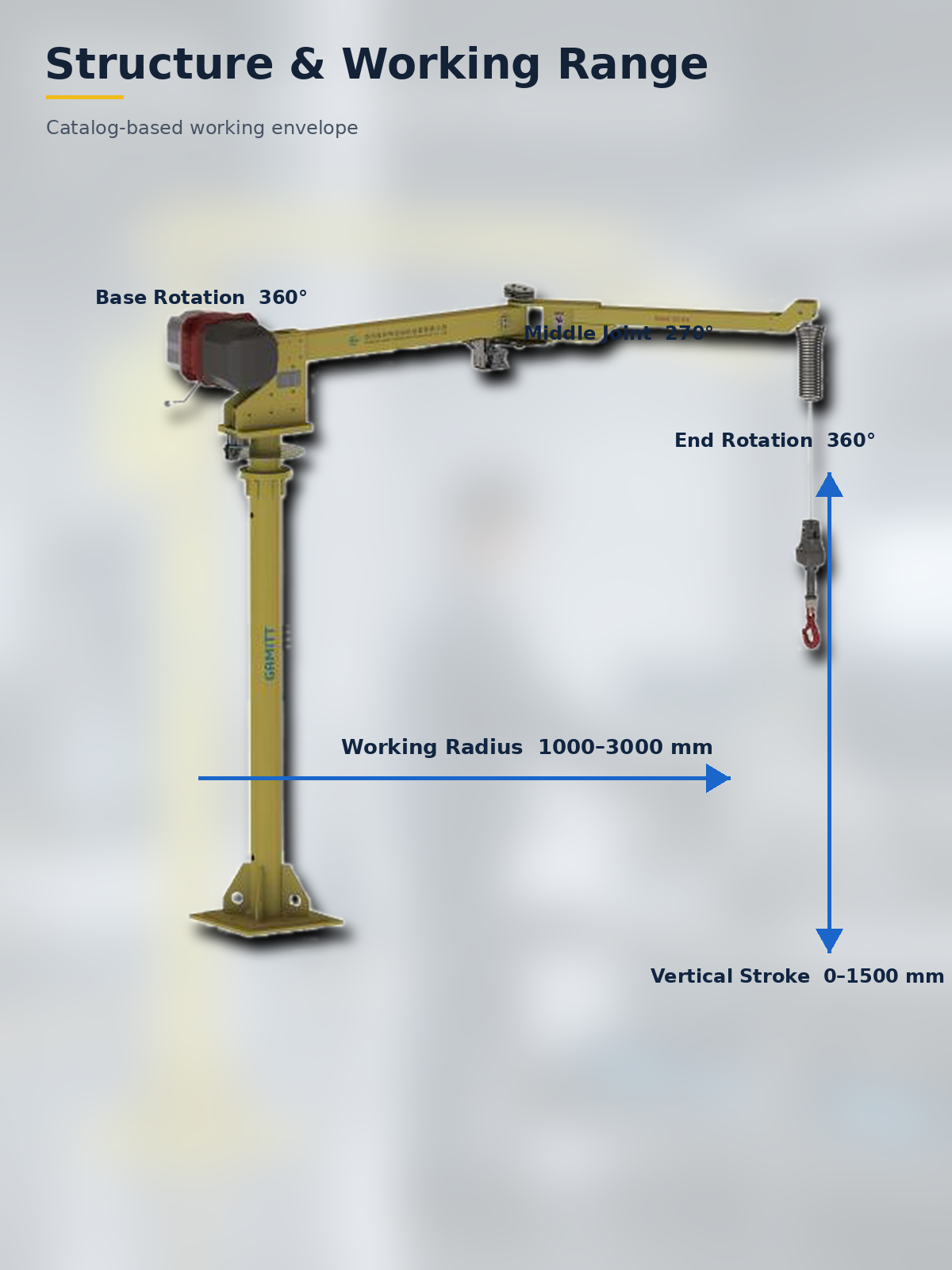

Folding-arm structure for flexible reach.

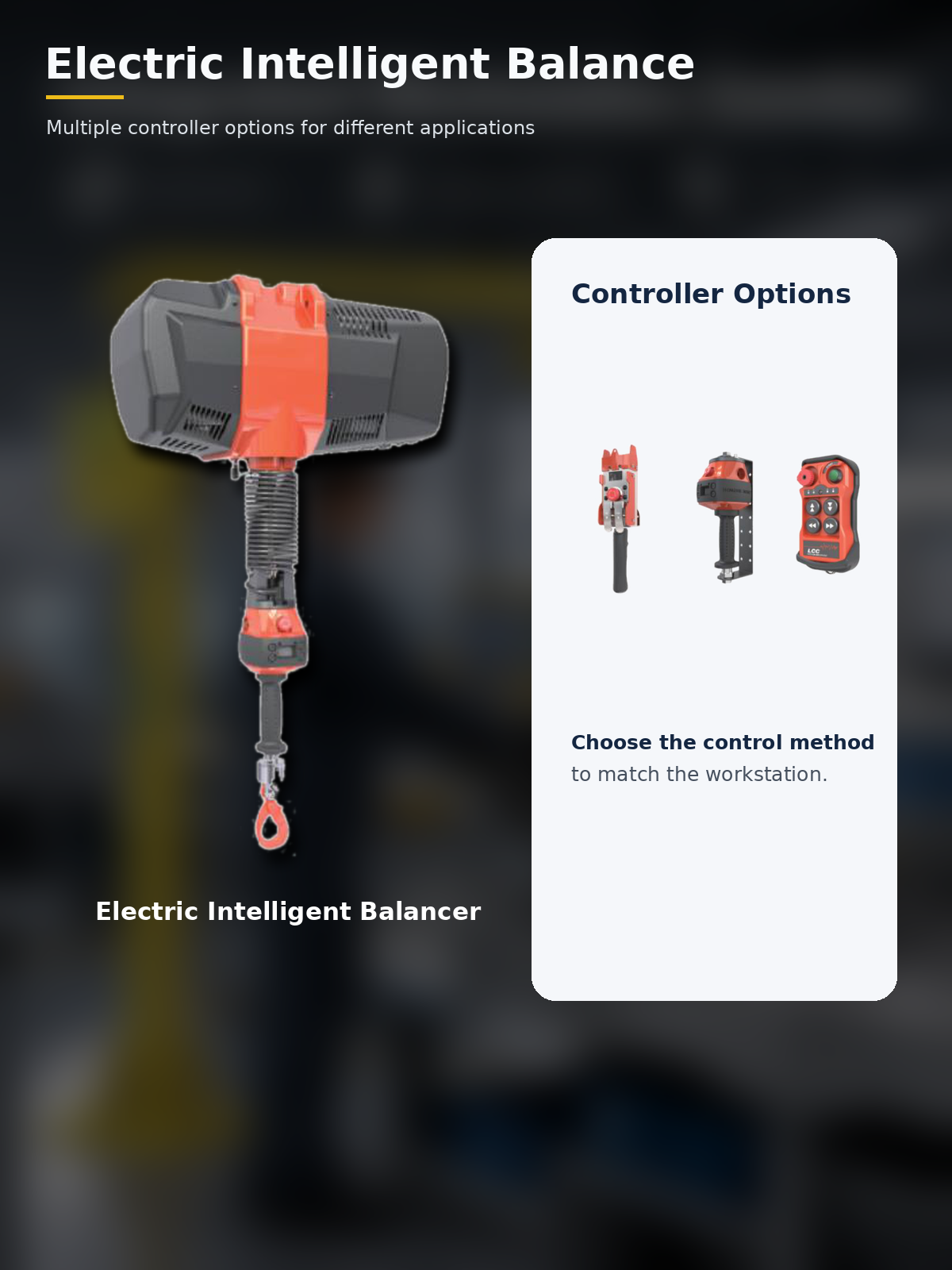

Multiple control handle options for different applications.

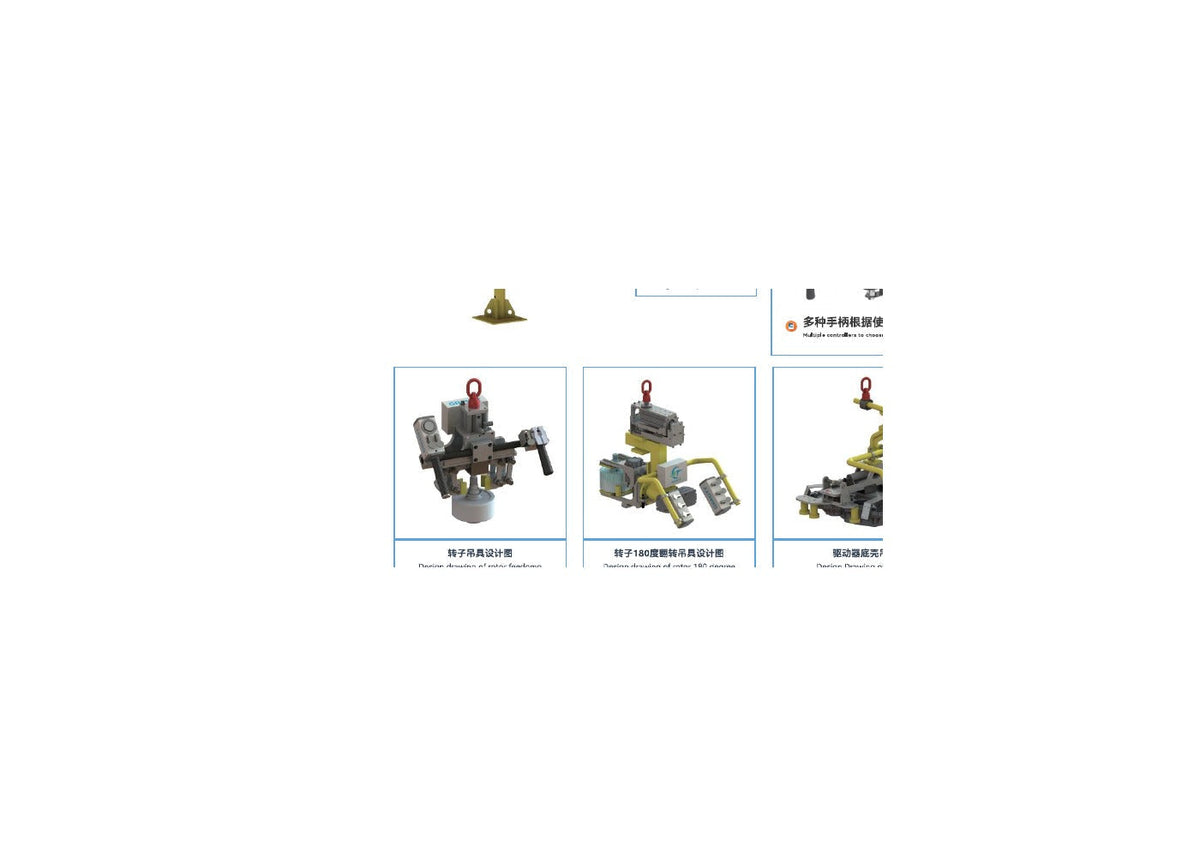

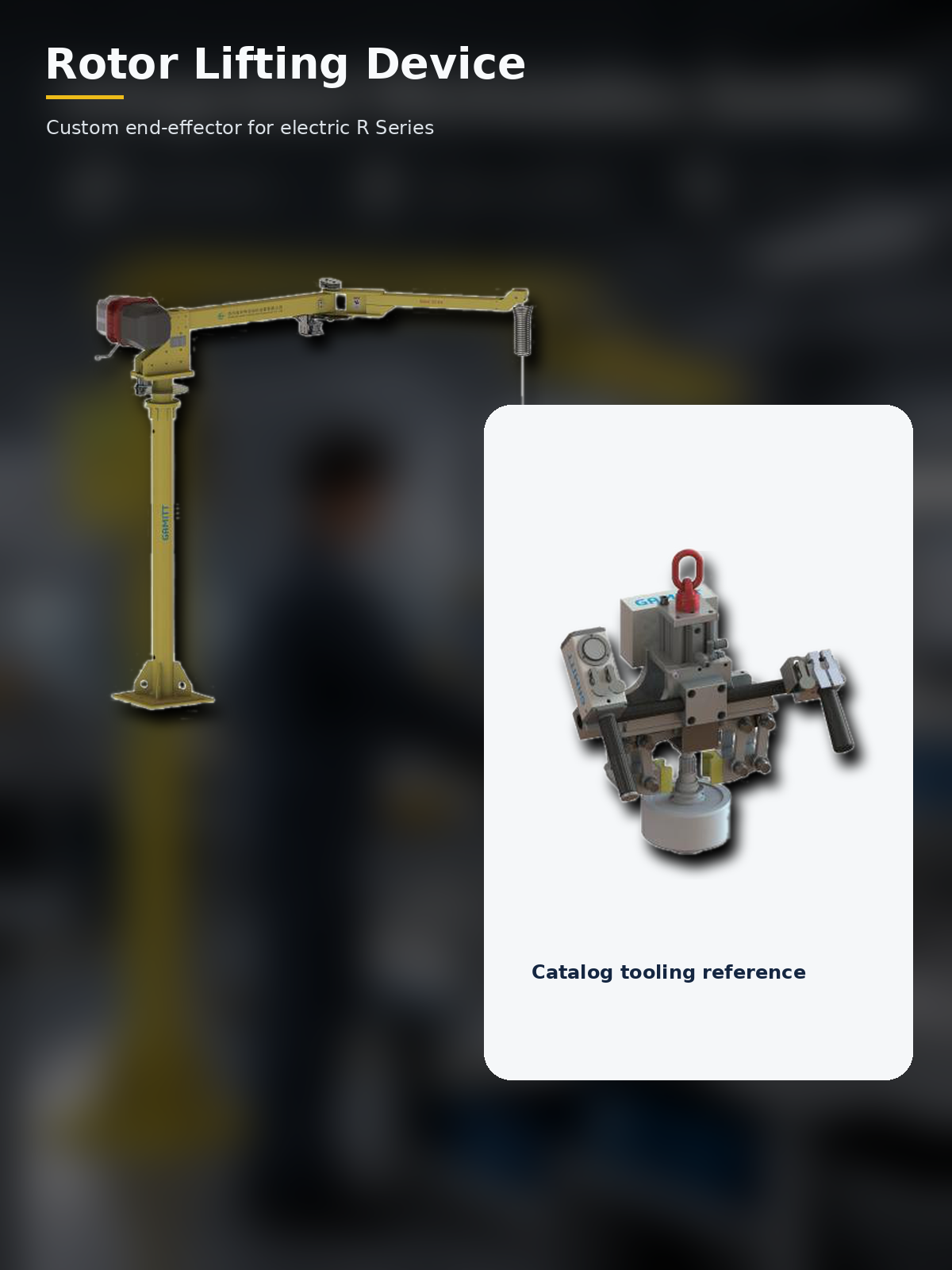

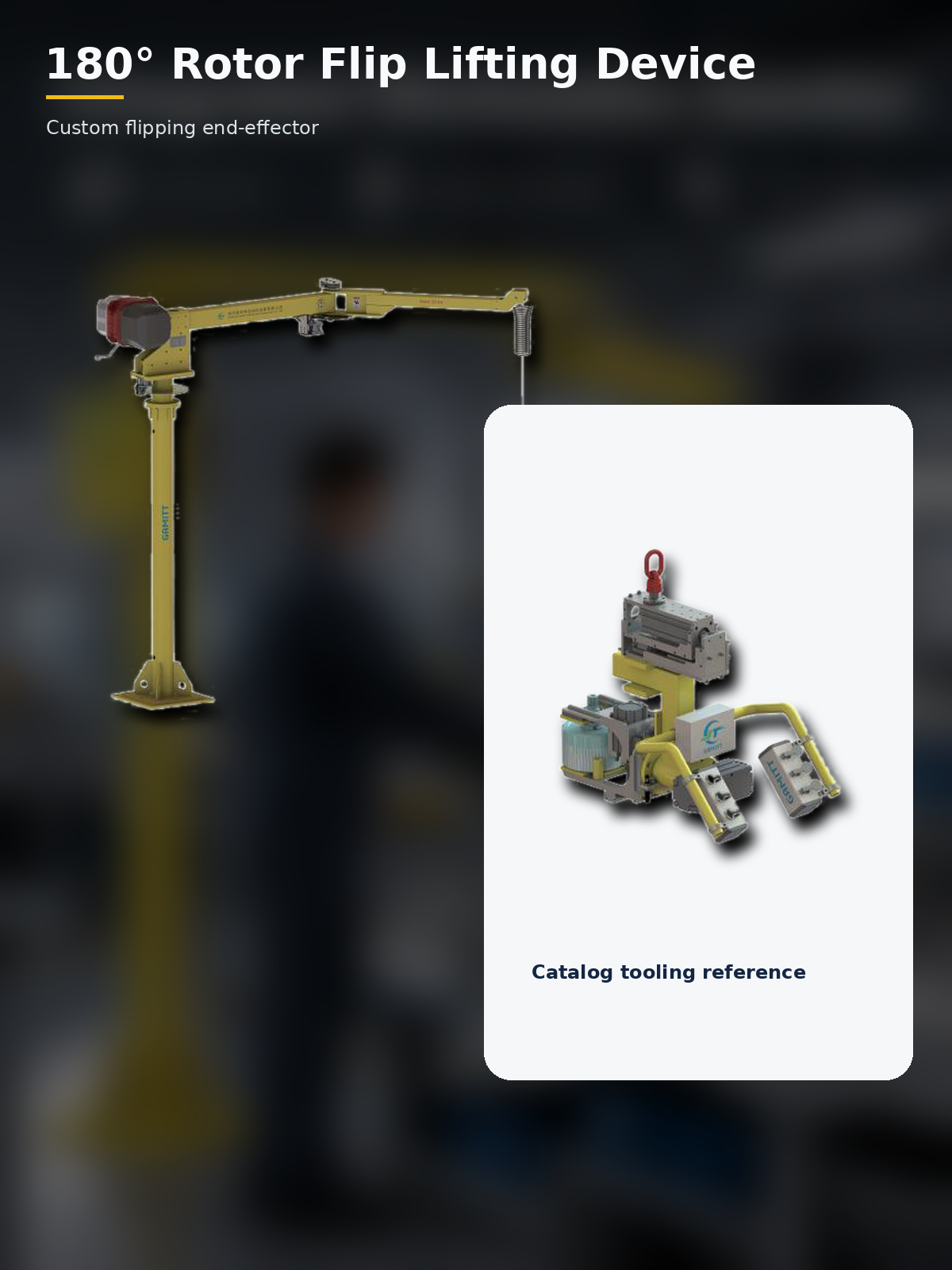

Custom end-effectors and fixtures can be engineered according to the workpiece.

Application: industrial assembly, component handling, loading/unloading and workstation material handling.

Contact HB Torque with your workpiece weight, dimensions, lifting height and handling requirements for configuration selection.

Applications & Workpiece Fit

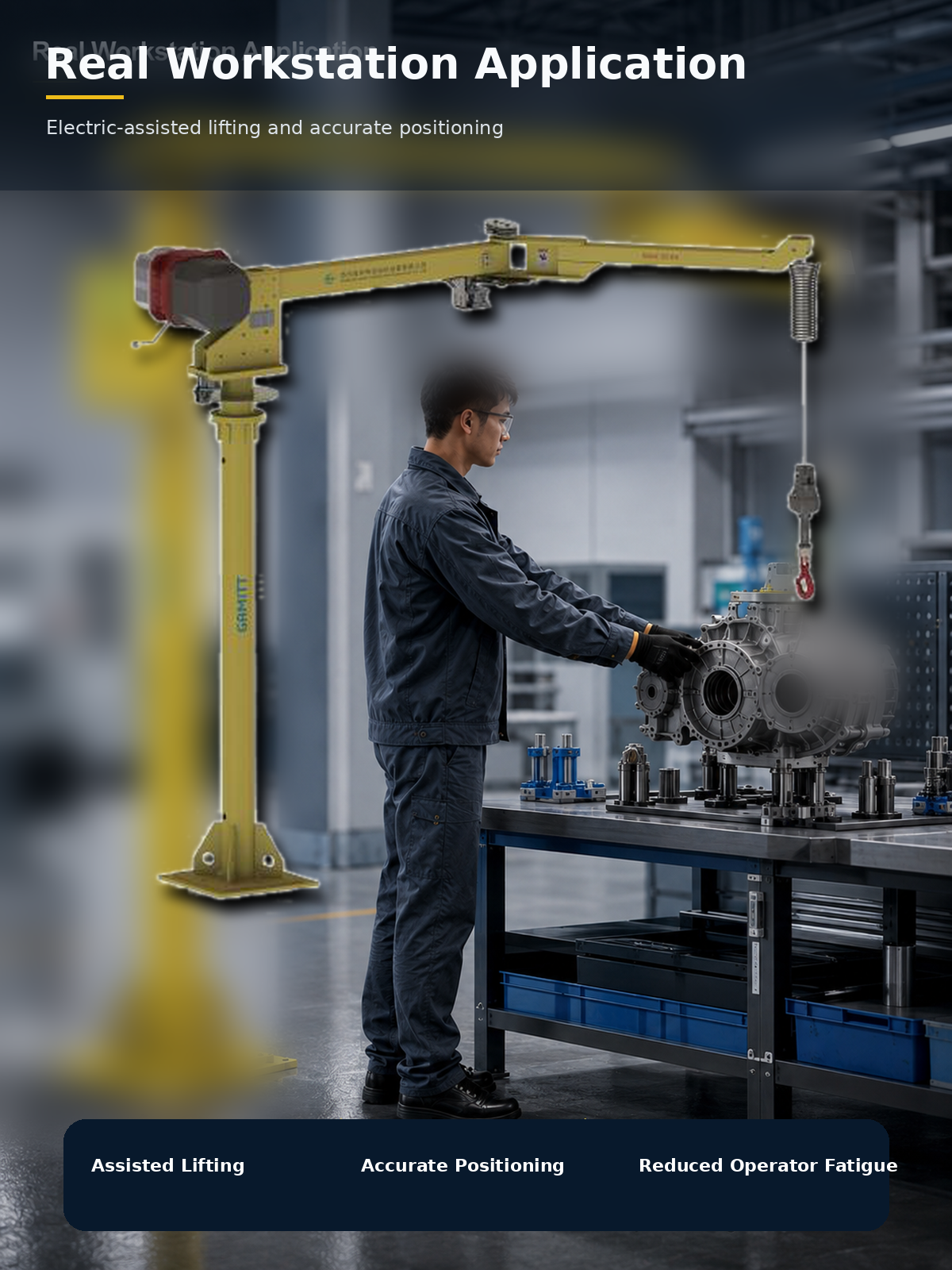

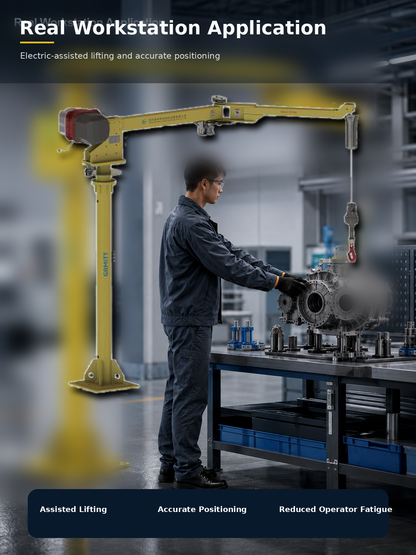

This electric folding-arm configuration is intended for assisted lifting, transfer, loading/unloading and positioning where operators need flexible reach around a workstation. It is especially useful when the workpiece must be repeatedly picked, moved and accurately presented to the next process.

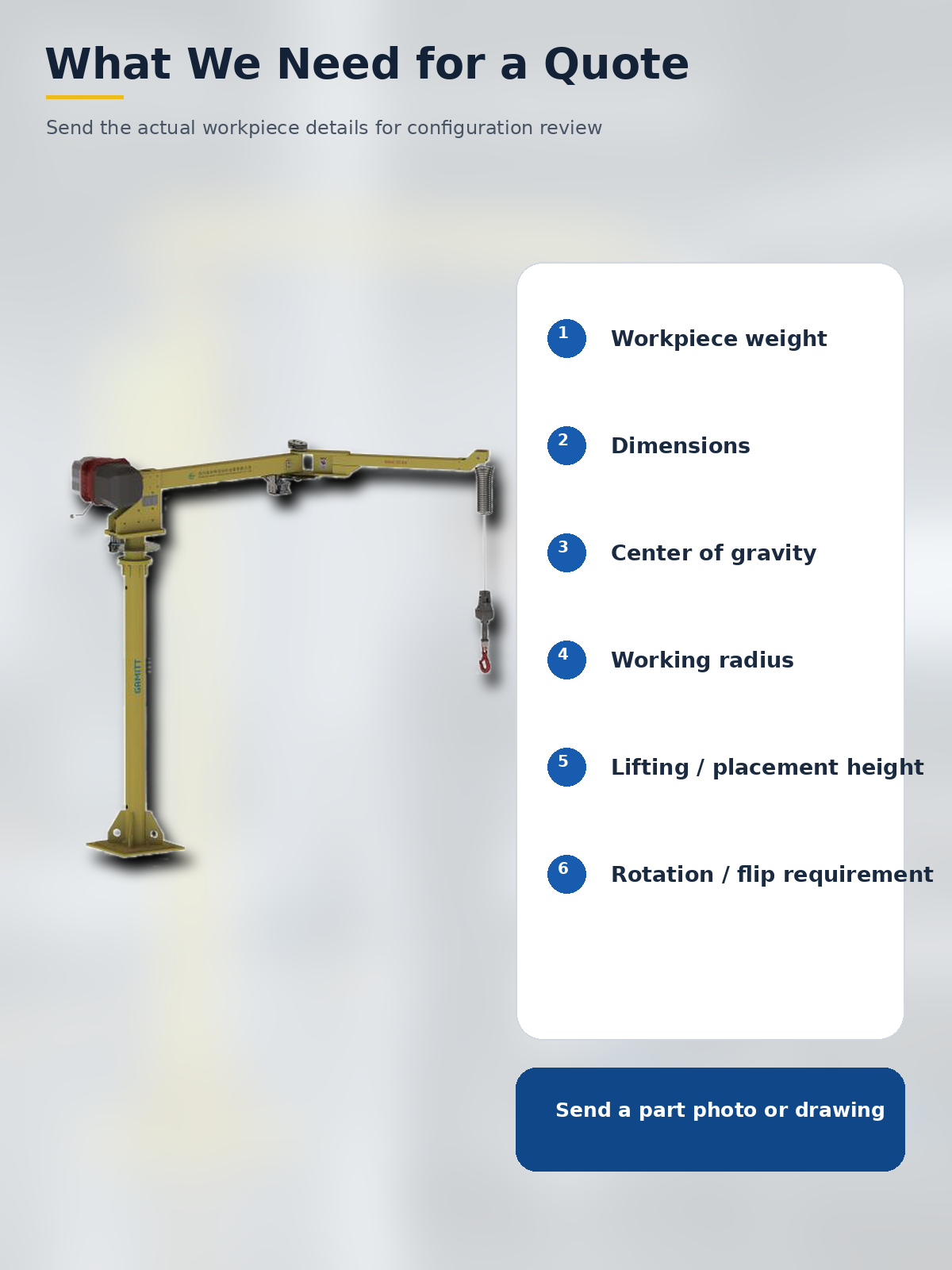

How to Select the Right Configuration

Workpiece: part name, weight and overall dimensions.
Working envelope: pick-up height, placement height and required horizontal reach.
Motion: whether the part only lifts or also needs rotation, tilt or flipping.
Interface: gripping points, surface condition and preferred end-effector method.
Station: available floor/overhead space and production layout.

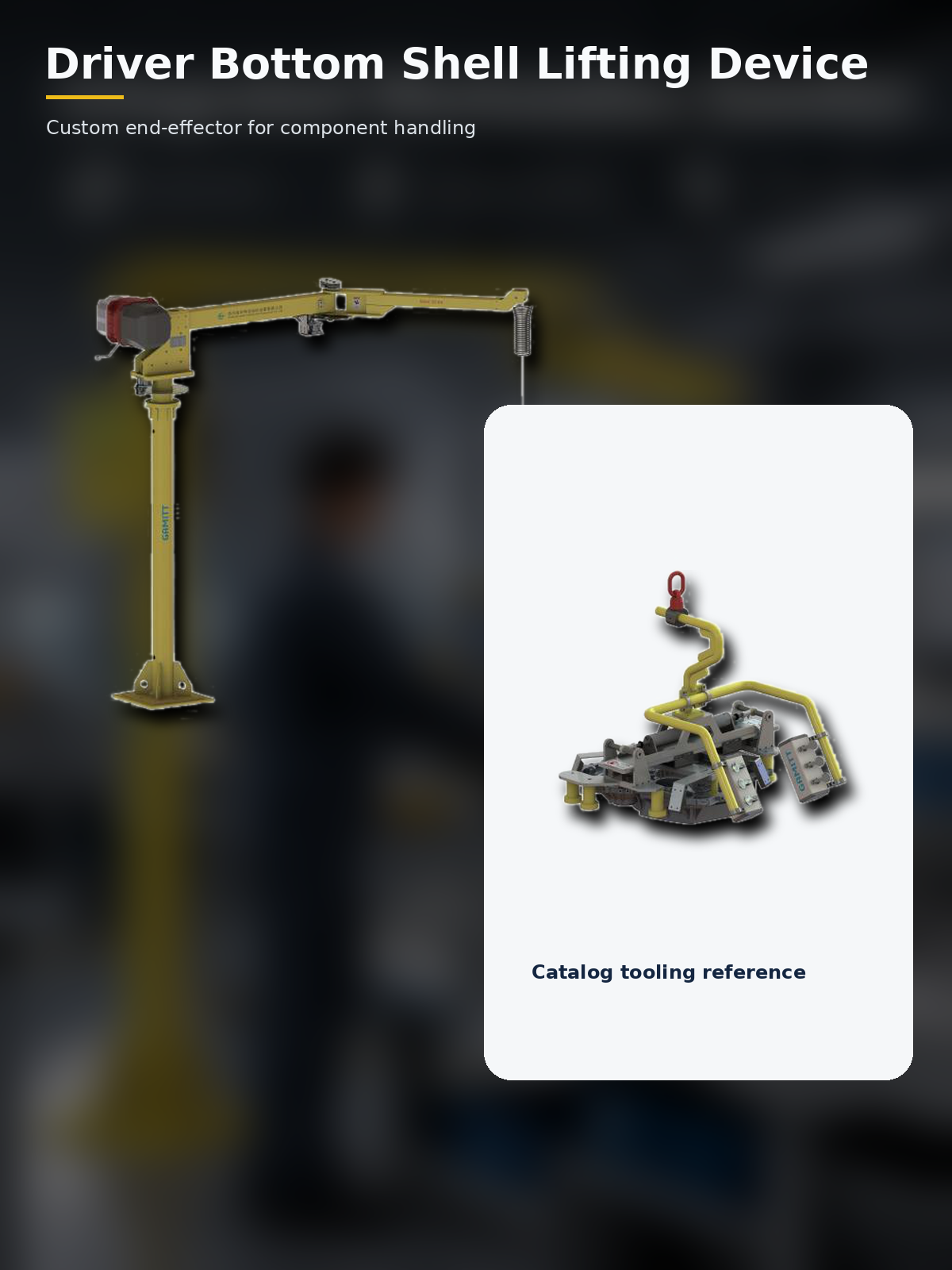

Custom Engineering

HB Torque can configure the arm, control arrangement and end-effector around the actual workpiece and station. For complex parts, send a drawing or photo so the gripping method can be evaluated before quotation.

Request a Quote

For a model recommendation, send your workpiece details including weight, dimensions, lifting height, working radius and required motion. We will use those parameters to prepare a configuration proposal.

Frequently Asked Questions

What information is needed to select an electric folding-arm manipulator?

Provide the workpiece weight and dimensions, pick-up and placement heights, required working radius, required rotation or flipping, gripping points and workstation layout. These inputs determine the arm size, working envelope and end-effector concept.

Can the end-effector be customized for my workpiece?

Yes. The end-effector and fixture can be engineered around the workpiece geometry, gripping points and required motion. Photos or drawings help evaluate the gripping method before quotation.

How do I choose between an electric and pneumatic folding-arm manipulator?

Compare the available plant utilities, required load, stroke, reach and handling process. The electric R Series and pneumatic R Series use different drive approaches, so the final choice should be based on the actual workstation requirements.
