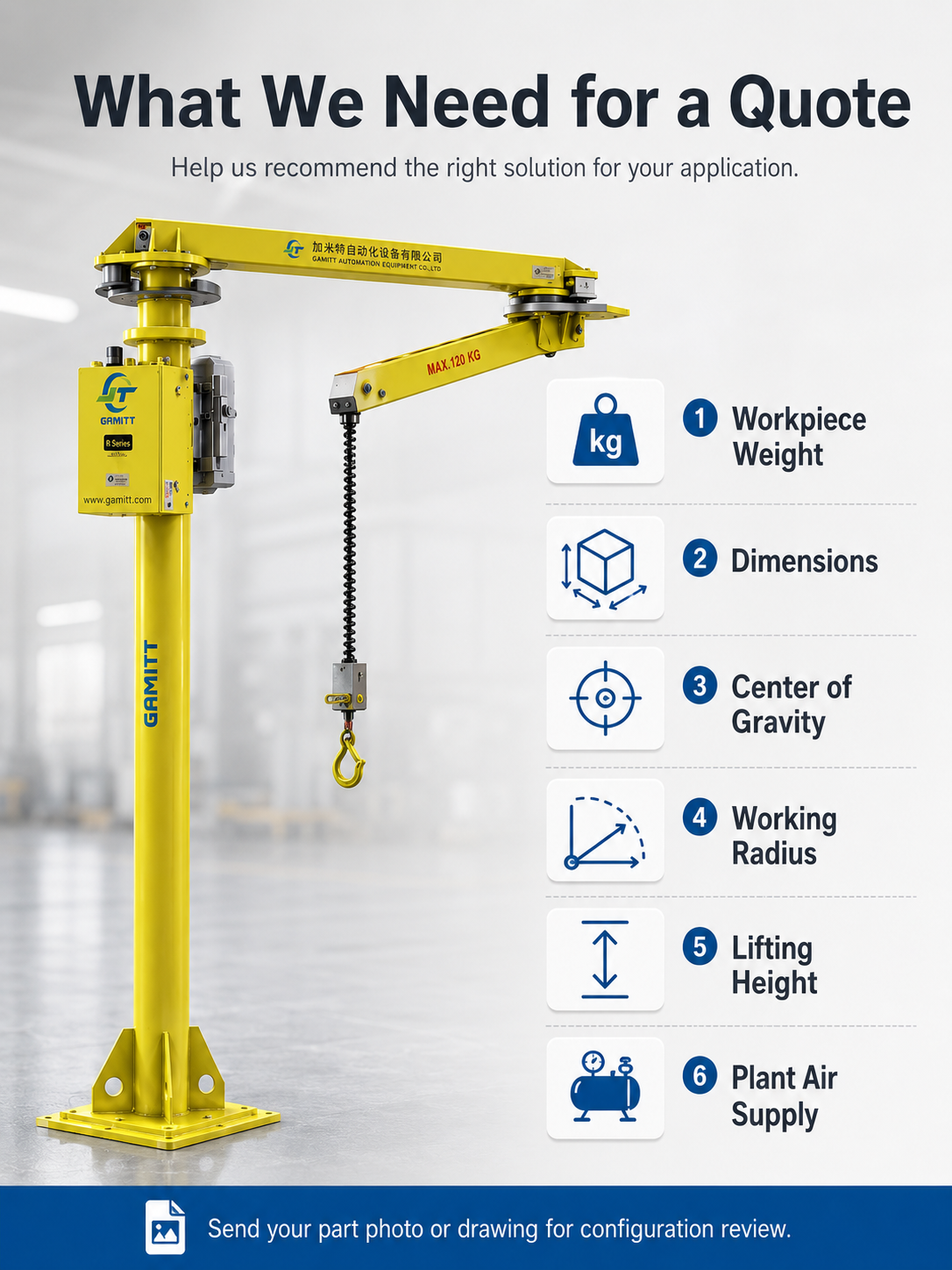

Need a pneumatic folding-arm solution? Send your workpiece weight, dimensions, lifting height, working radius, plant air supply and required rotation/flip motion. Request a Quote

R Series Pneumatic Intelligent Folding Arm Manipulator

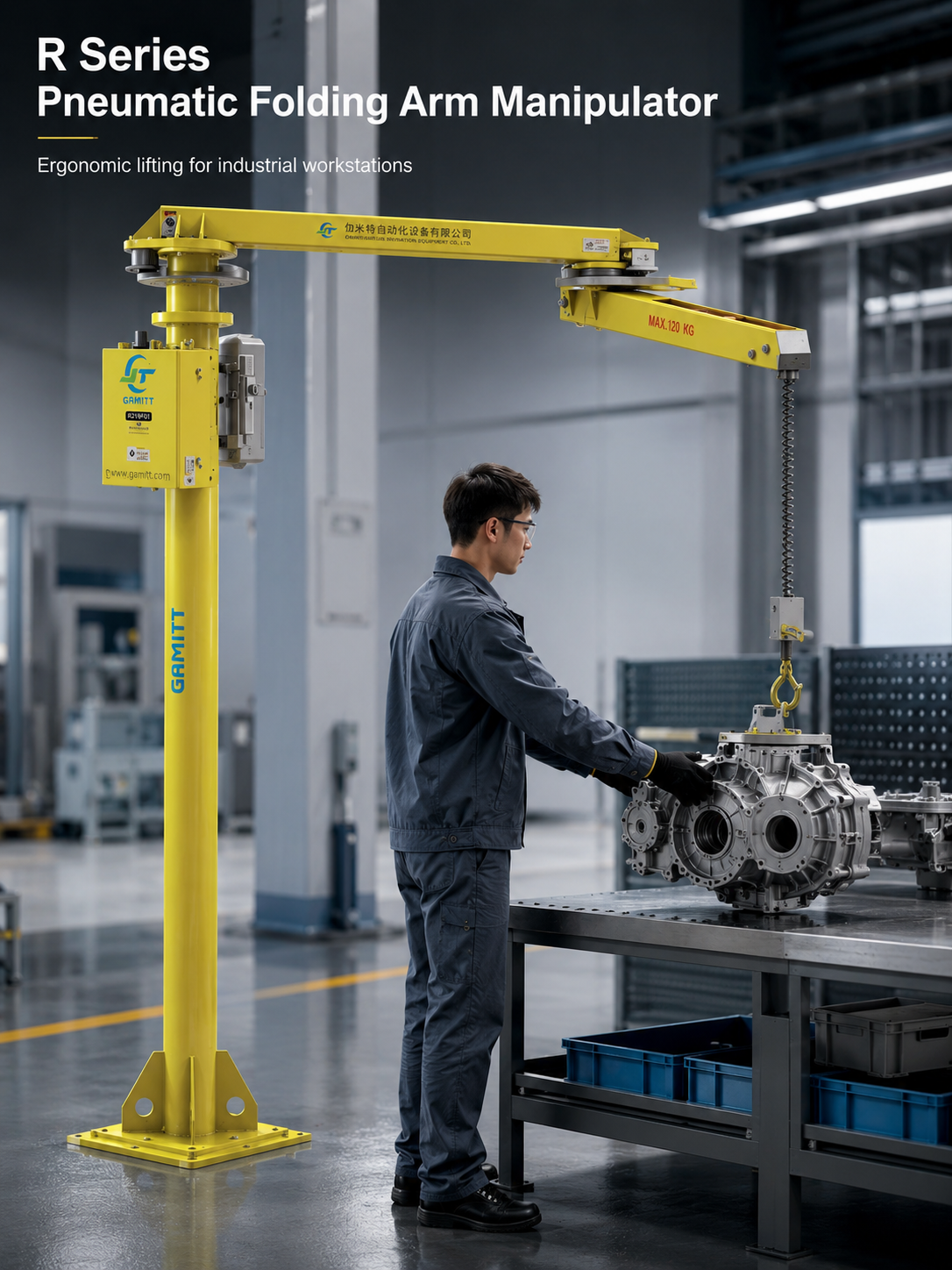

The R Series pneumatic intelligent folding arm crane is designed for ergonomic lifting and assisted material handling in industrial workstations. The folding-arm structure provides flexible reach while the pneumatic balancing system helps support controlled movement of heavy workpieces.

Standard Models

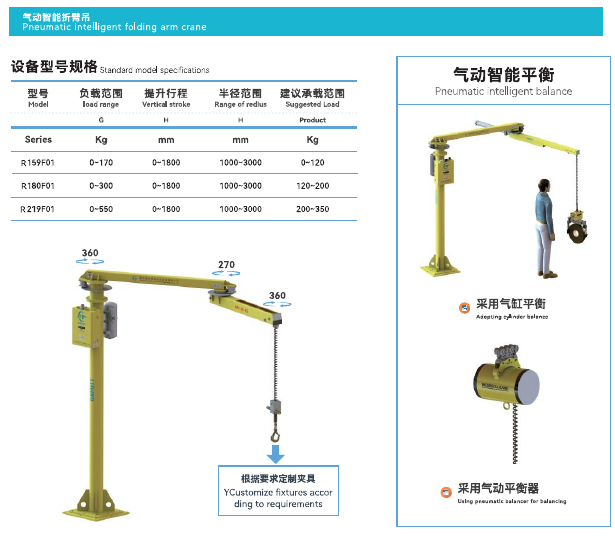

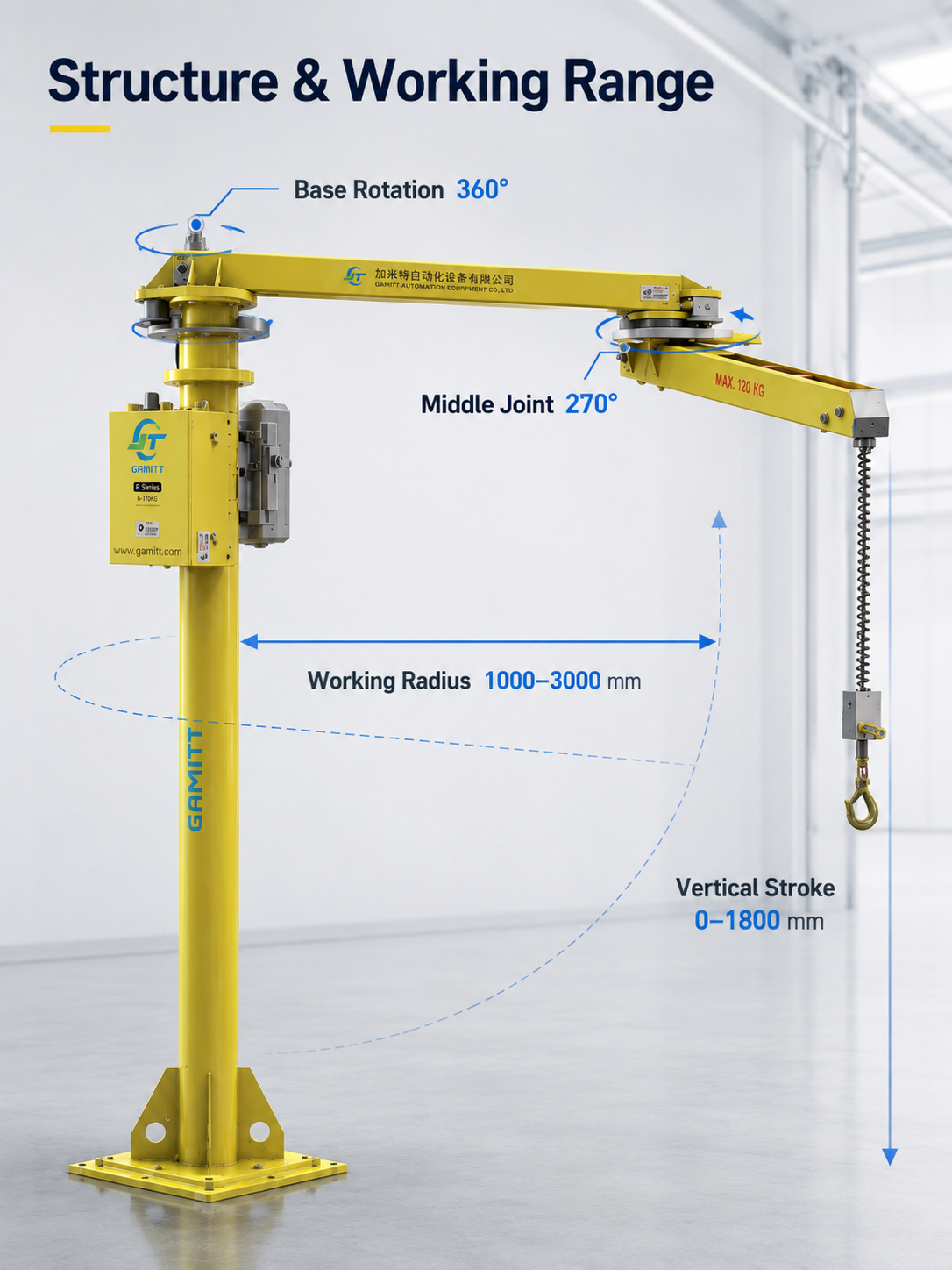

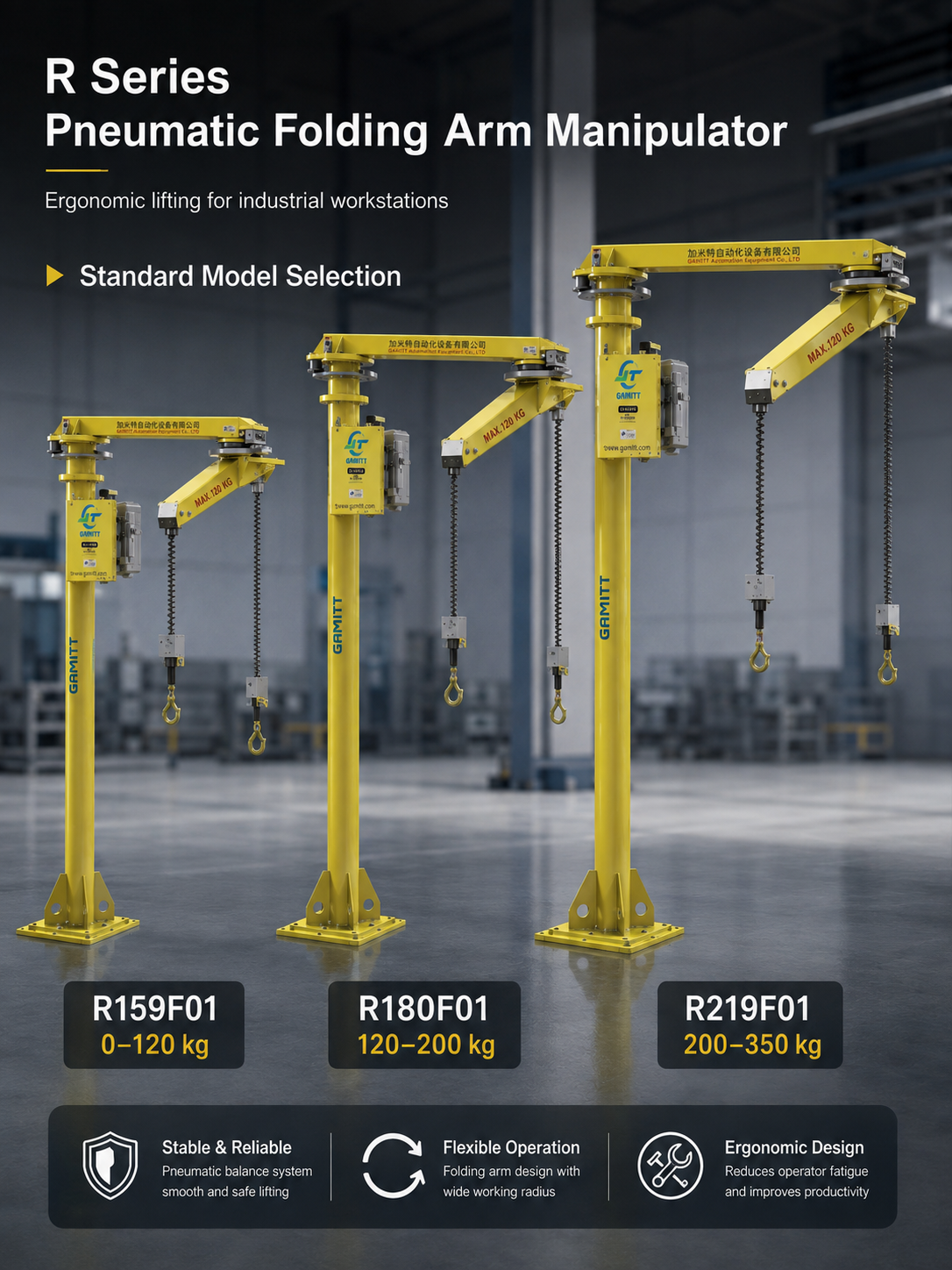

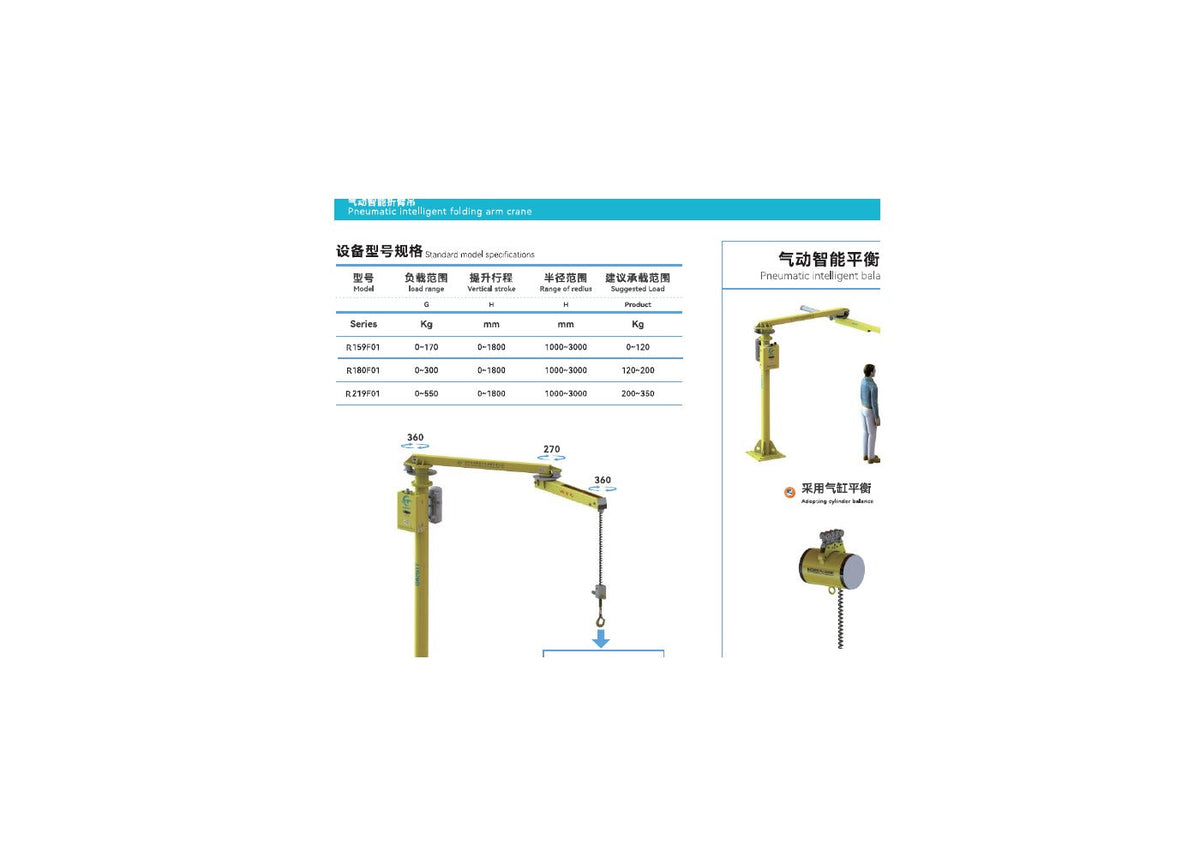

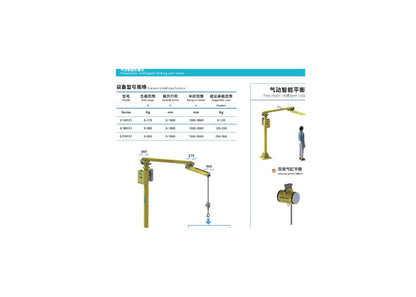

R159F01: load range 0-170 kg; vertical stroke 0-1800 mm; working radius 1000-3000 mm; suggested load 0-120 kg.
R180F01: load range 0-300 kg; vertical stroke 0-1800 mm; working radius 1000-3000 mm; suggested load 120-200 kg.
R219F01: load range 0-550 kg; vertical stroke 0-1800 mm; working radius 1000-3000 mm; suggested load 200-350 kg.

Key Features

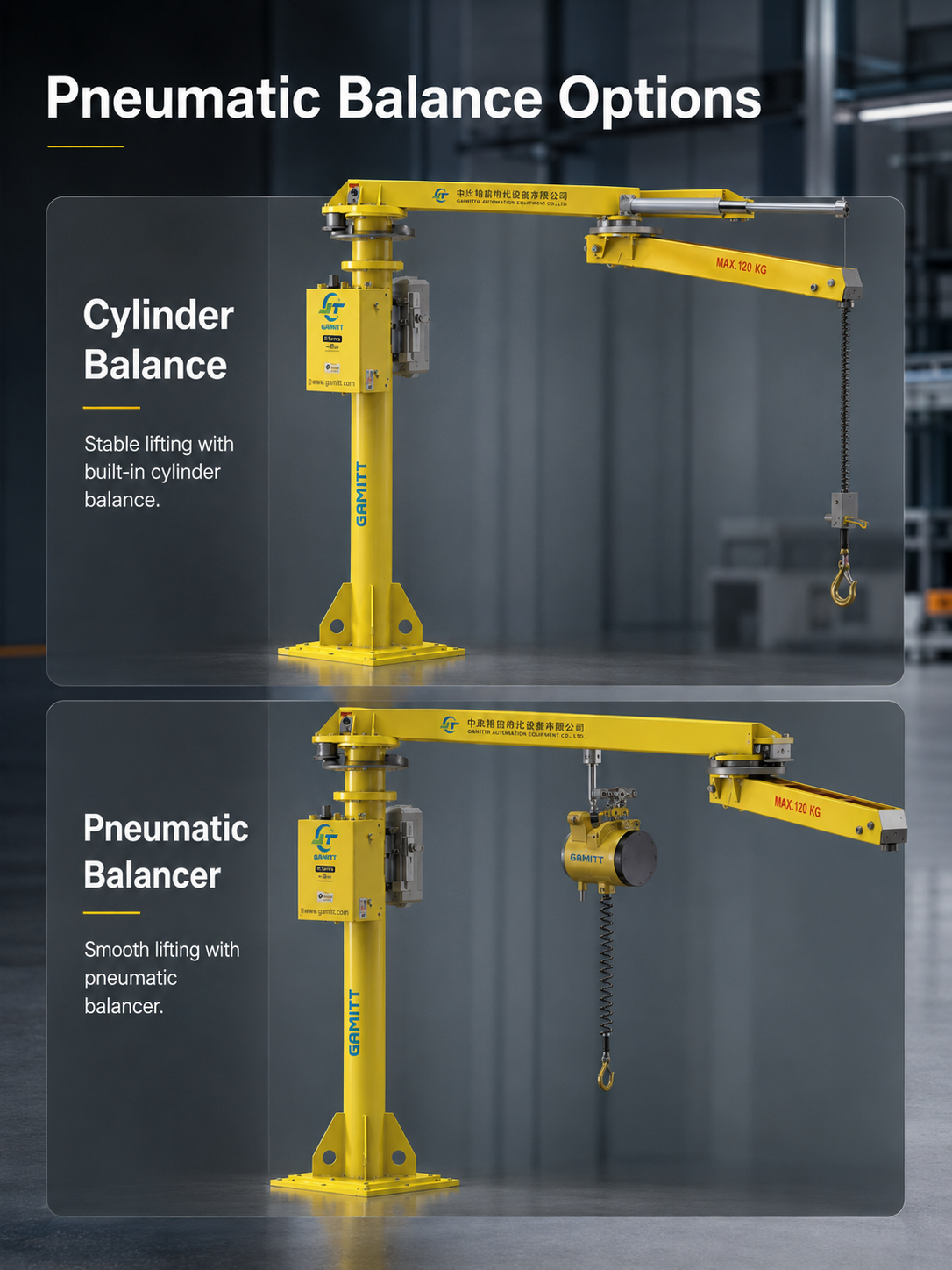

Pneumatic intelligent balancing for assisted lifting.
Folding-arm configuration for flexible workstation coverage.

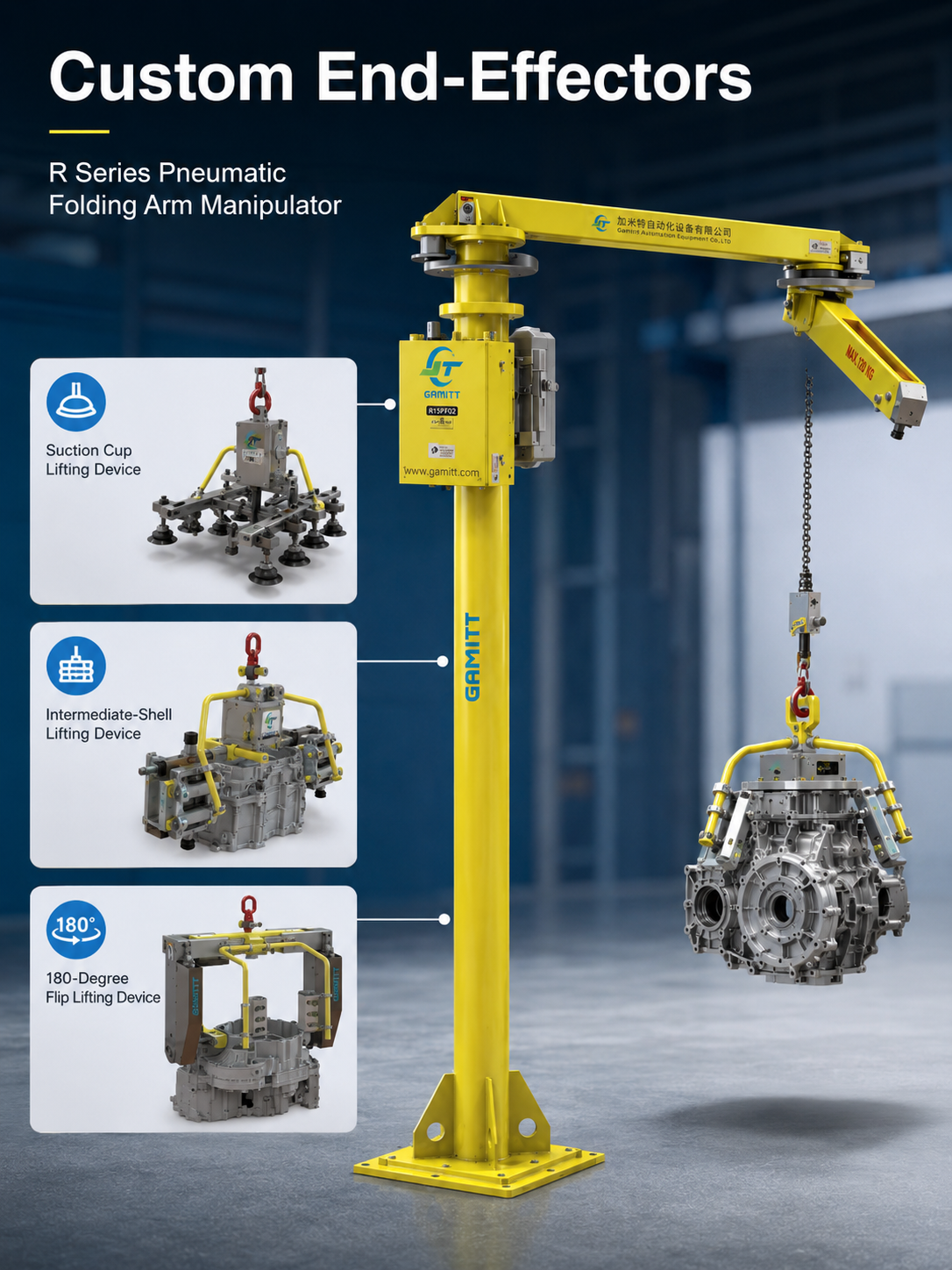

Custom lifting fixtures and end-effectors can be designed for the workpiece.
Suitable for assembly, component handling, loading/unloading and repetitive positioning.

Provide workpiece weight, dimensions, required reach, lifting height and motion requirements for configuration selection.

Applications & Workpiece Fit

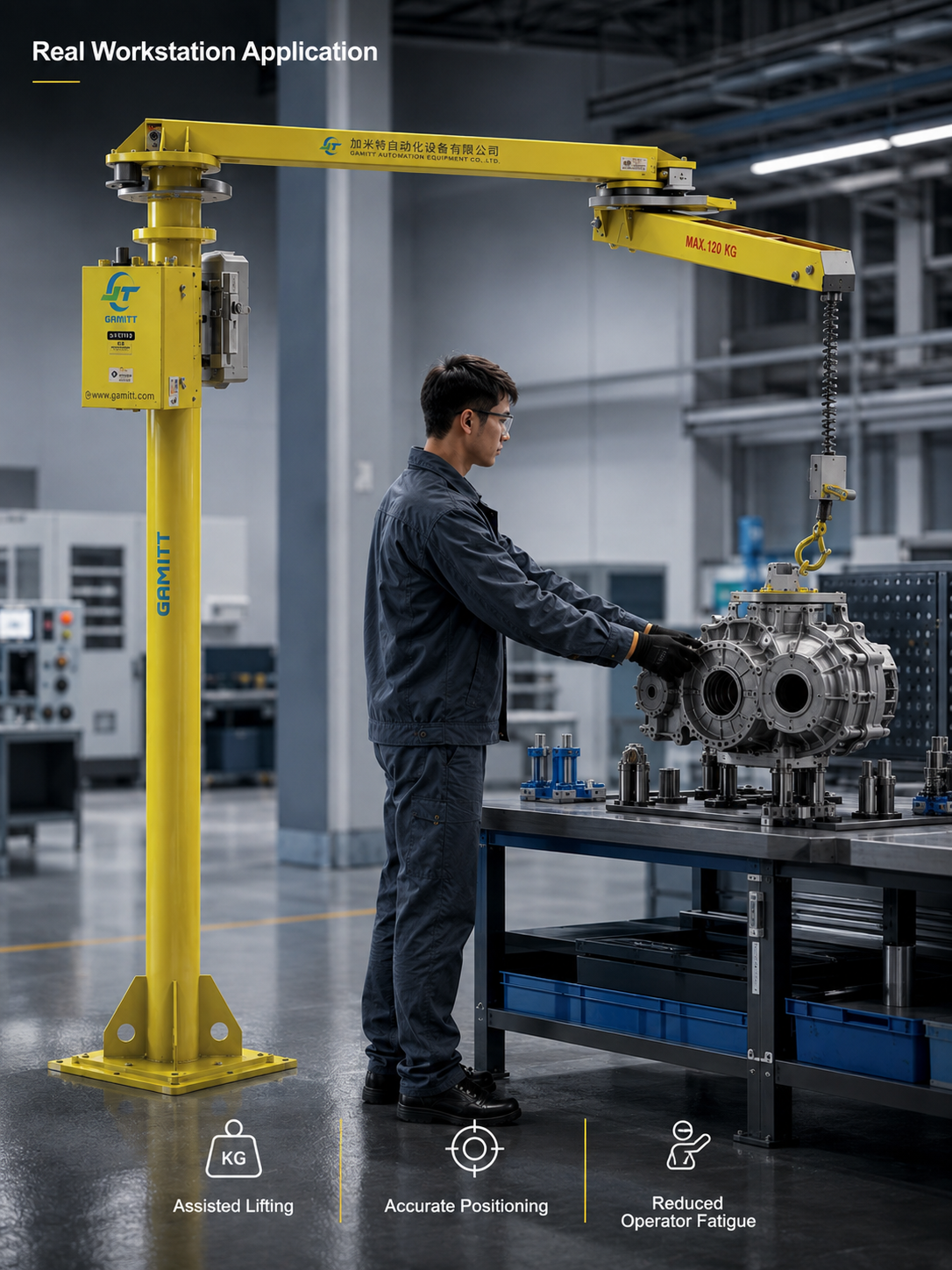

The pneumatic R Series combines a folding-arm working envelope with assisted balancing for production tasks where operators repeatedly lift and position components around a workstation.

How to Select the Right Model

Match the actual workpiece weight to the suggested load range shown above.
Confirm pick-up and placement heights and the required working radius.
Specify workpiece dimensions, center of gravity and stable gripping points.
Advise whether rotation, tilt or flipping is required.
Provide available plant air supply and installation-space information.

Custom Engineering

Custom fixtures and end-effectors can be configured for the part geometry and handling sequence. For irregular components, a photo or CAD drawing helps reduce uncertainty during selection.

Request a Quote

Send your workpiece details for an R Series recommendation, including weight, dimensions, lifting height, working radius and required motion.

Frequently Asked Questions

What information is needed to select a pneumatic folding-arm manipulator?

Provide workpiece weight and dimensions, center of gravity, pick-up and placement heights, required working radius, gripping points and any required rotation, tilt or flipping.

What utility information should be provided for the pneumatic R Series?

Provide the available plant air supply together with the installation-space information. These are part of the application review before the final configuration is selected.

How does the pneumatic R Series compare with the electric R Series?

The two series use different drive approaches. Selection should be based on available utilities, required load, stroke, reach and the handling process rather than assuming one configuration is universally better.
