ENGINEERED TO ORDER
Request an Engineering Review
Send your workpiece, tightening-tool or process details. Our team will review torque, reach, movement, positioning and traceability requirements.
Rigid torque-reaction workstation engineered for customer-owned ESTIC Handy 2000 Lite plus and Handy 2000 Touch EH2-R angle nutrunners. HB Torque supplies the reaction arm, precision tool clamp, workbench, fixture and optional position-control integration required to support the ESTIC tightening axis as a complete production station.
ESTIC and EH2-R model names identify compatible third-party tools. The ESTIC tool and controller are not included unless separately and lawfully supplied.
ESTIC Handy 2000 EH2-R 4–600 N·m Angle Nutrunner Workstation

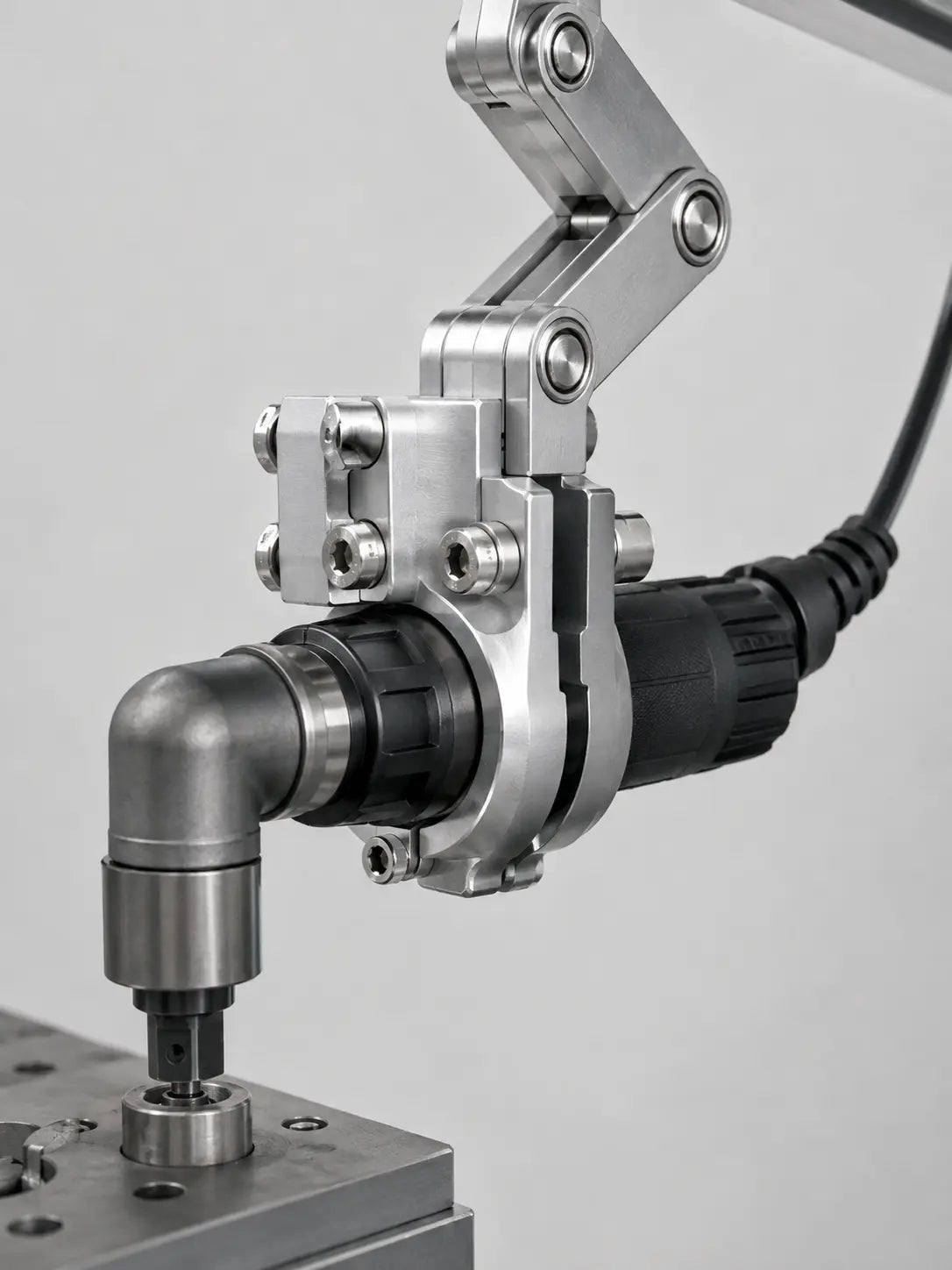

- Rigid tool connection: a machined clamp supports the cylindrical EH2-R body directly behind the angle head.
- Continuous torque path: reaction load travels through the articulated metal arm into the workstation column instead of through a hook or suspension cable.
- Controller integration: provisions can be added for Handy 2000 Lite plus or Touch controller mounting and protected cable routing.
- Application-specific fixture: arm reach, working envelope and component fixture are engineered around the joint position and target torque.
ESTIC EH2-R Angle Tool Compatibility Reference
| Compatible Model | Catalog Torque Range |
|---|---|
| EH2-R1020-A | 4–20 N·m |
| EH2-R1030-A | 6–30 N·m |
| EH2-R2050-A | 10–50 N·m |
| EH2-R2080-A | 16–80 N·m |
| EH2-R2120-A | 24–120 N·m |
| EH2-R2180-A | 36–180 N·m |
| EH2-R3270-A | 54–270 N·m |
| EH2-R3370-A | 74–370 N·m |
| EH2-R3450-A | 90–450 N·m |
| EH2-R3600-A | 120–600 N·m |
PP and BP output-shaft versions can be reviewed where listed for the selected ESTIC model. Final clamp design and arm capacity are confirmed from the exact tool code, output configuration, target torque and fastening orientation.
Typical Applications
- Engine and transmission assembly
- EV battery and powertrain production
- Axle, chassis and safety-critical fastening
- Position-controlled manual tightening cells
Available Workstation Options
- Position sensing and tightening-sequence verification
- Pass/fail indication and stack light
- Custom fixtures, sockets and reaction interfaces
- Controller bracket, cable management and data integration
For XYZ bolt-position verification and tightening-sequence error proofing, see the YEBO B046 SPC-COM position-controlled tightening workstation.
Request an Engineered Configuration
Send the complete ESTIC EH2-R model code, controller type, target torque, output shaft, fastener drawing, joint orientation, reach and traceability requirements.
