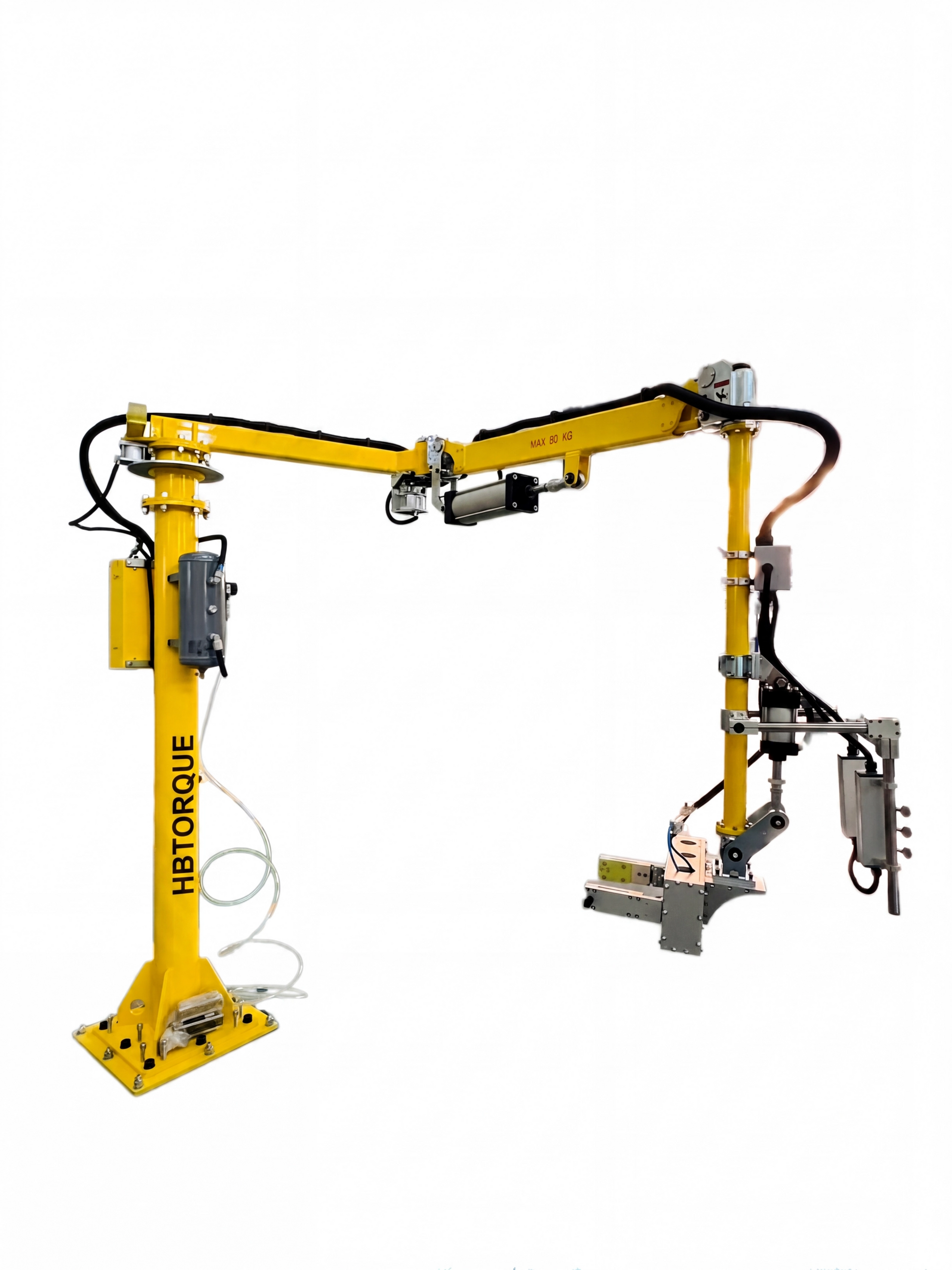

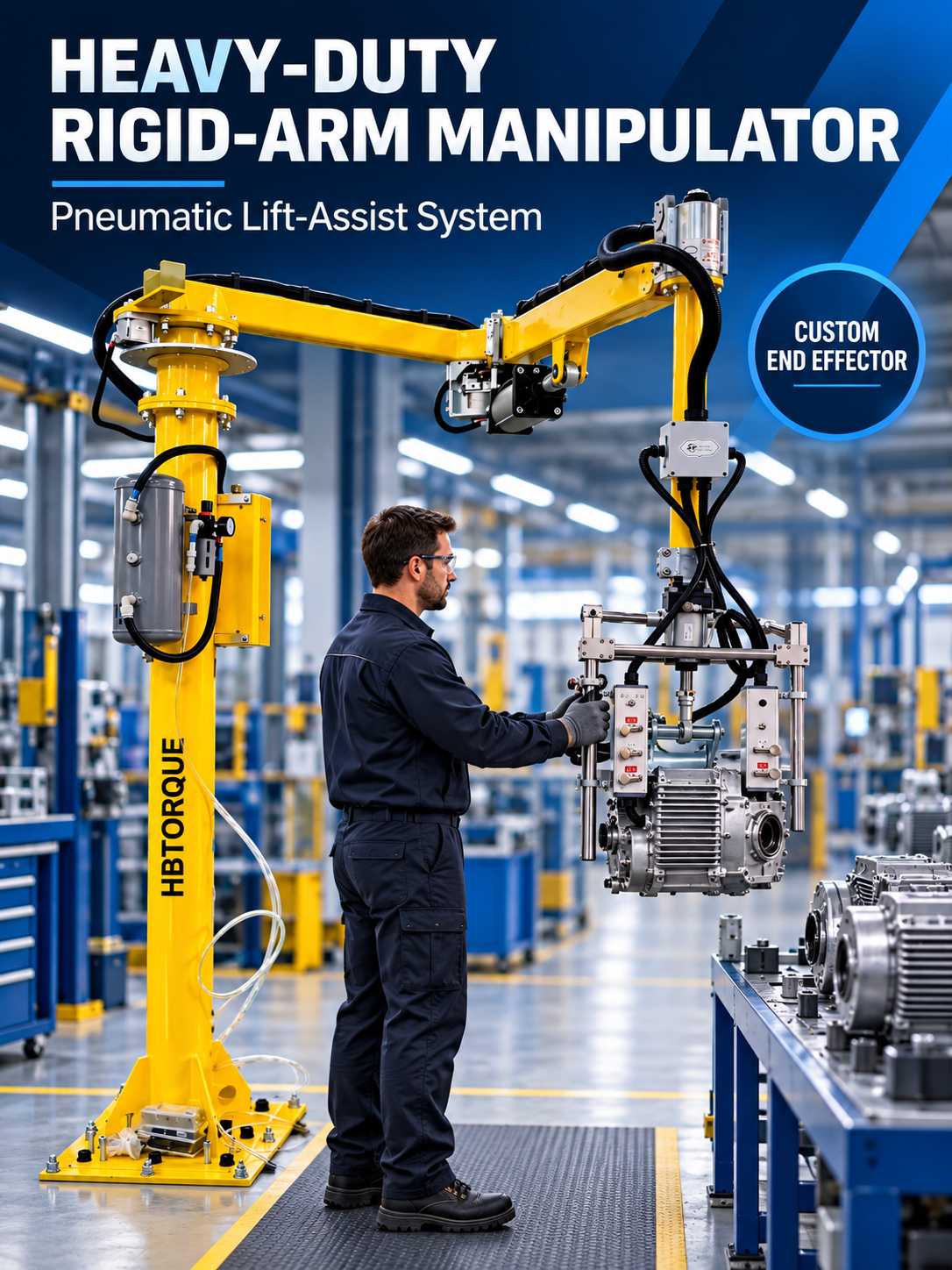

HB Torque Heavy-Duty Rigid-Arm Pneumatic Manipulator

This complete lift-assist system is engineered for controlled lifting, balancing, transfer, and positioning of heavy or difficult industrial components. Its rigid articulated arm supports stable operator-guided movement, while the end effector is selected or engineered around the actual workpiece and assembly sequence.

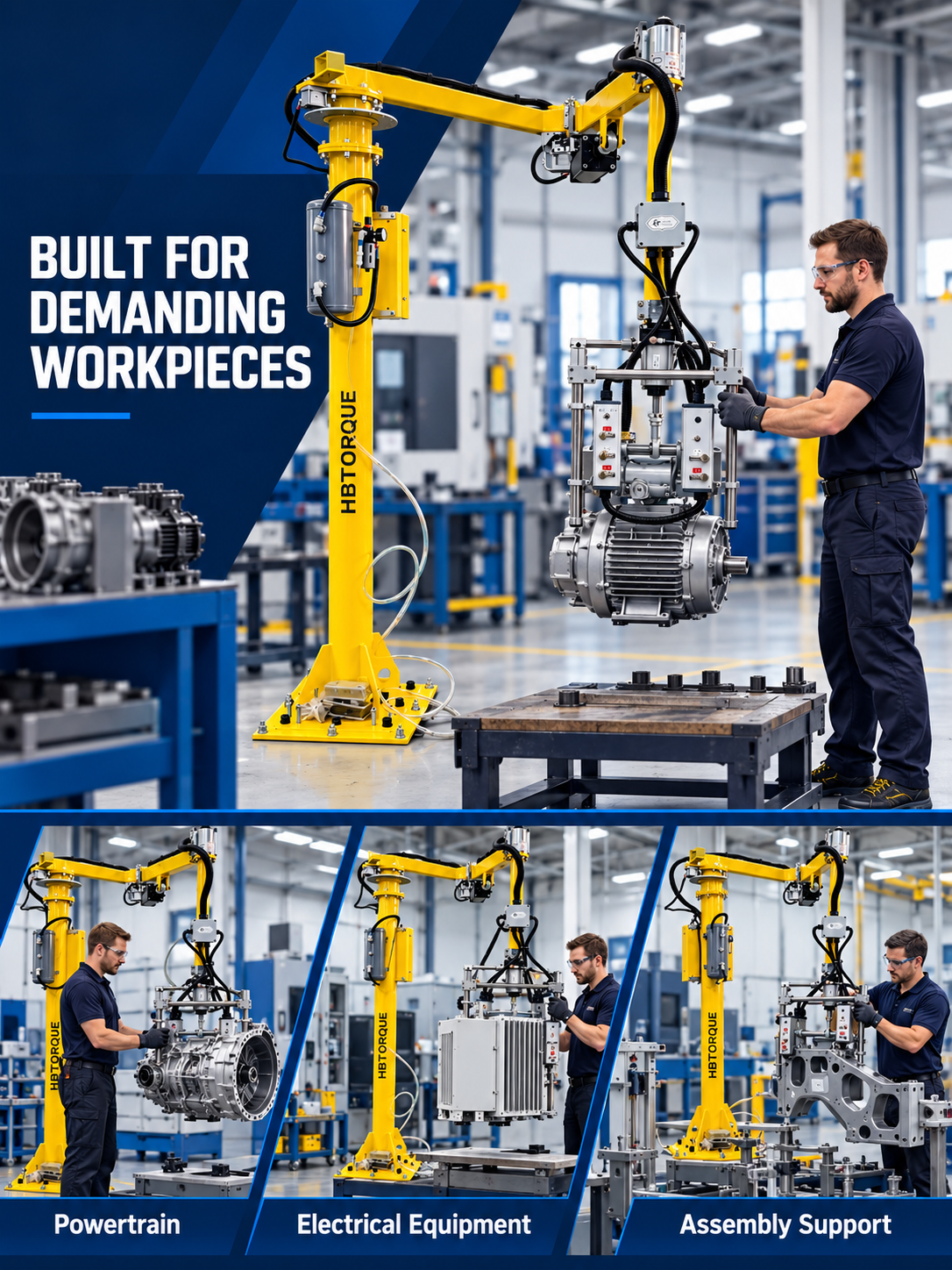

Typical Applications

• Engine, motor, gearbox, and powertrain component handling.
• Industrial electrical equipment and switchgear positioning.
• Structural parts and other bulky manufactured components.
• Machine loading, workstation transfer, assembly, and controlled placement.

Why Use a Rigid-Arm Manipulator?

A rigid-arm configuration can be considered where workpiece stability, guided movement, and controlled positioning are important. The correct arm geometry and working envelope depend on the load, required reach, pickup and placement coordinates, surrounding equipment, and operator access.

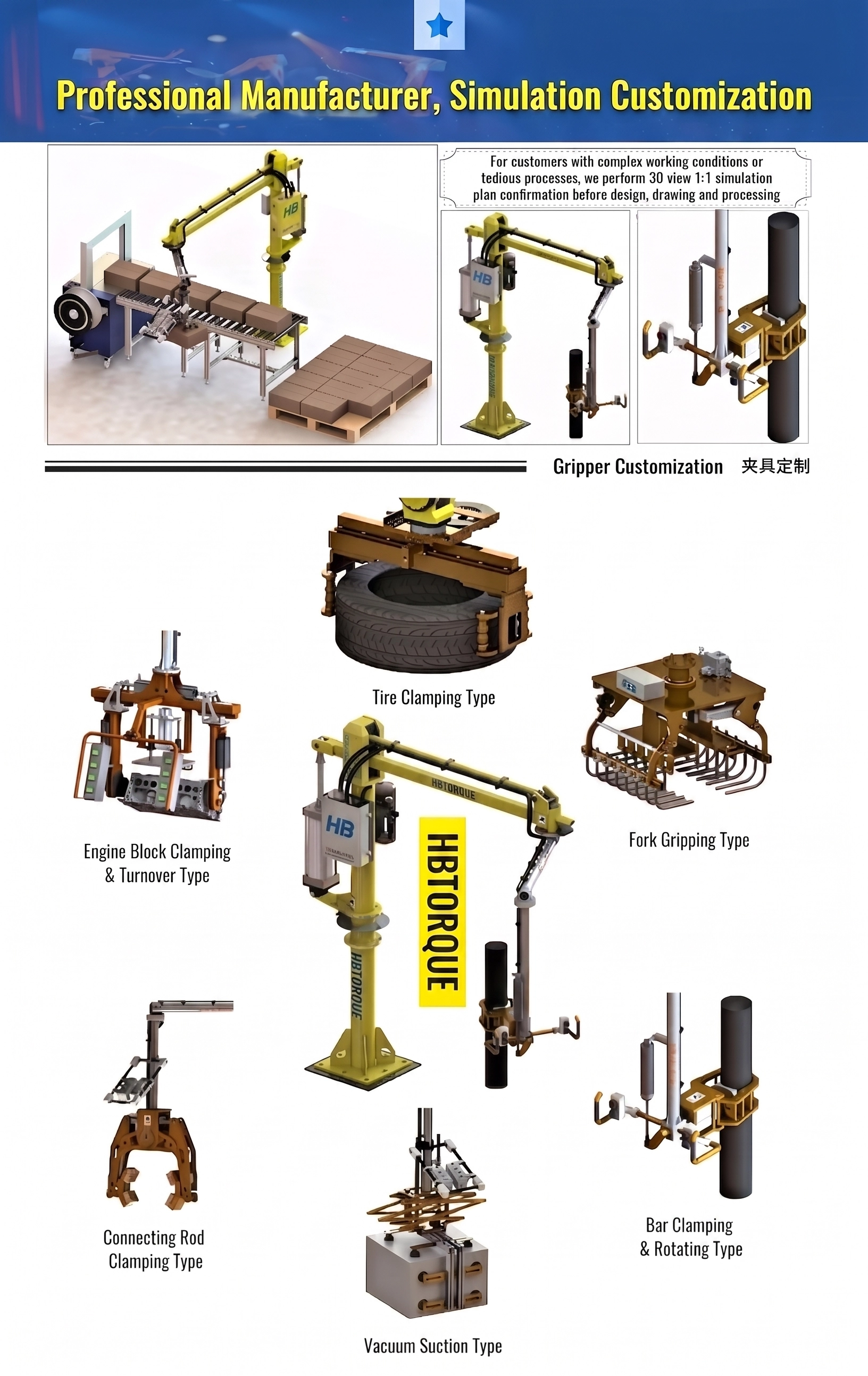

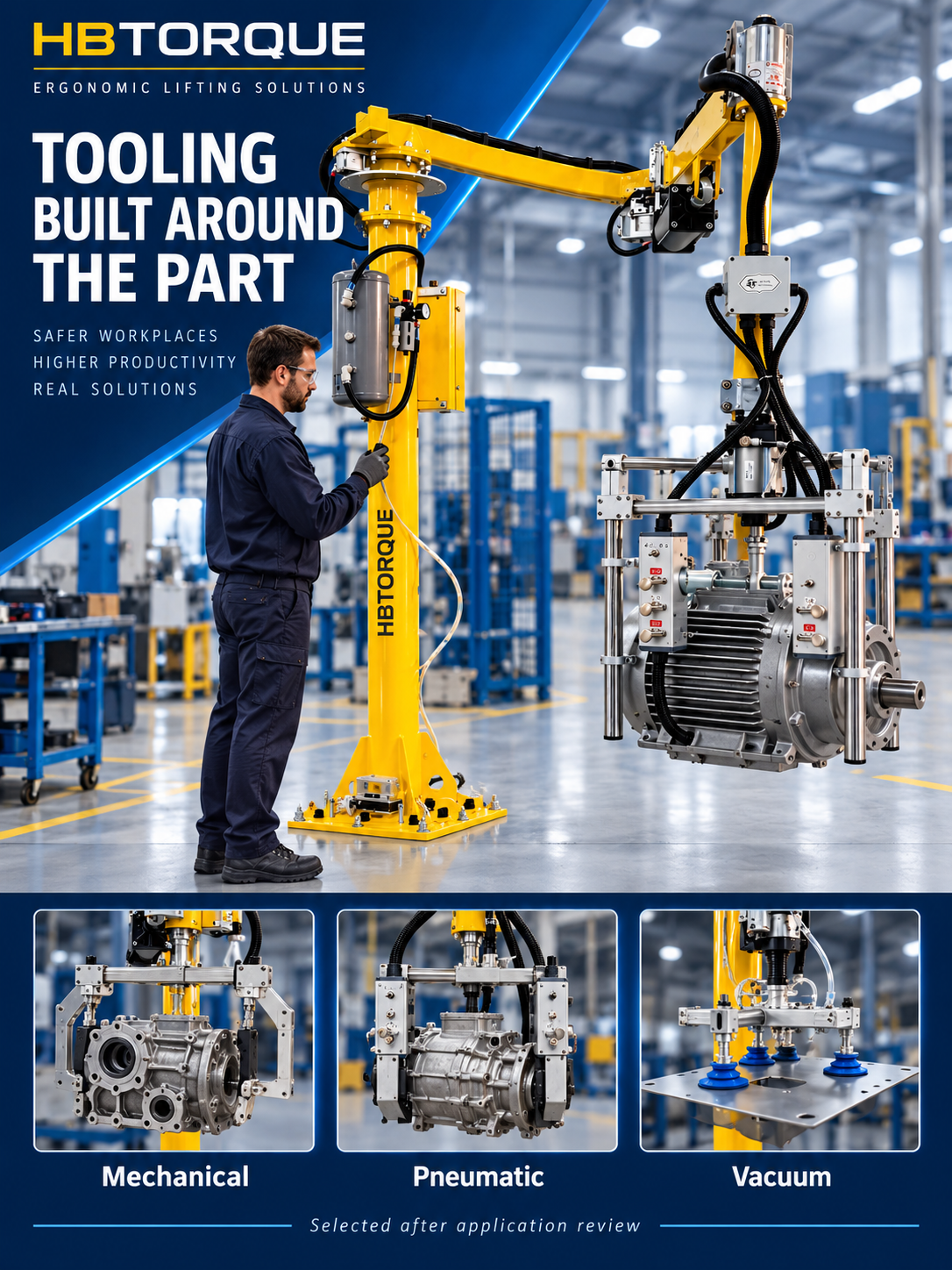

Application-Specific End Effectors

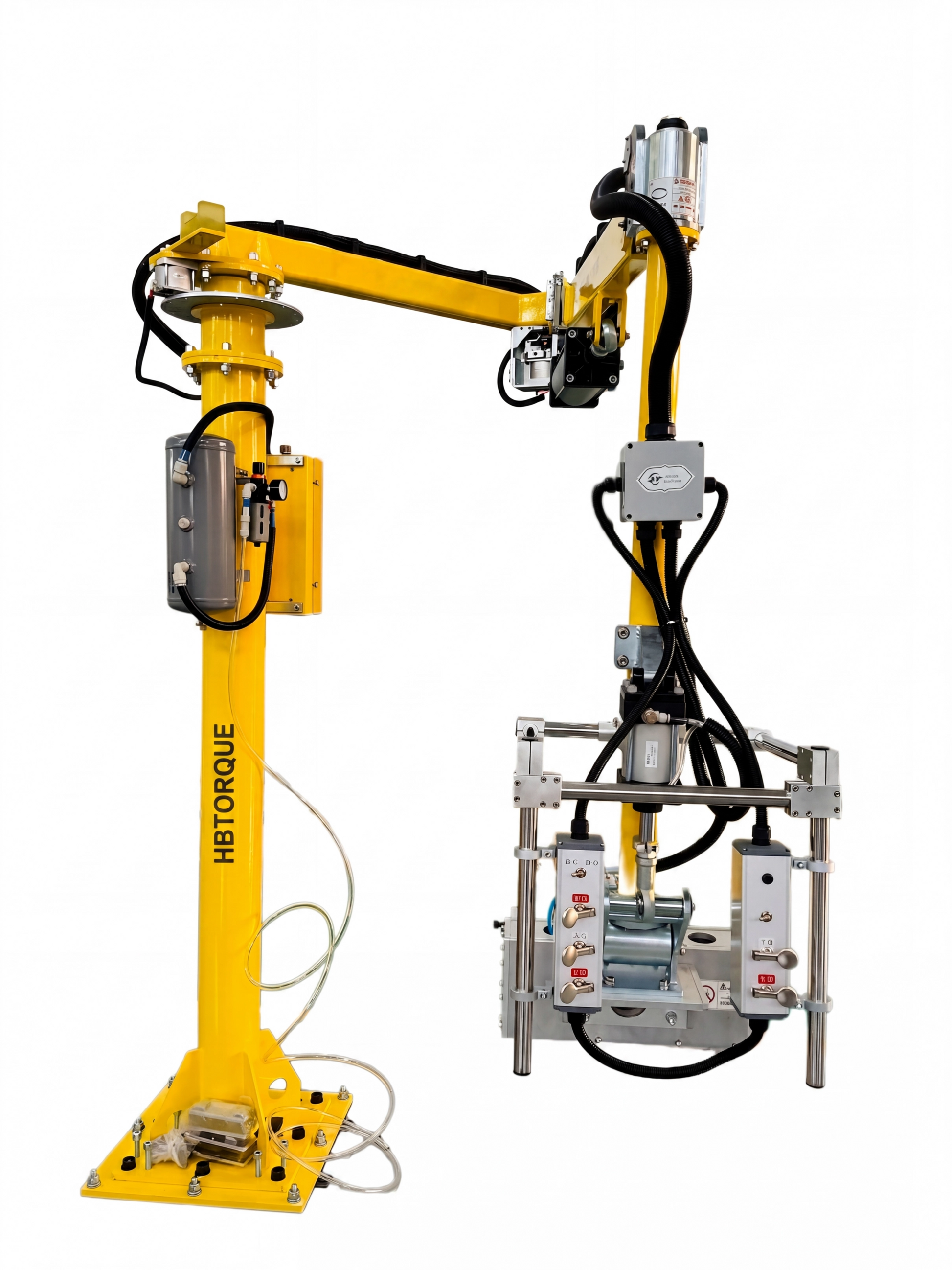

The featured configuration uses a framed mechanical and pneumatic gripping concept for a powertrain-style component. Other tooling approaches can be evaluated when appropriate:

• Mechanical gripping: for defined edges, holes, shafts, or approved structural contact points.
• Pneumatic clamping: for controlled engagement with application-specific interfaces.
• Vacuum tooling: only for workpieces with suitable surfaces and available suction area.

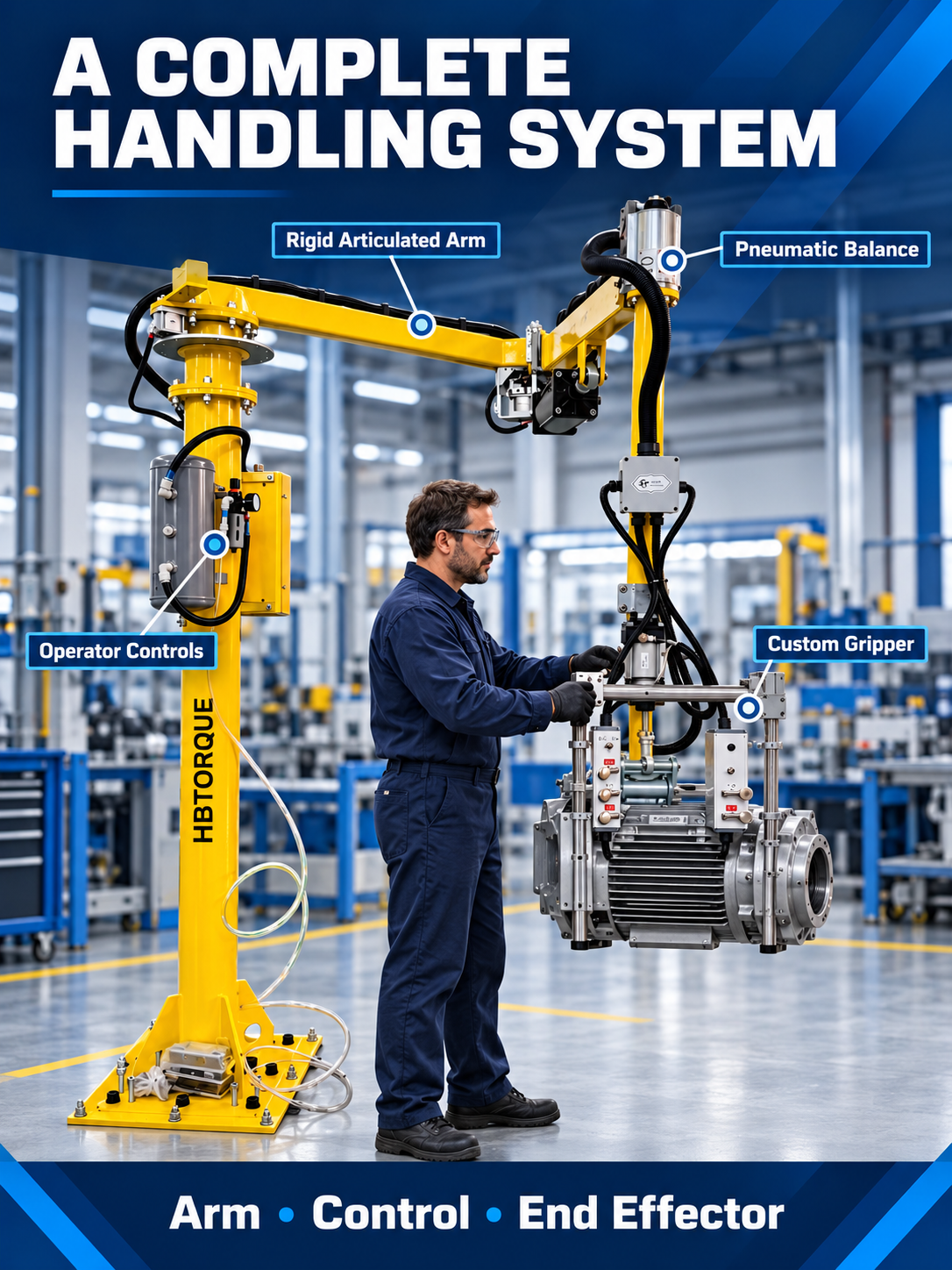

Complete System Scope

The engineered solution can include the mounting column or support structure, rigid articulated arm, pneumatic balancing components, operator handle and controls, service routing, and custom end-of-arm tooling. Final configuration is confirmed after the workpiece and station layout have been reviewed.

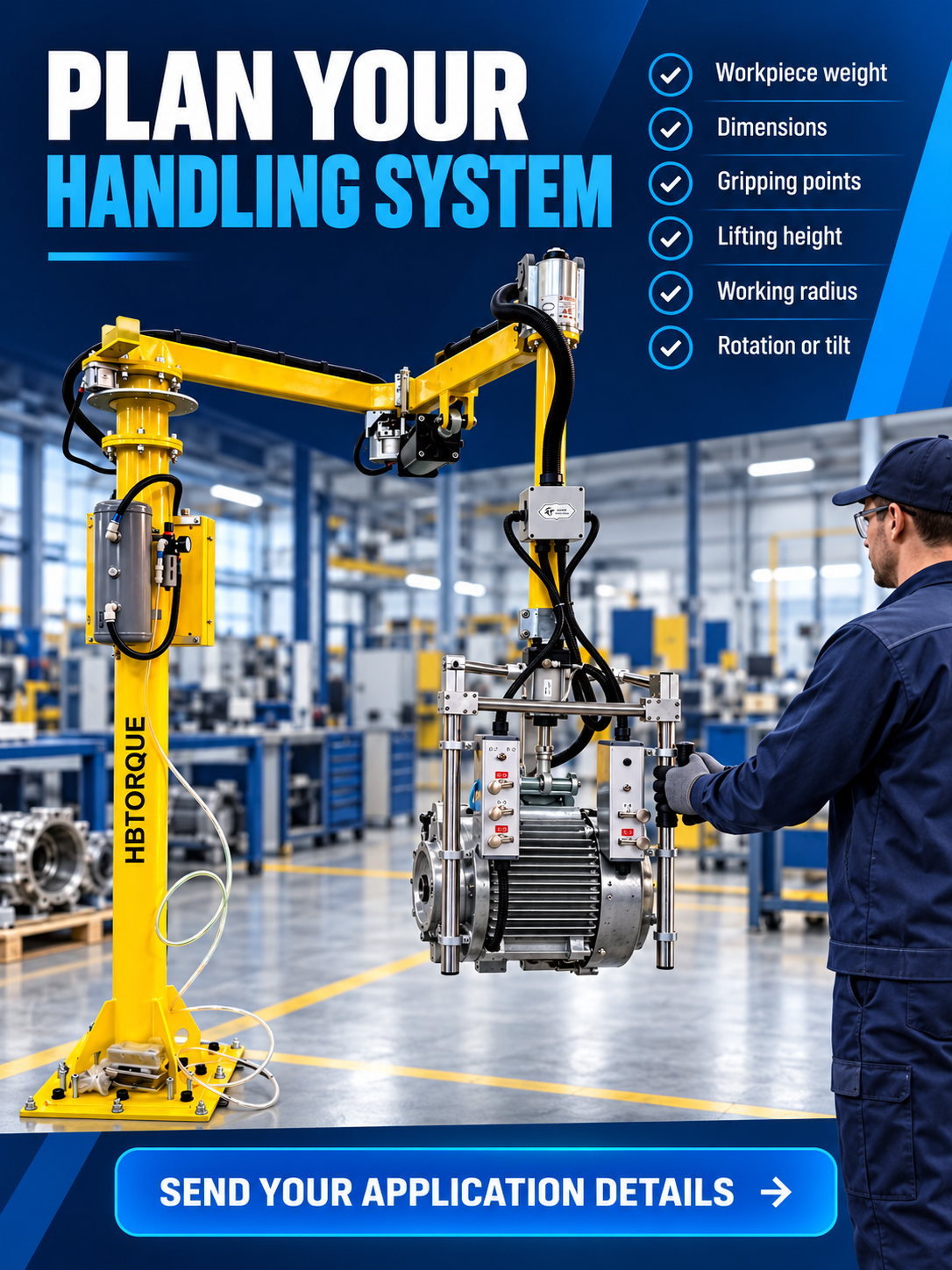

Information Needed for Selection

• Workpiece weight, dimensions, material, and center of gravity.
• Approved gripping or support points and restricted contact areas.
• Pickup and placement positions, lifting height, and working radius.
• Required orientation, rotation, tilt, or assembly alignment.
• Available pneumatic supply and installation-space information.
• Workpiece drawings, photos, and workstation layout.

Frequently Asked Questions

Can the gripper be customized?

Yes. Mechanical, pneumatic, or suitable vacuum concepts can be evaluated around the workpiece geometry, stable gripping points, and handling sequence.

When should a rigid arm be considered instead of a folding arm?

A rigid arm may suit applications prioritizing stable, controlled positioning. A folding arm provides a different working envelope. Selection should be based on the actual load, reach, motion, and workstation layout.

Can the system rotate or tilt a component?

Rotation or tilt can be evaluated when the workpiece center of gravity, required angle, gripping points, clearances, and placement process are supplied.
