TS Series T-Shaped Industrial Manipulator | Assisted Material Handling Arm

Name: TS Series T-Shaped Industrial Manipulator | Assisted Material Handling Arm
Brand: Hbtorque

$9,500.00 USD

Sale Engineered to Order

Need a TS Series handling configuration? Send your workpiece weight and dimensions, pickup/placement heights, movement distance, station footprint, preferred movement method and required gripping/rotation/flip motion. Request a Quote

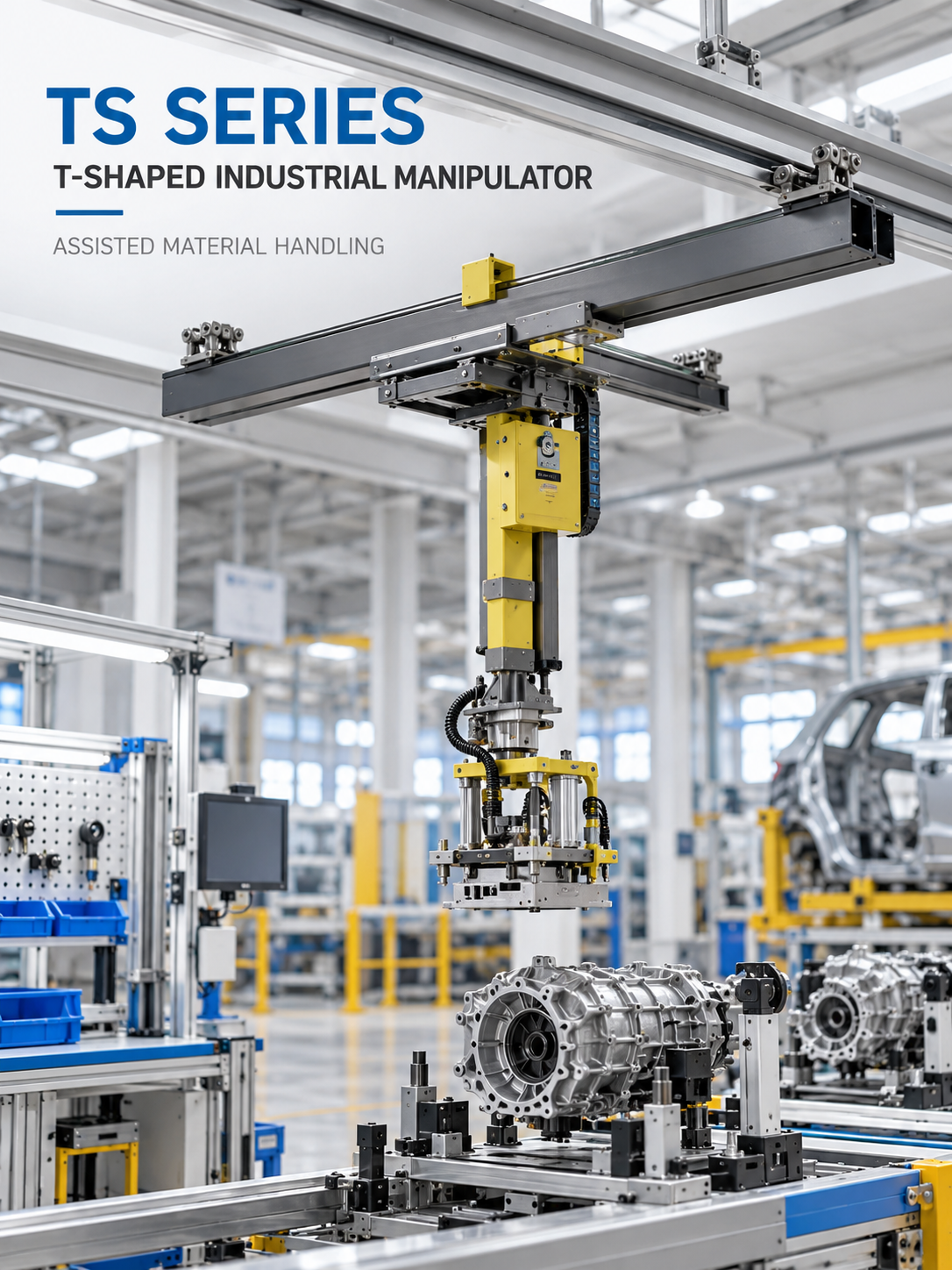

TS Series T-Shaped Industrial Manipulator

The TS Series is a T-shaped industrial robotic arm designed for assisted material handling and workstation lifting. The series can be configured with different drive methods to match the load and production process.

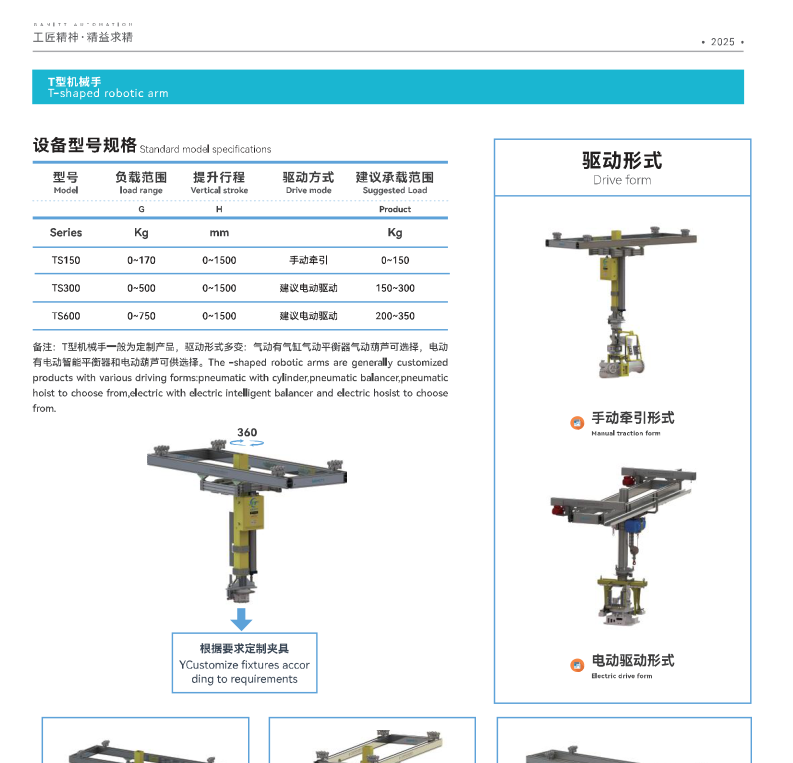

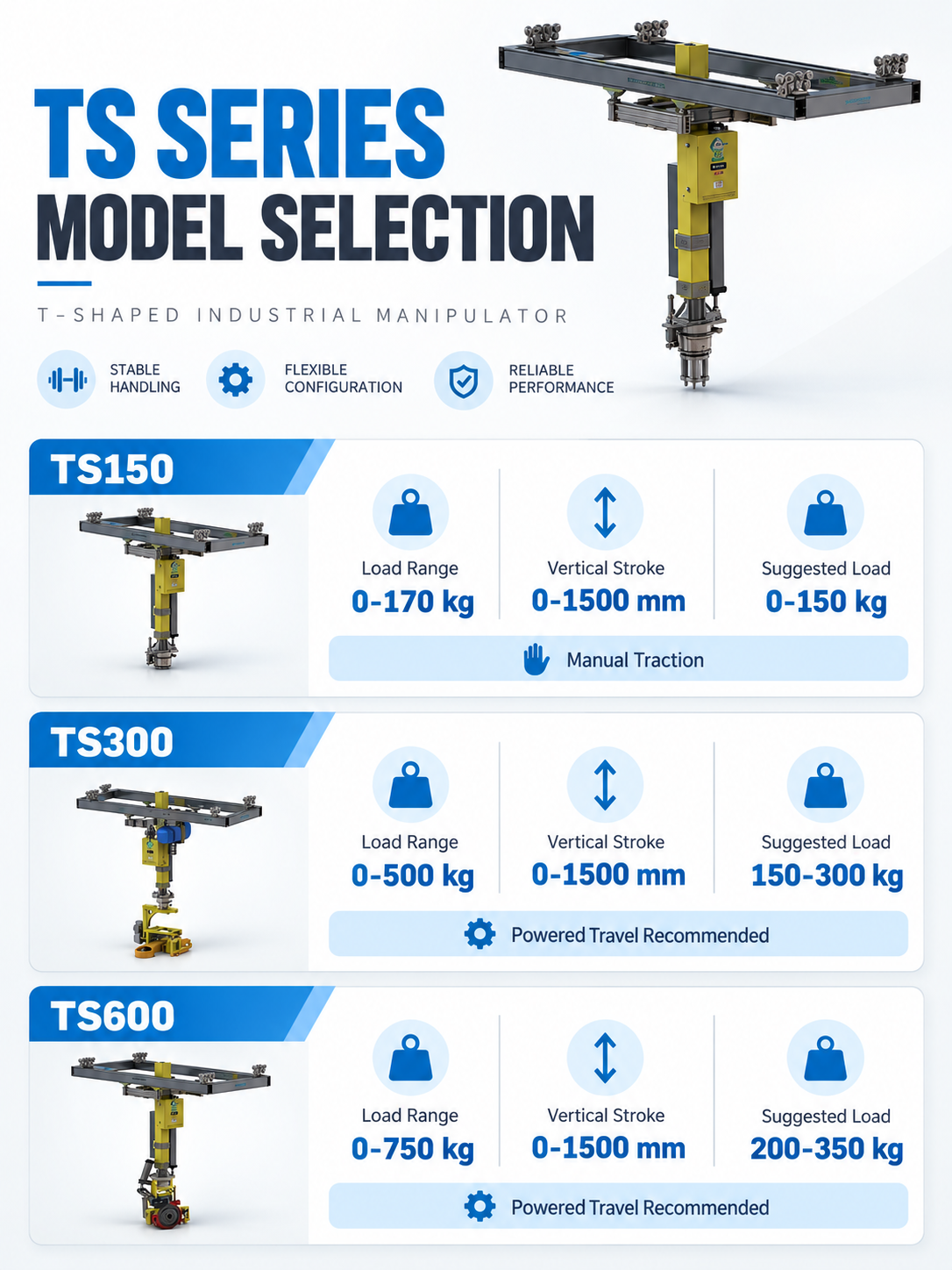

Series Overview

TS150: load range 0–170 kg, vertical stroke 0–1500 mm, manual traction, recommended load 0–150 kg.
TS300: load range 0–500 kg, vertical stroke 0–1500 mm, powered roller-assisted movement, recommended load 150–300 kg.
TS600: load range 0–750 kg, electric traction-assisted movement, recommended load 200–350 kg.

Key Features

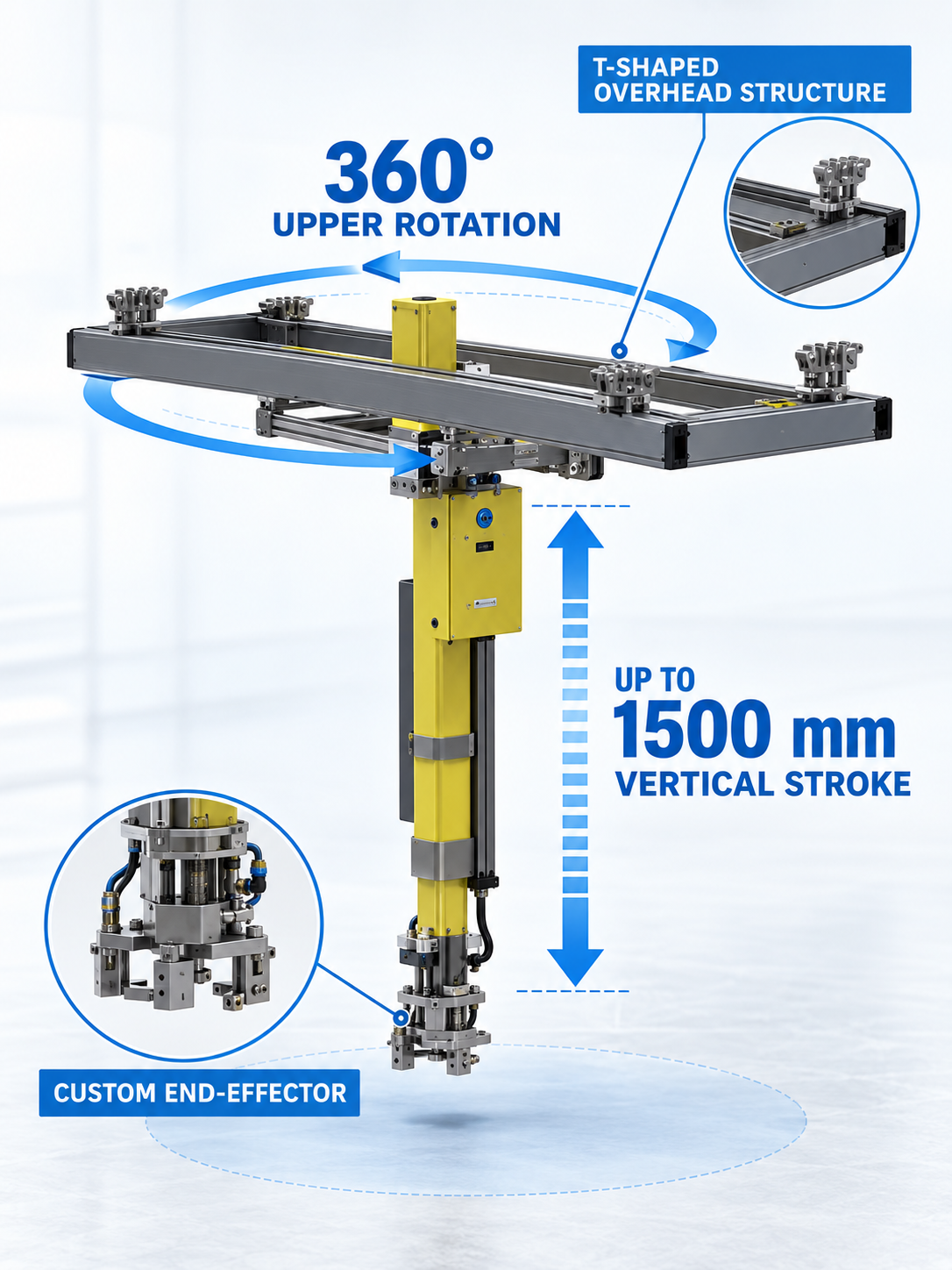

T-shaped overhead-style arm structure.

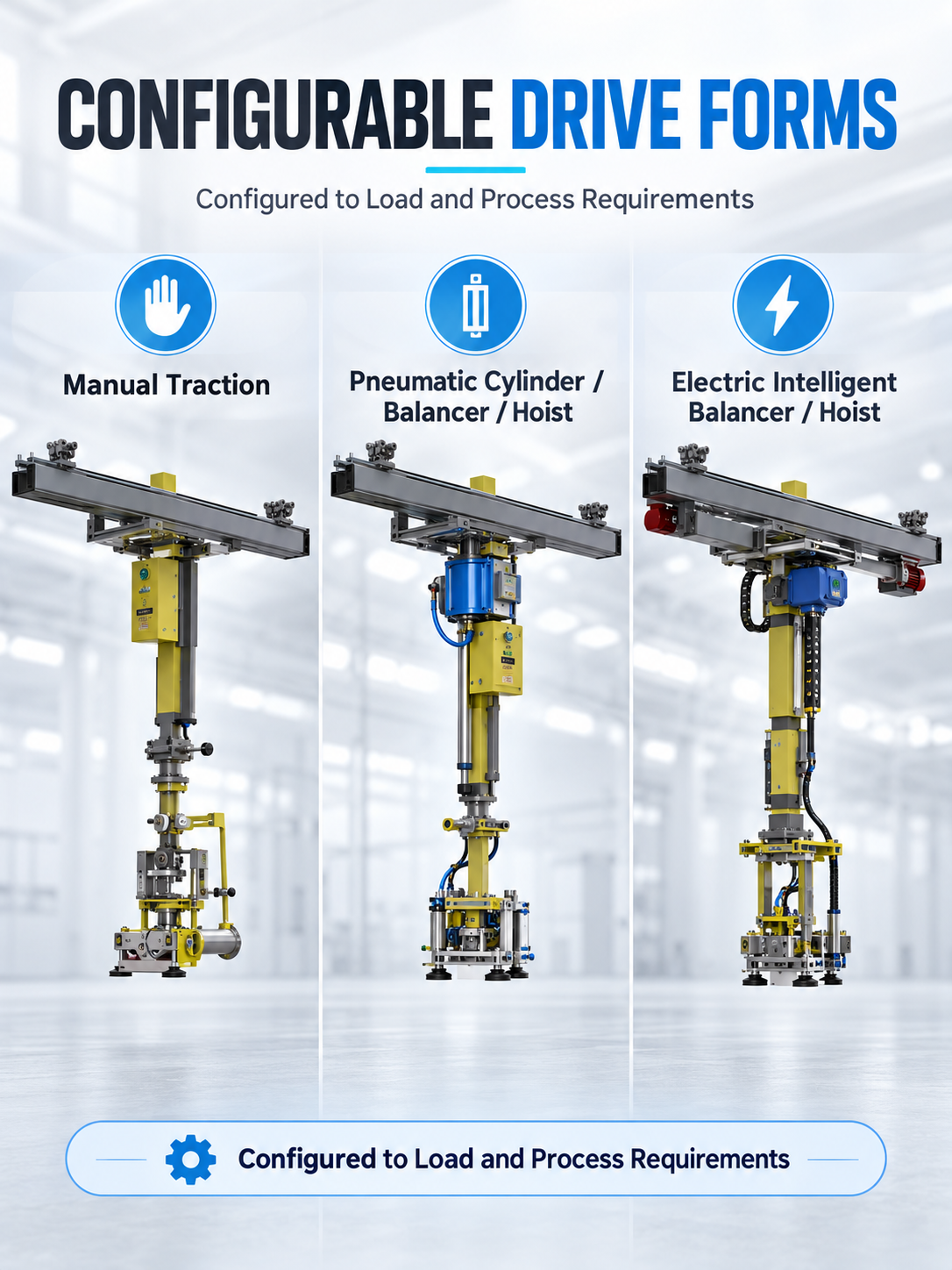

Different drive configurations for different load requirements.
Custom fixtures can be engineered according to the workpiece.
Designed for repetitive industrial lifting, assembly and positioning tasks.

Send HB Torque the workpiece weight, dimensions, lifting height and process requirements for model selection and fixture design.

Applications & Selection Logic

The TS Series is suited to repetitive lifting and positioning where the working area benefits from a T-shaped overhead-style structure. Model selection depends on the real handling load as well as how the operator or powered system must move the arm.

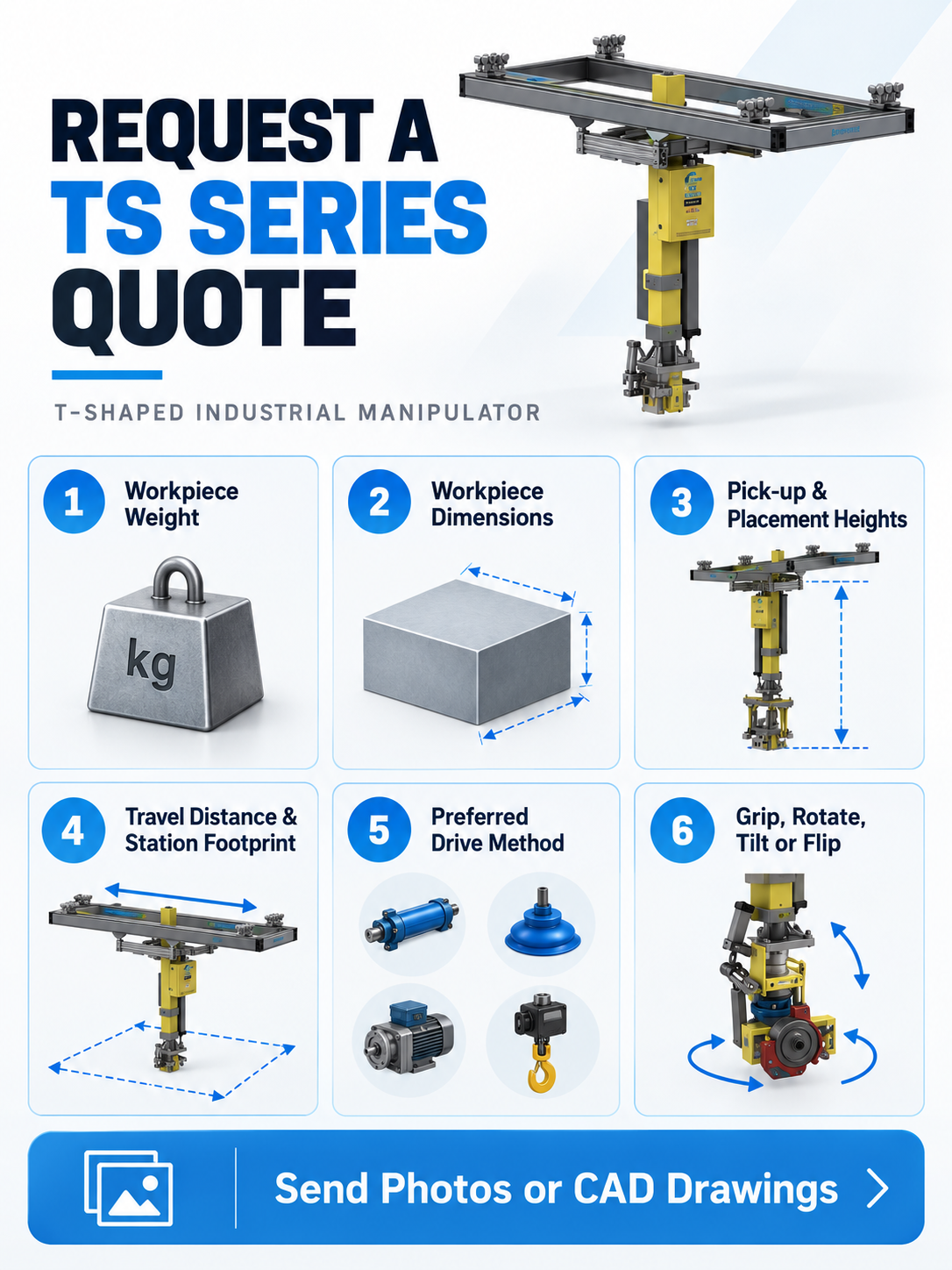

What We Need for Model Selection

Workpiece weight and dimensions.
Pick-up and placement height.
Required movement distance and station footprint.
Need for manual traction, assisted movement or powered travel.
Required gripping, rotation, tilt or flipping function.

Custom Fixture Engineering

Fixtures and end-effectors can be designed around the workpiece geometry and handling sequence. Send photos or drawings showing stable gripping areas and the required final orientation.

Request a Quote

Send your workpiece and process details for TS model and fixture selection, or browse other Industrial Manipulators.

Frequently Asked Questions

What information is needed to select a TS Series manipulator?

Provide workpiece weight and dimensions, pick-up and placement heights, required travel distance, station footprint, desired movement method and any gripping, rotation, tilt or flipping requirement.

What is the difference between TS150, TS300 and TS600?

TS150 has a 0–170 kg load range and manual traction. TS300 has a 0–500 kg load range with powered roller-assisted movement. TS600 has a 0–750 kg load range with electric traction-assisted movement. The suggested operating load and the actual process should also be considered during selection.
