Need a rail-suspended handling system? Send the workpiece weight and dimensions, required structure length, width and height, rail coverage area, pick-up and placement points, number of workstations and required motion. Request an S Series Proposal
S Series Rail-Suspended Industrial Manipulator System

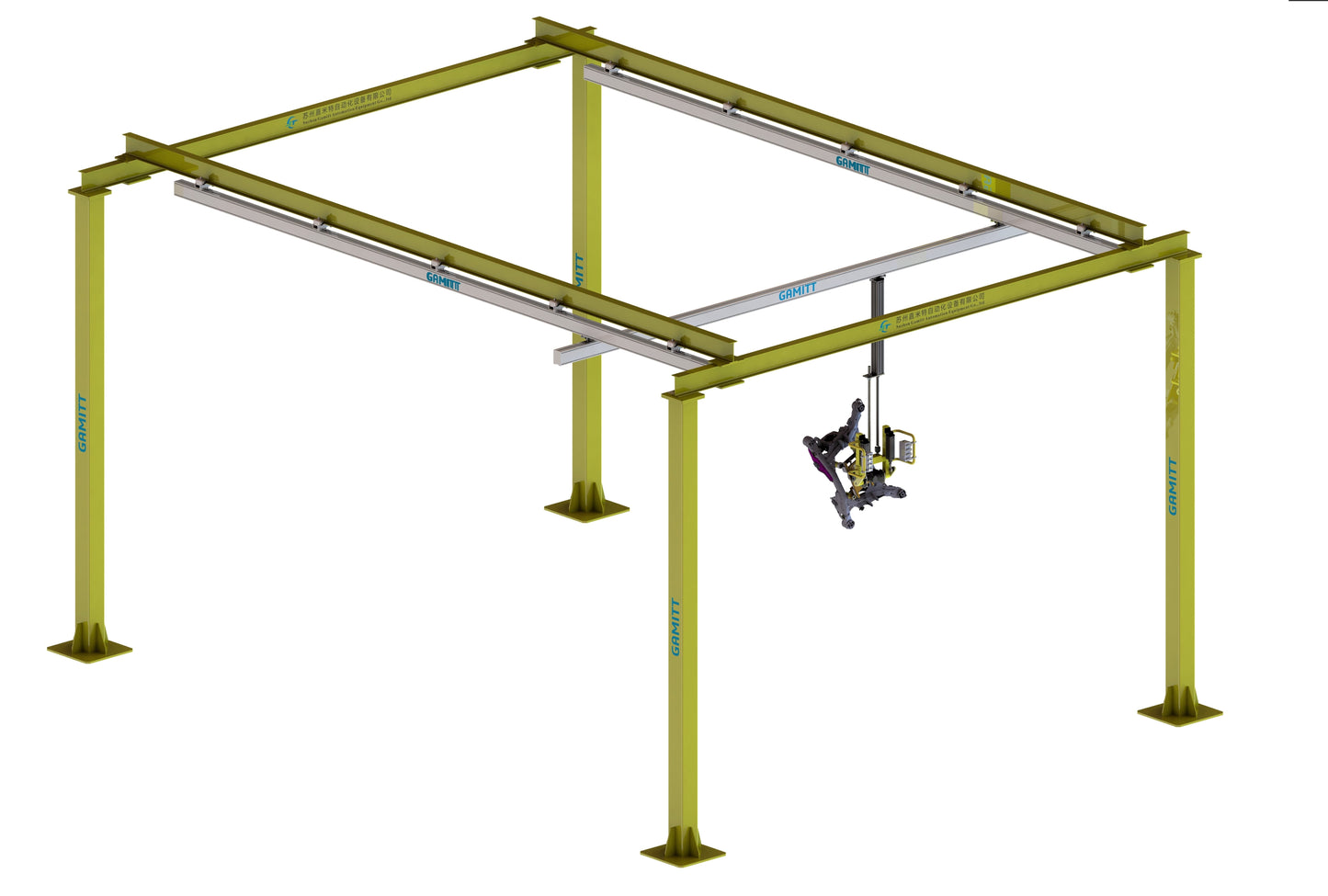

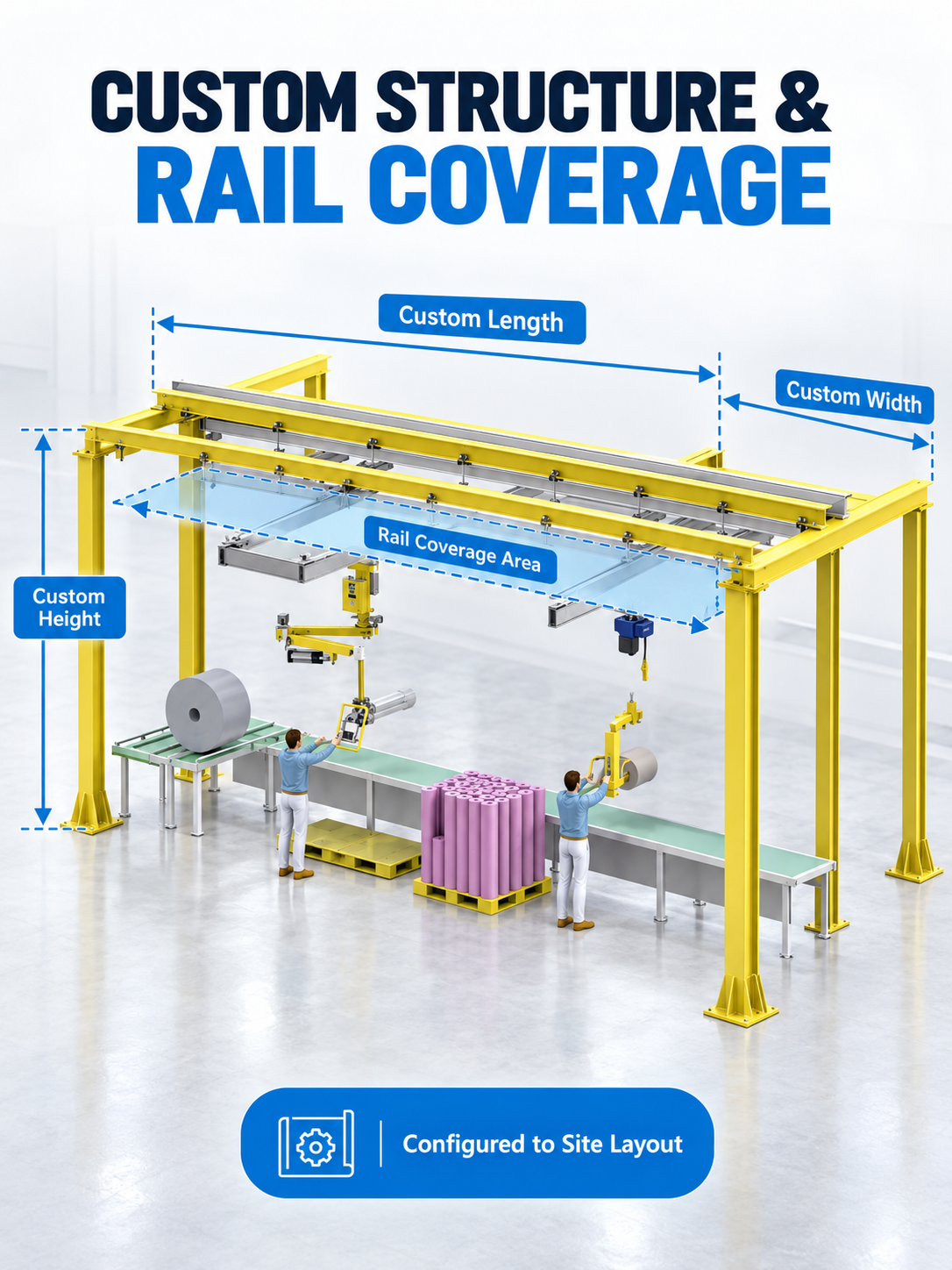

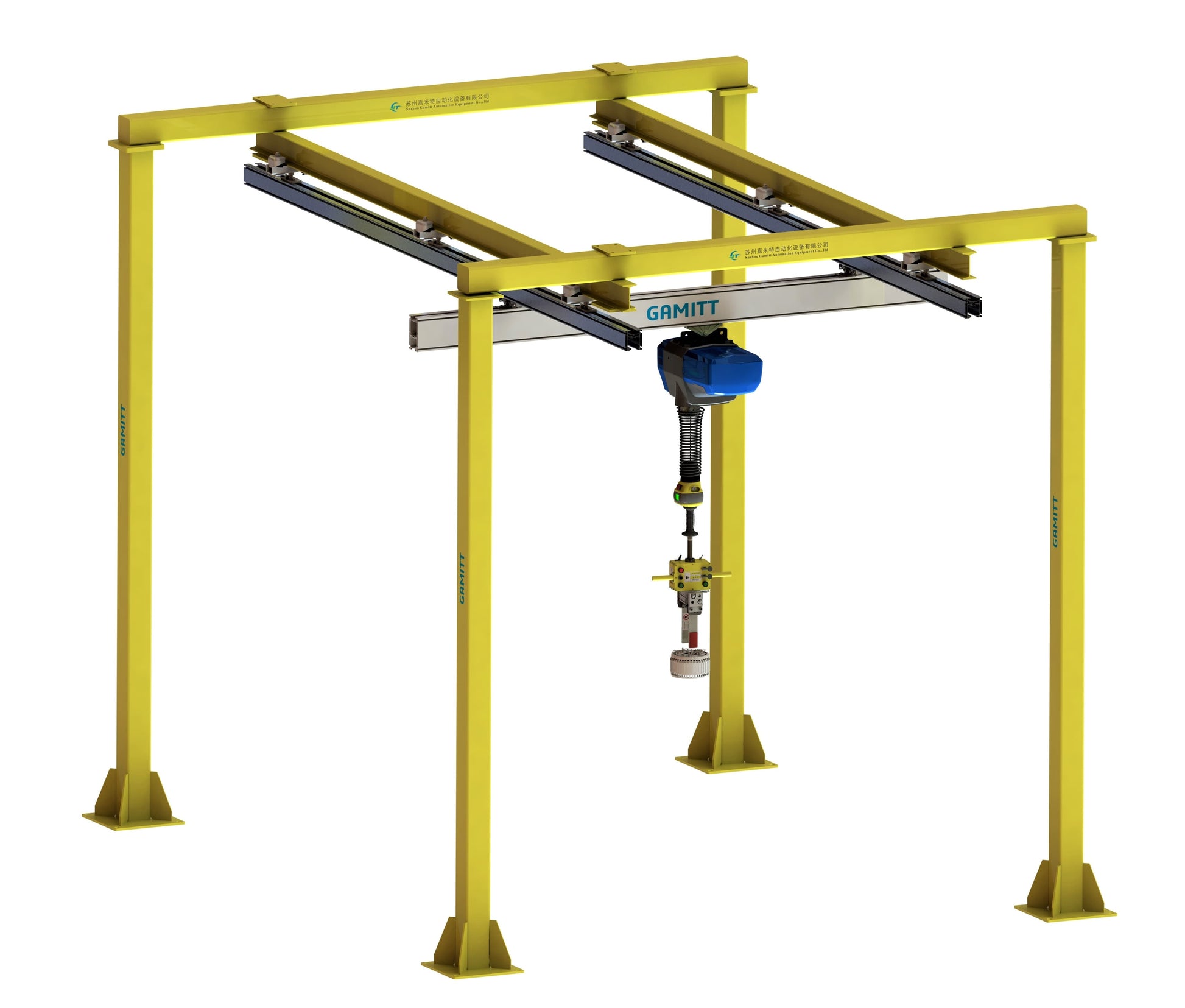

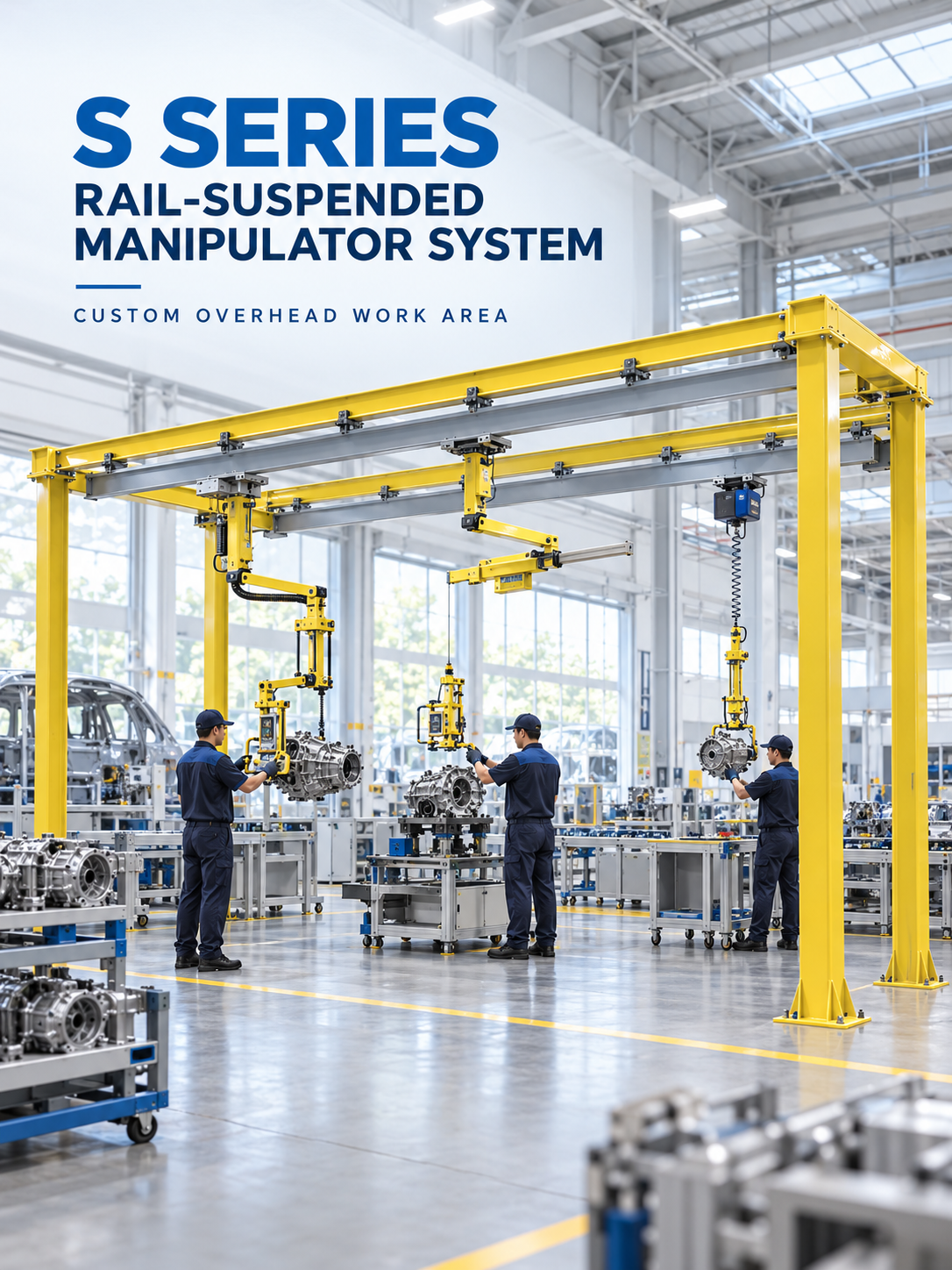

The S Series is a custom overhead material-handling system combining a freestanding steel structure, rail coverage and application-specific lifting equipment. The structure length, width, height and rail working area are engineered around the site layout and production process.

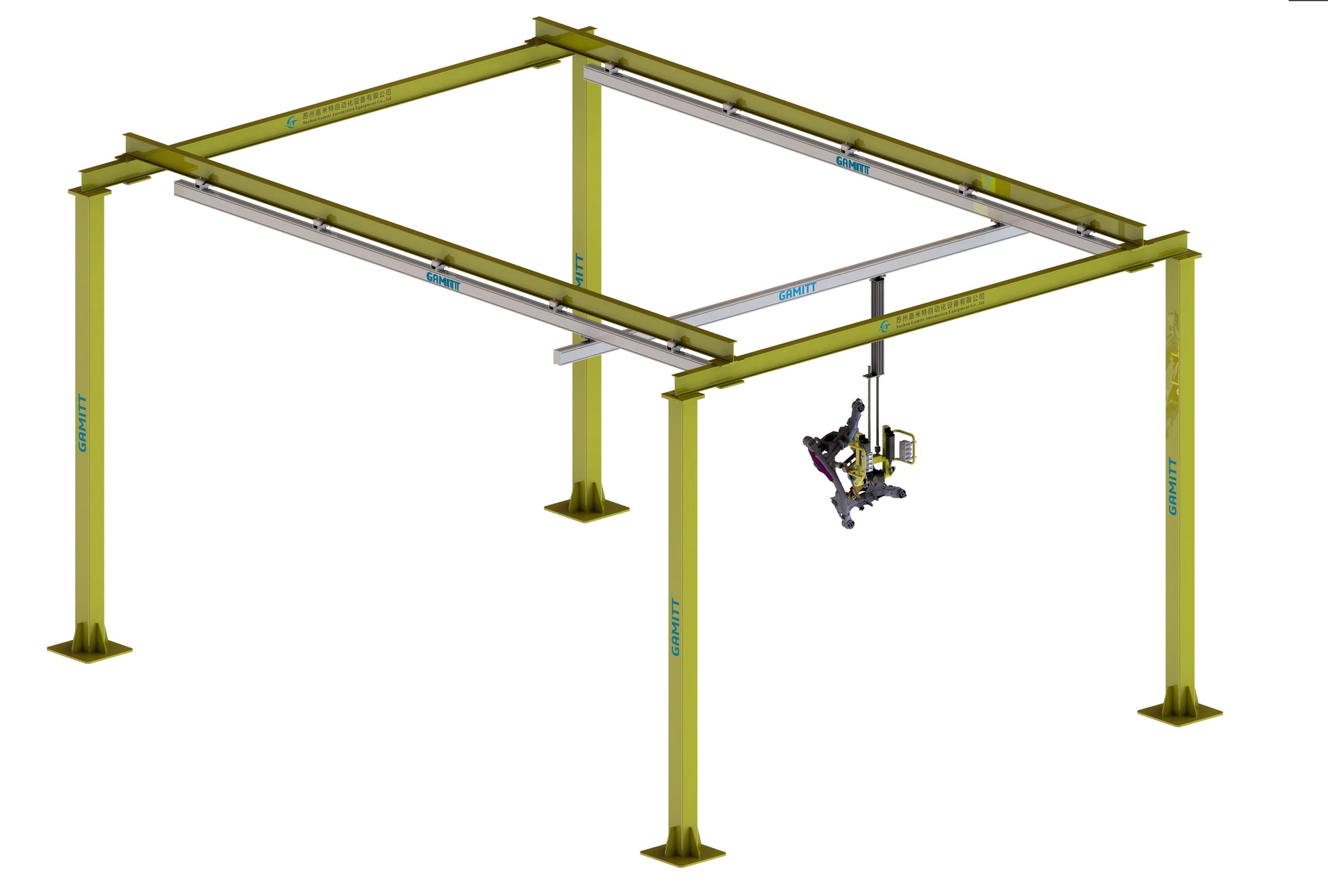

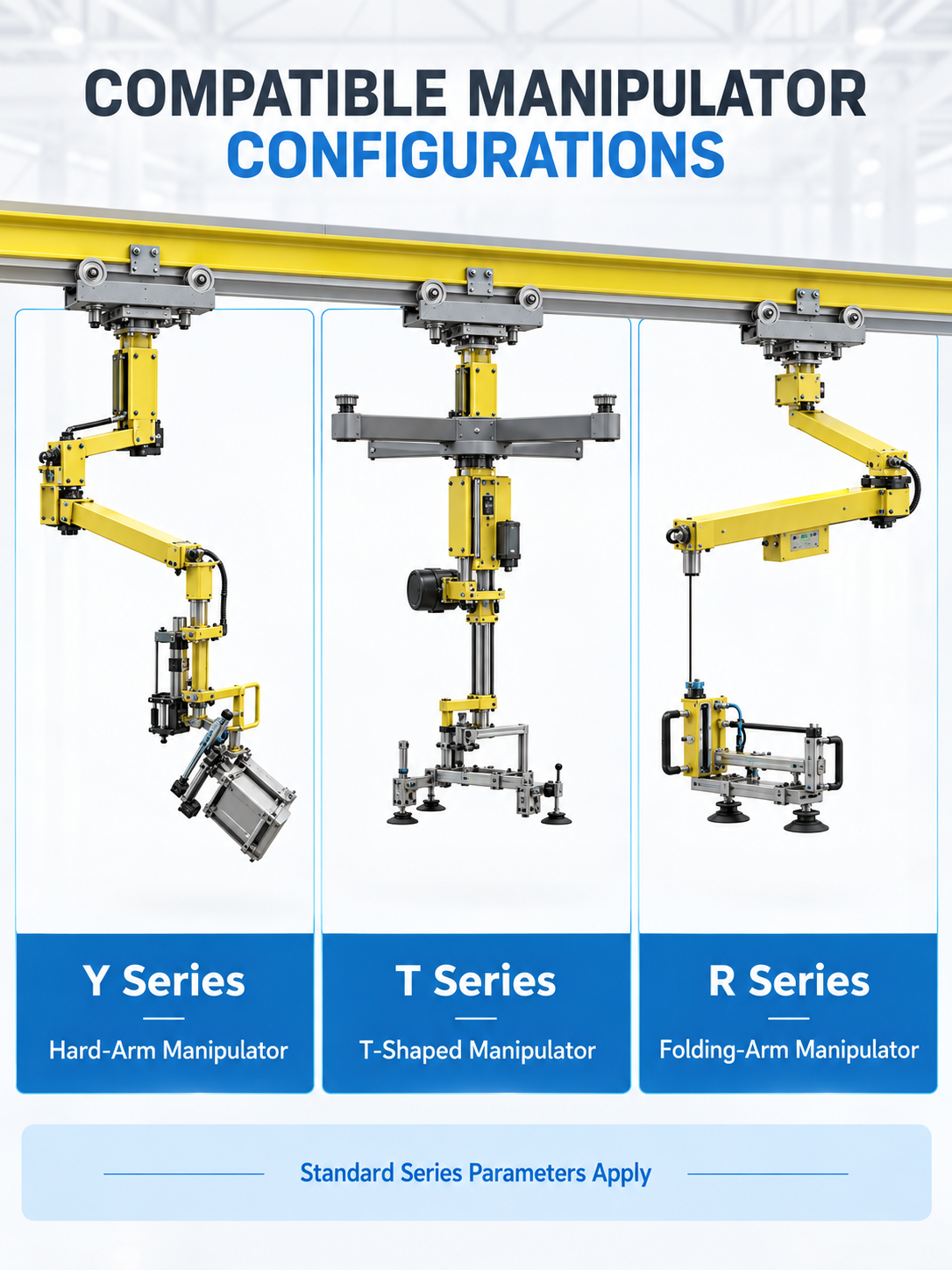

Compatible Manipulator Configurations
- Y Series: hard-arm manipulator configurations.
- T Series: T-shaped manipulator configurations.
- R Series: folding-arm manipulator configurations.
The applicable standard model parameters of the selected Y, T or R Series manipulator still apply when integrated with the S Series rail structure.

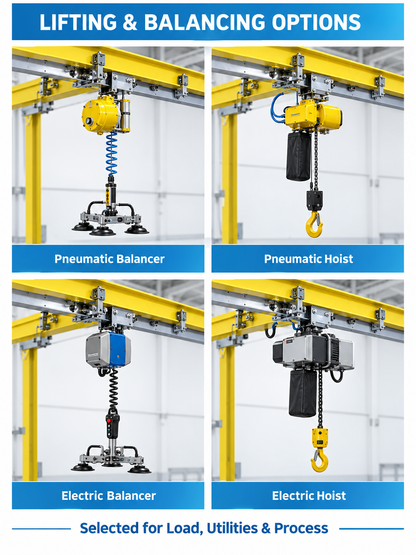

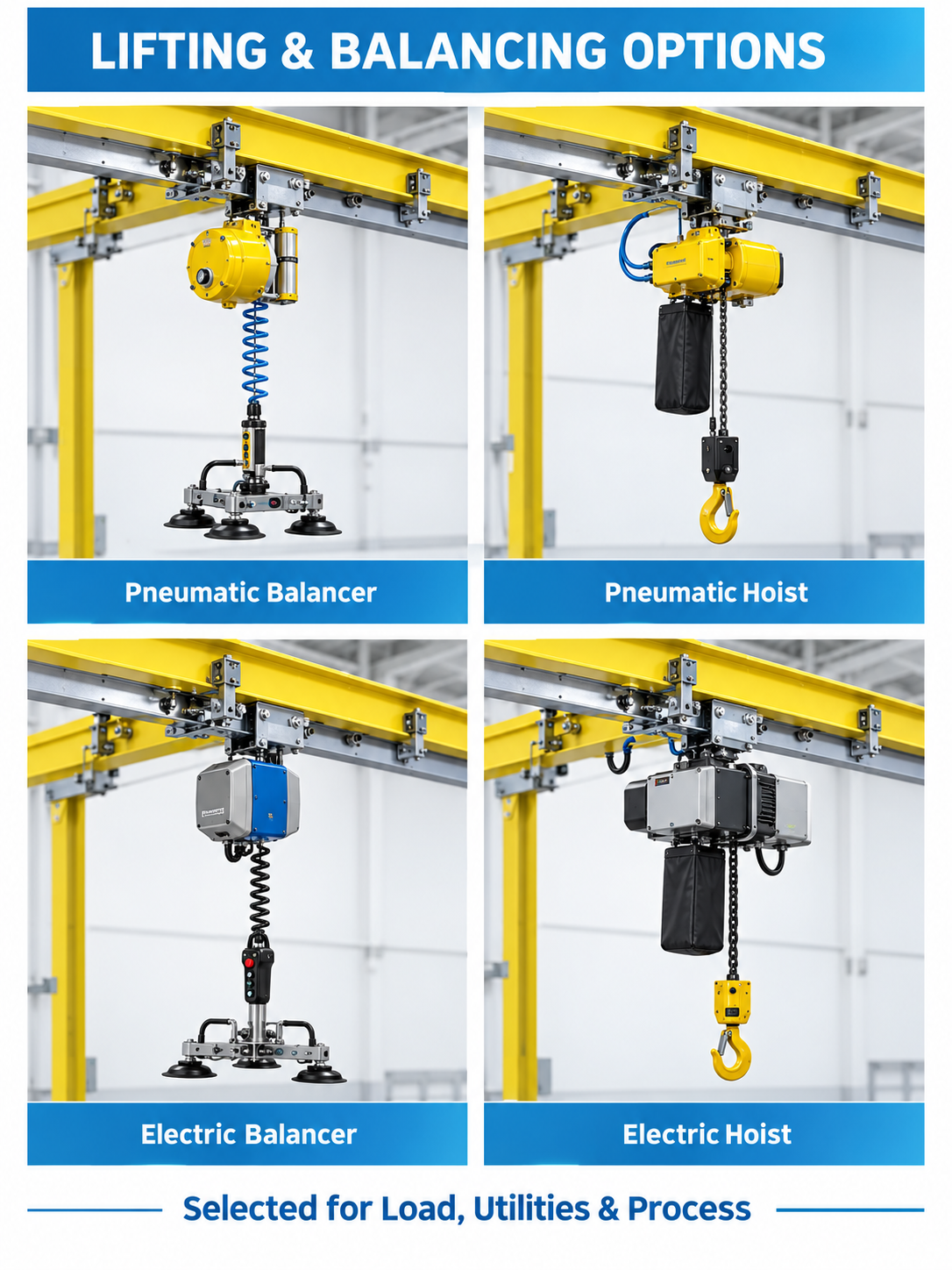

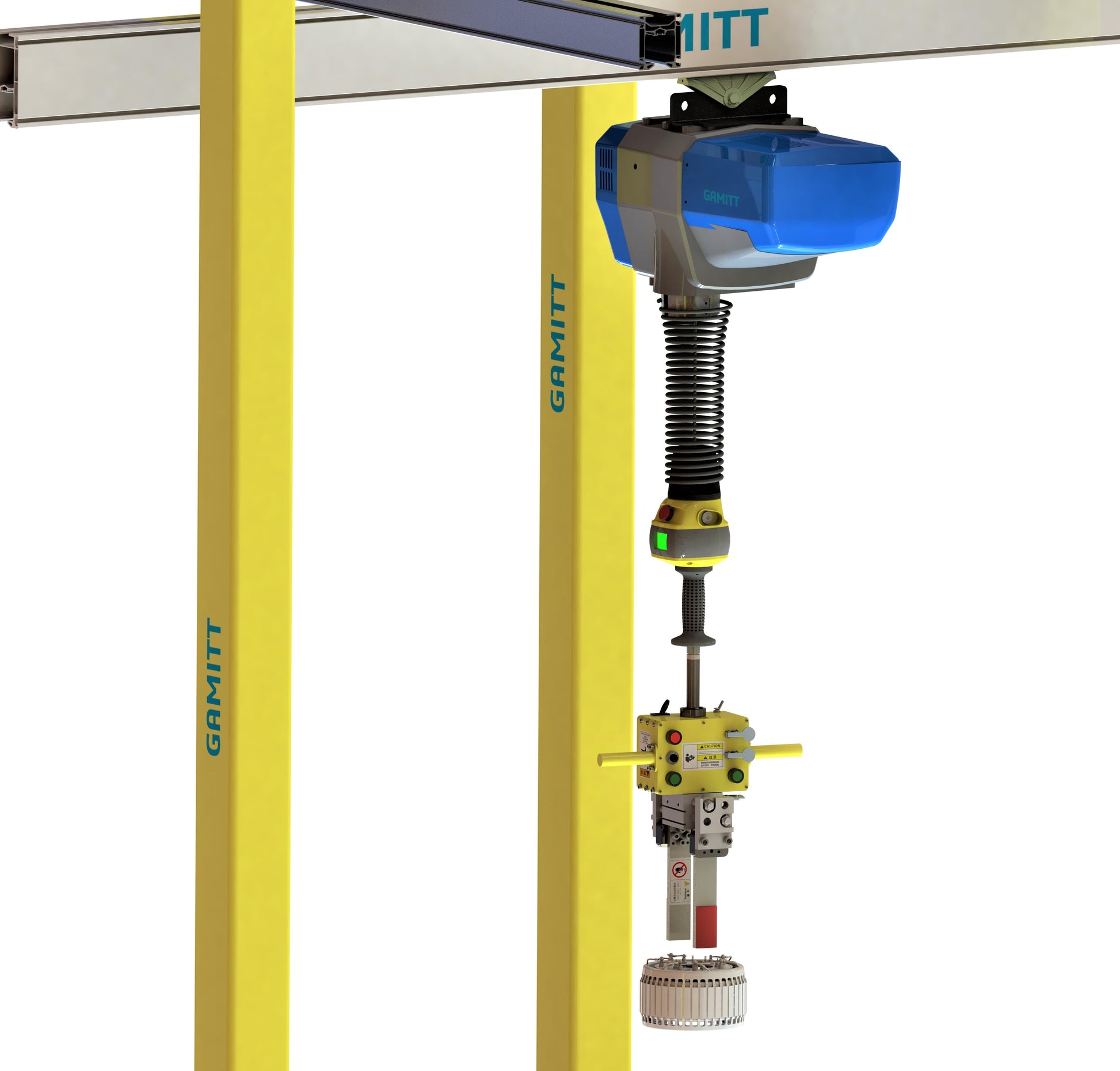

Lifting and Balancing Options
- Pneumatic balancer
- Pneumatic hoist
- Electric balancer
- Electric hoist
Typical Applications

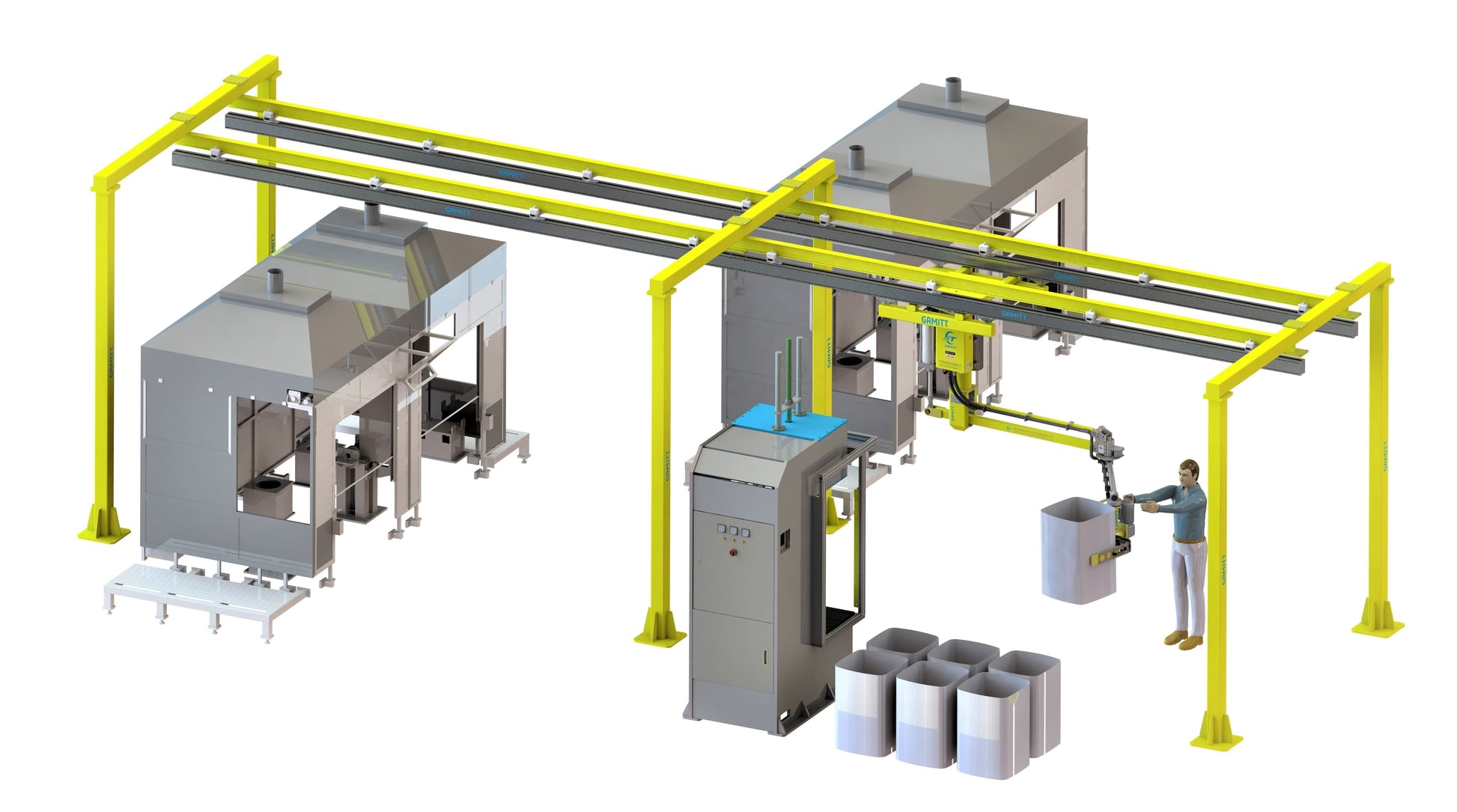

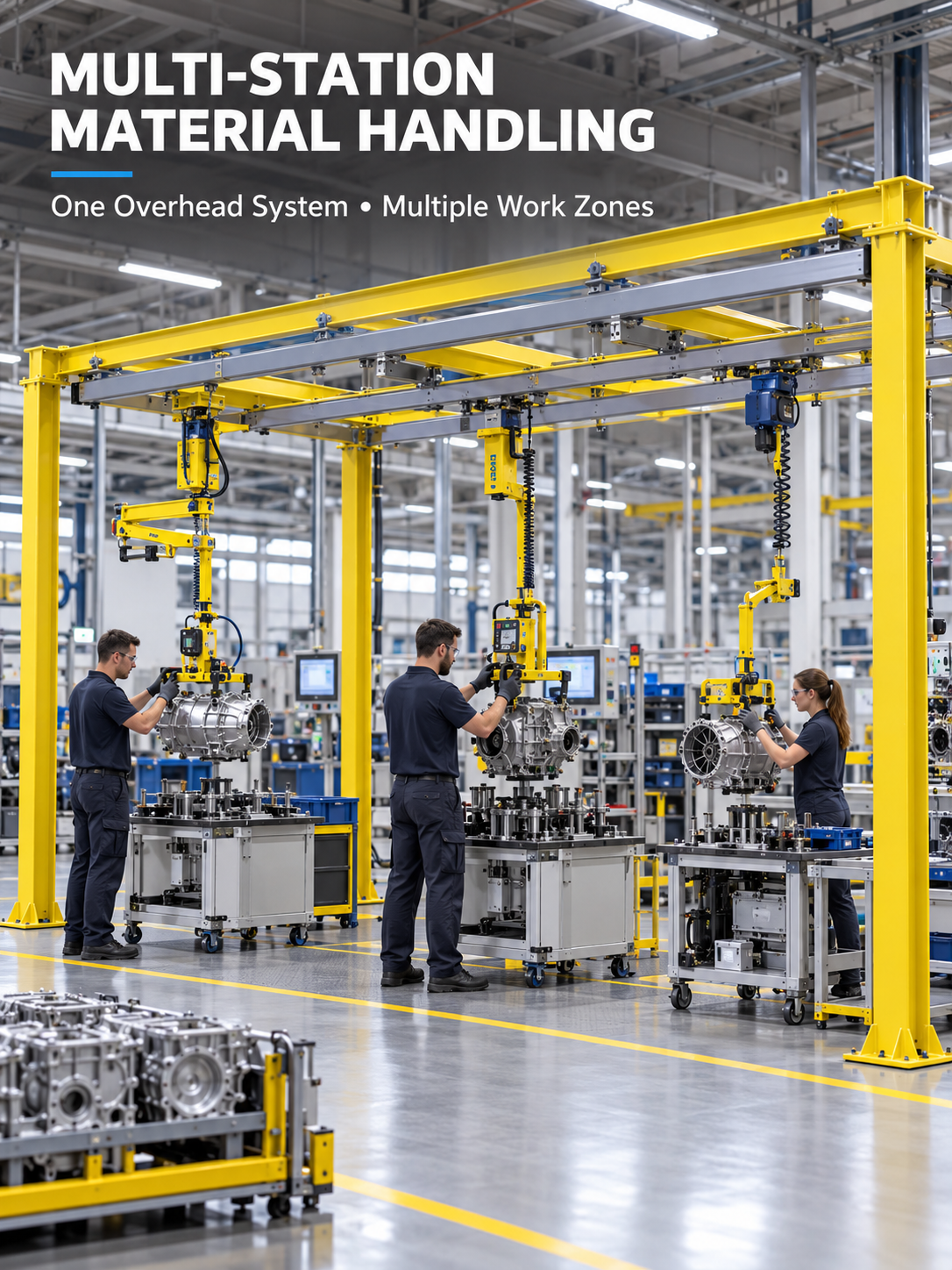

- Multi-station automotive and EV component handling
- Motor, gearbox, rotor and drivetrain assembly
- Loading and unloading across adjacent work zones
- Repetitive lifting where floor space should remain clear
Custom Engineering
Rail layout, support structure, travel coverage and end-effectors are configured for the workpiece and handling sequence. Mechanical, pneumatic or vacuum tooling can be evaluated according to the part surface, gripping points and required rotation, tilt or flipping motion.

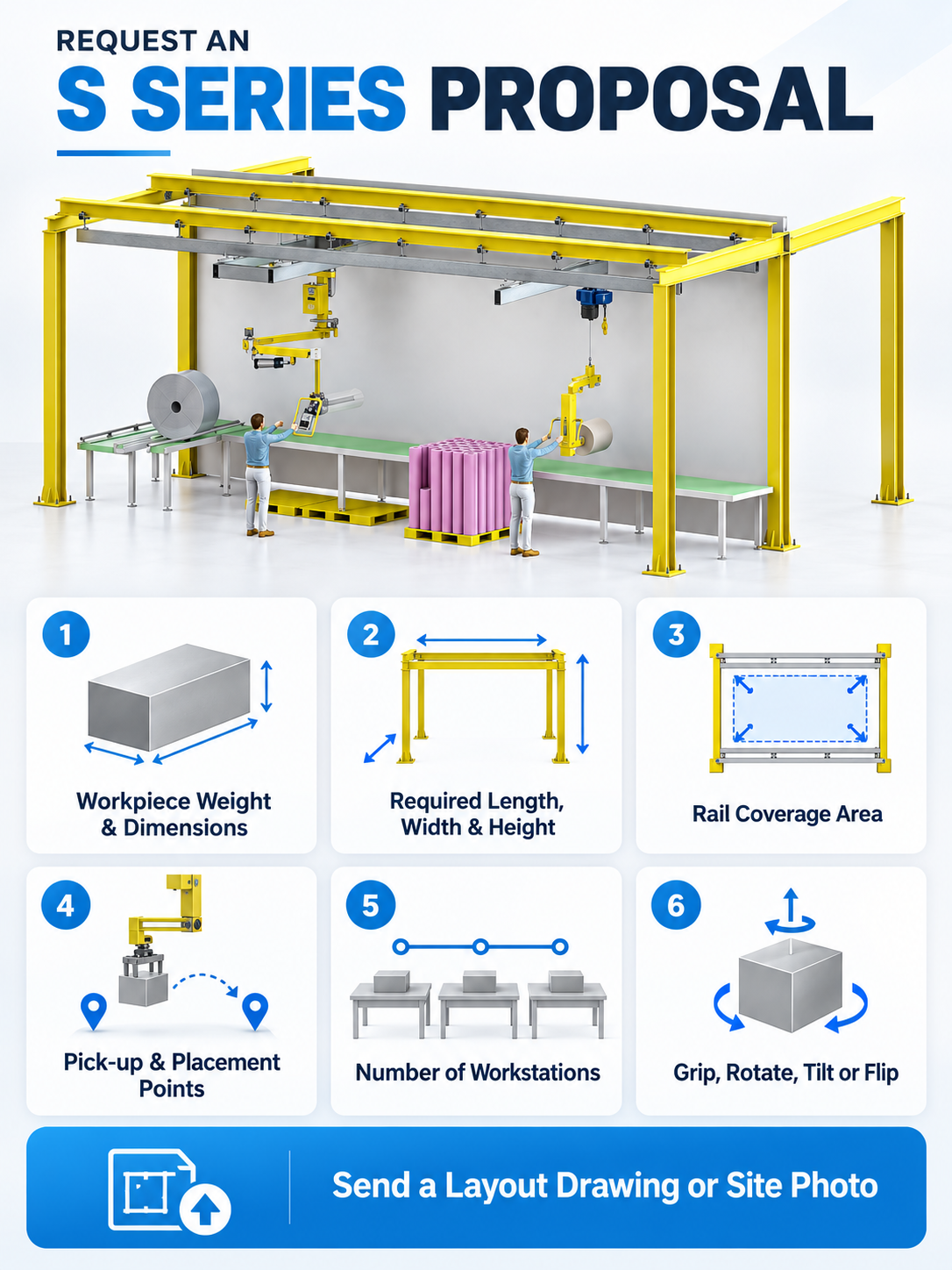

Information Needed for Selection
- Workpiece weight and dimensions
- Required structure length, width and height
- Rail coverage area and travel path
- Pick-up and placement points
- Number and spacing of workstations
- Required grip, rotation, tilt or flip motion
- Available pneumatic and electrical utilities
Frequently Asked Questions
Can the S Series cover multiple workstations?
Yes. The steel structure and rail coverage can be engineered around multiple stations, subject to the site layout, load and handling process.
Which manipulator types can be suspended from the rail system?
The S Series can be configured with selected Y Series hard-arm, T Series T-shaped and R Series folding-arm manipulators. Pneumatic or electric balancers and hoists can also be integrated.
Can the end-effector be customized?
Yes. The end-effector can be designed around the workpiece geometry, stable gripping points and required final orientation.
Compare Related Products
Compare the TS Series T-Shaped Manipulator, Pneumatic R Series Folding Arm and M Series Mobile Manipulator.
