HB Torque HB-RS Intelligent Folding Arm Manipulator | 80 kg Zero-Gravity Lifter

Name: HB Torque HB-RS Intelligent Folding Arm Manipulator | 80 kg Zero-Gravity Lifter
Brand: Hbtorque

$4,500.00 USD

Sale Engineered to Order

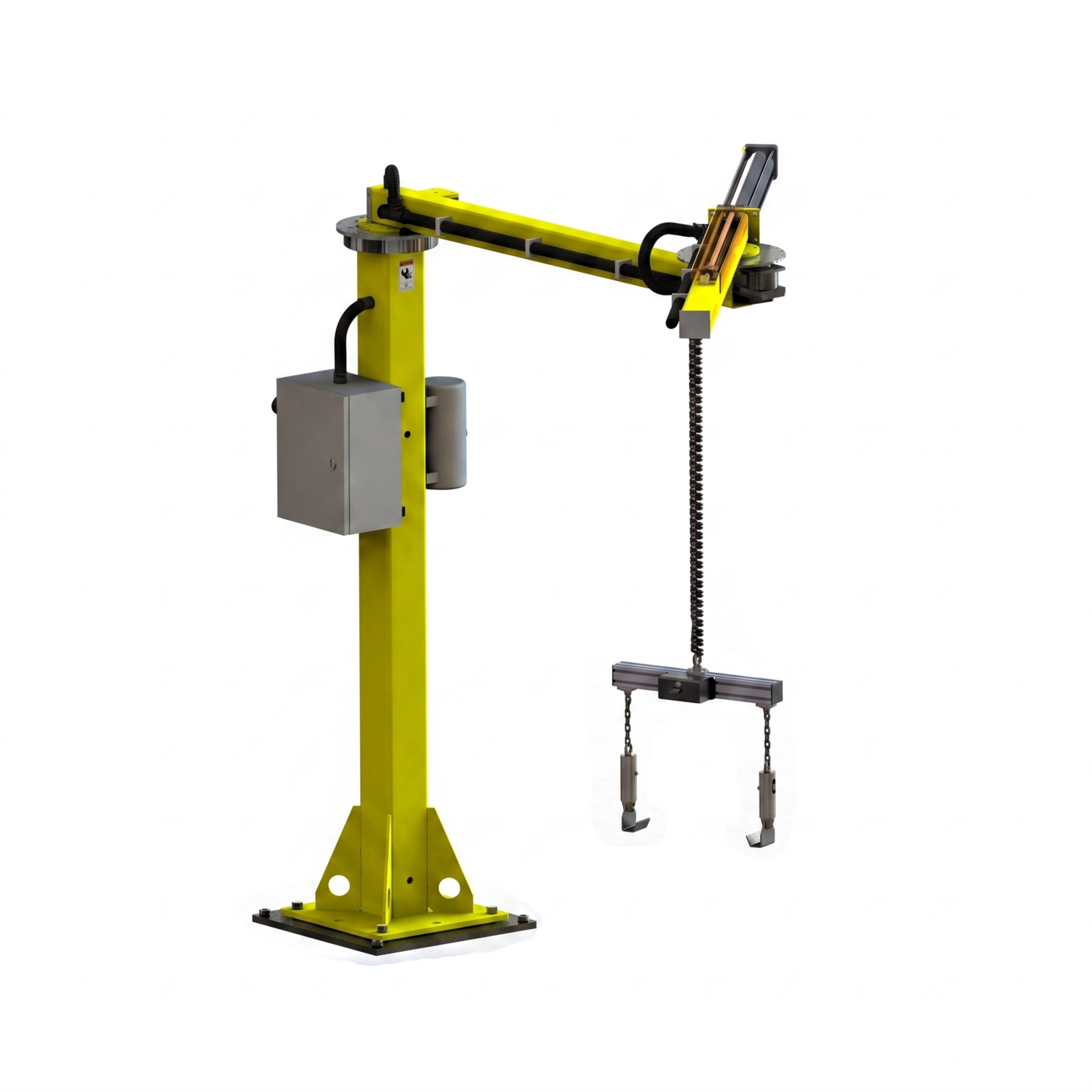

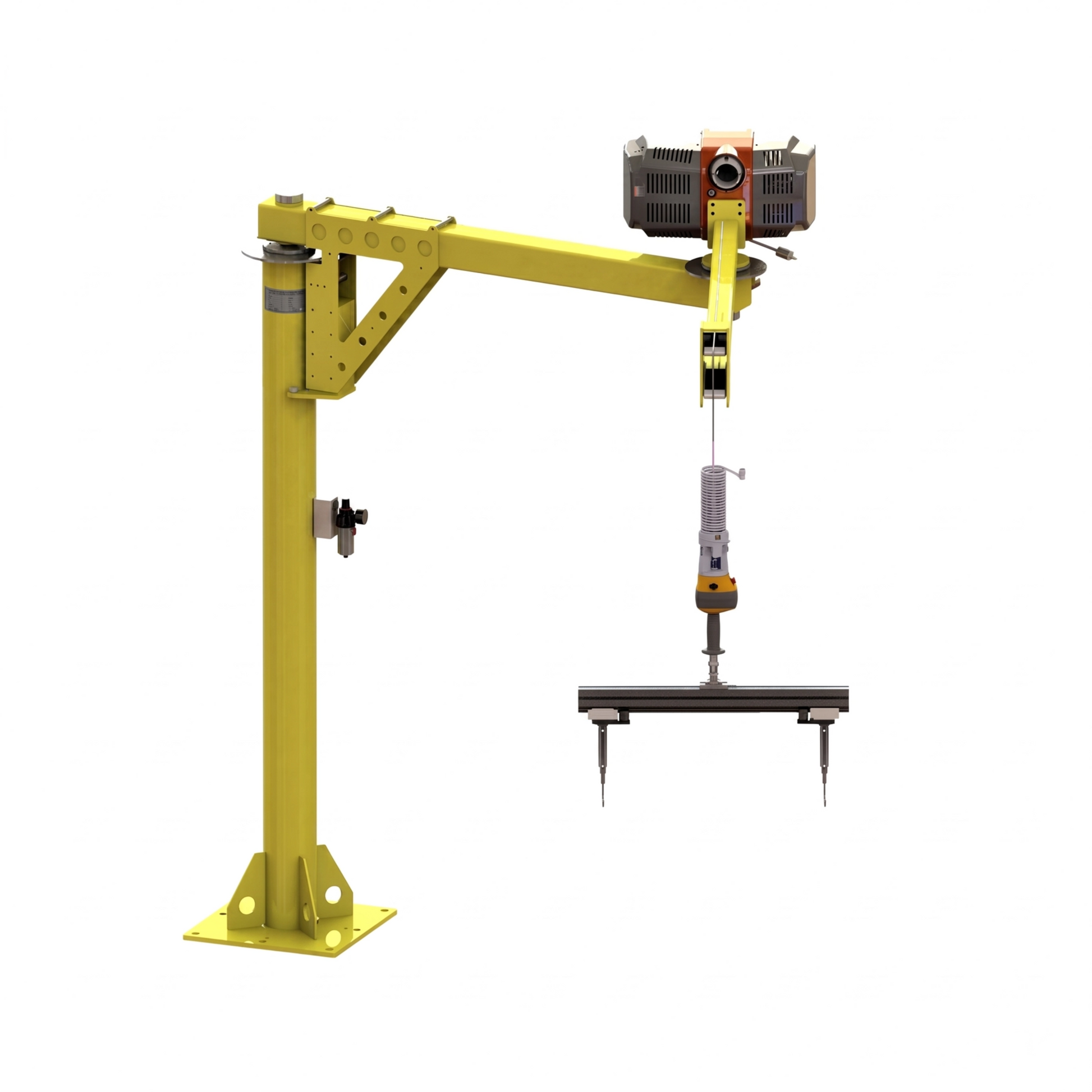

Operator-guided zero-gravity lifting system for industrial workstations. The HB Torque HB-RS Series combines a floor-mounted rotary column, folding arm, pneumatic assisted lifting unit and application-specific end-effector to help one operator lift, position and transfer components.

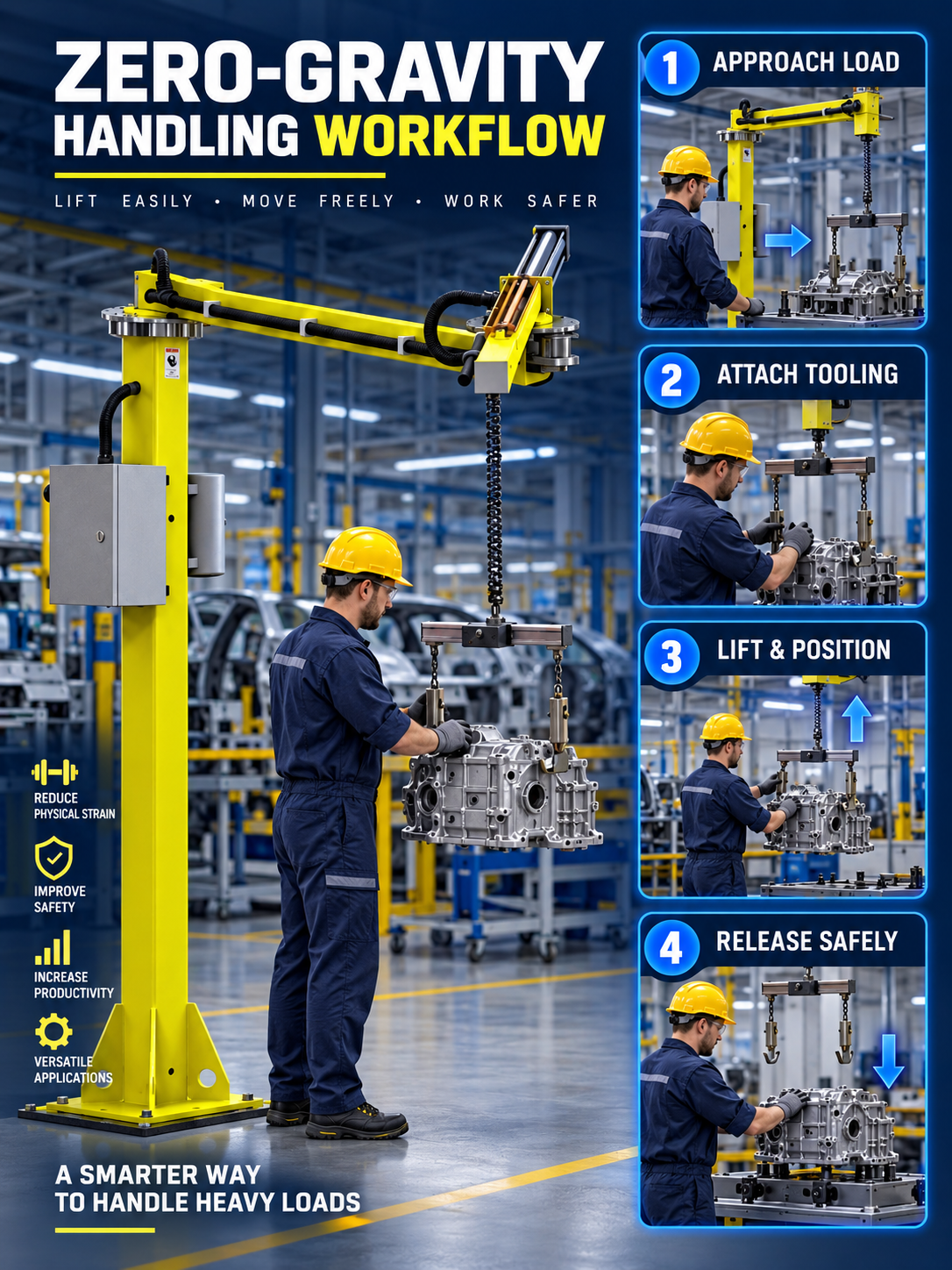

This is an engineered material-handling manipulator, not an autonomous six-axis robot. The operator controls the movement while the pneumatic balancing system supports the load.

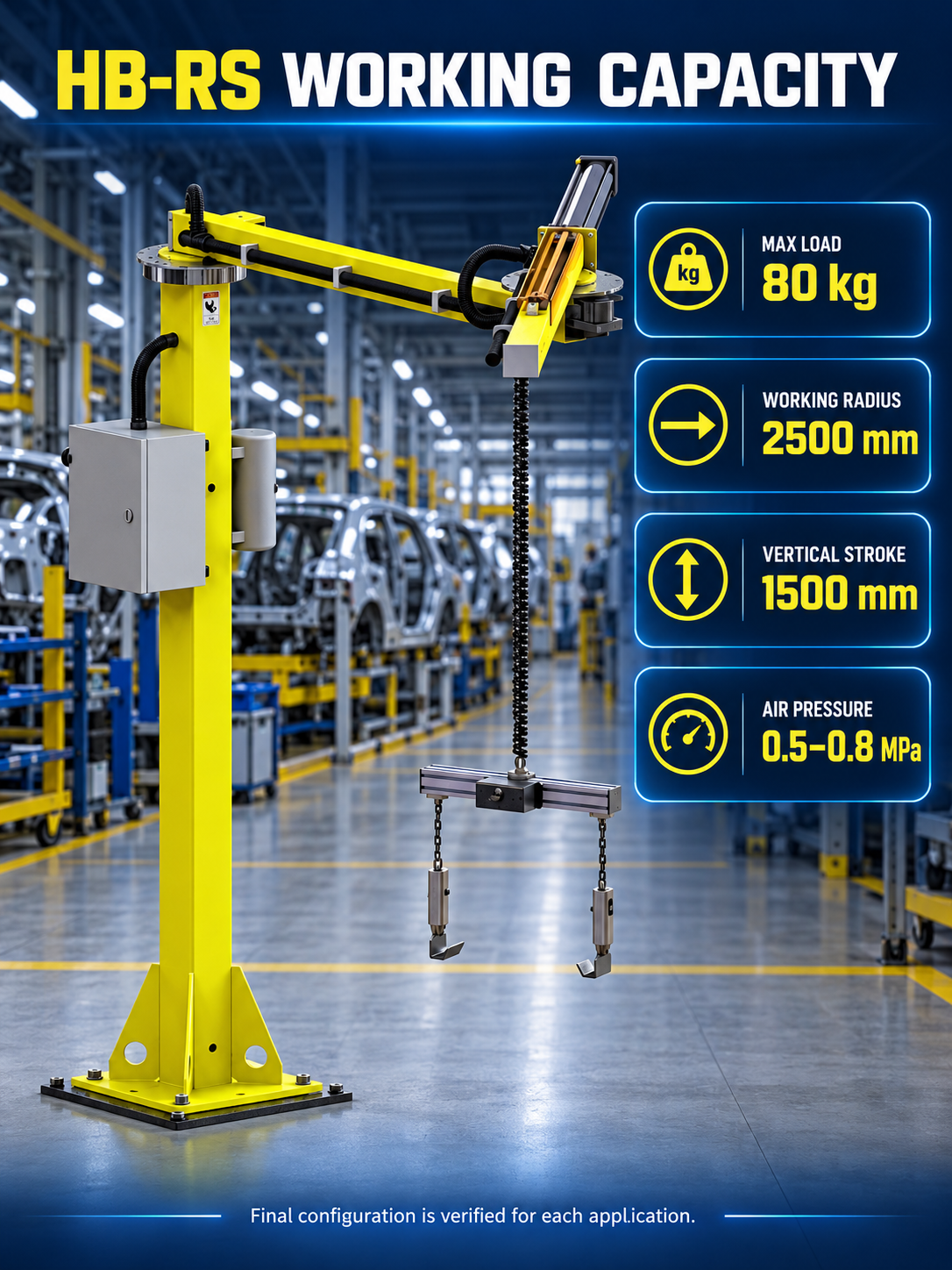

HB-RS Folding Arm Manipulator Specifications

Maximum load capacity: 80 kg (176 lb)
Working radius: 2500 mm
Vertical stroke: 1500 mm
Operating air pressure: 0.5–0.8 MPa
Mounting: floor-mounted column with bolted baseplate
Standard tooling: double-hook spreader; custom tooling available

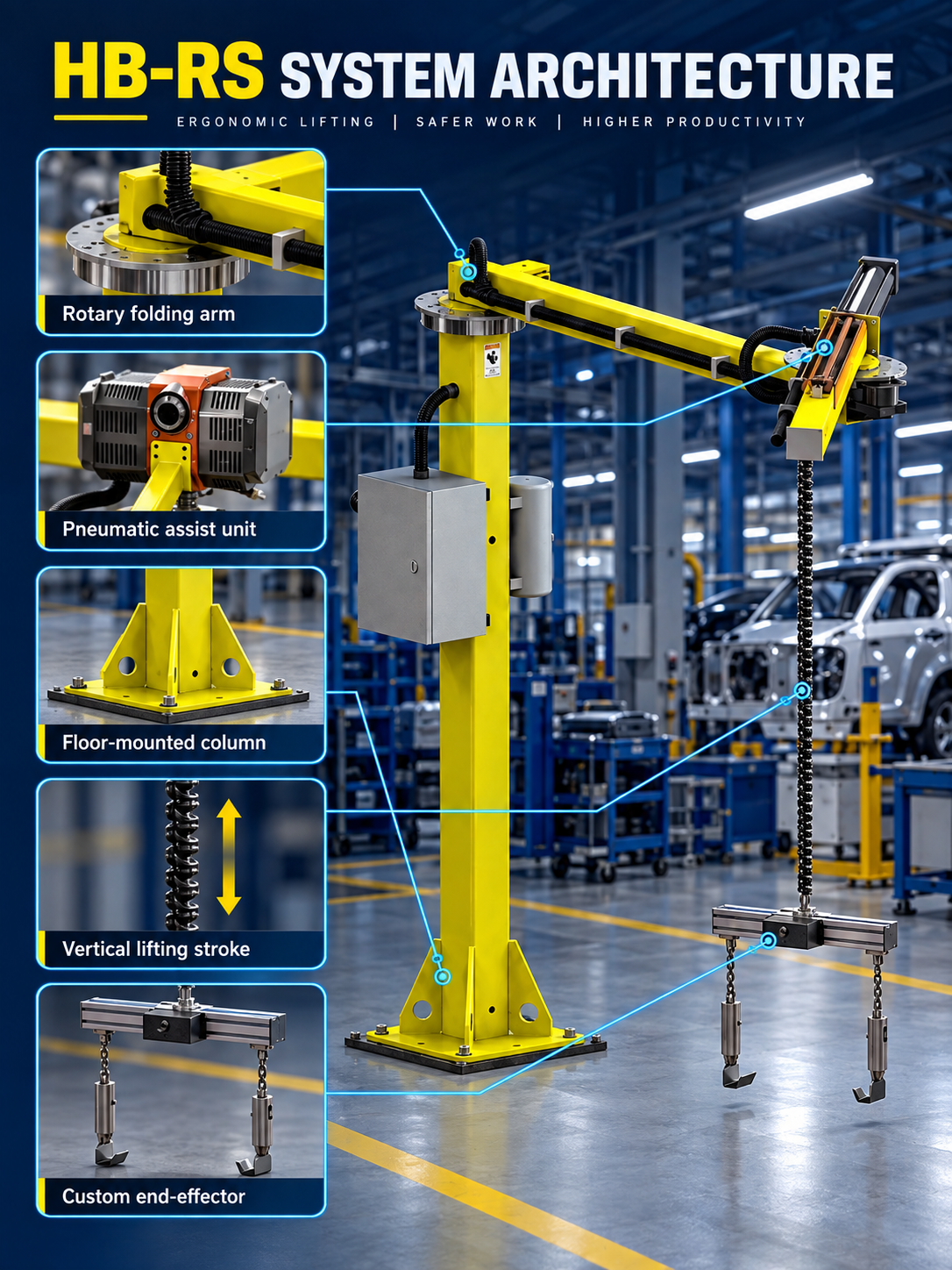

Integrated System Scope

Heavy-duty floor column and rotary folding arm
Pneumatic lifting and load-balancing unit
Vertical lifting chain or cable assembly
Operator controls and required safety functions
Standard hook tooling or engineered custom end-effector
Application review for layout, reach and handling motion

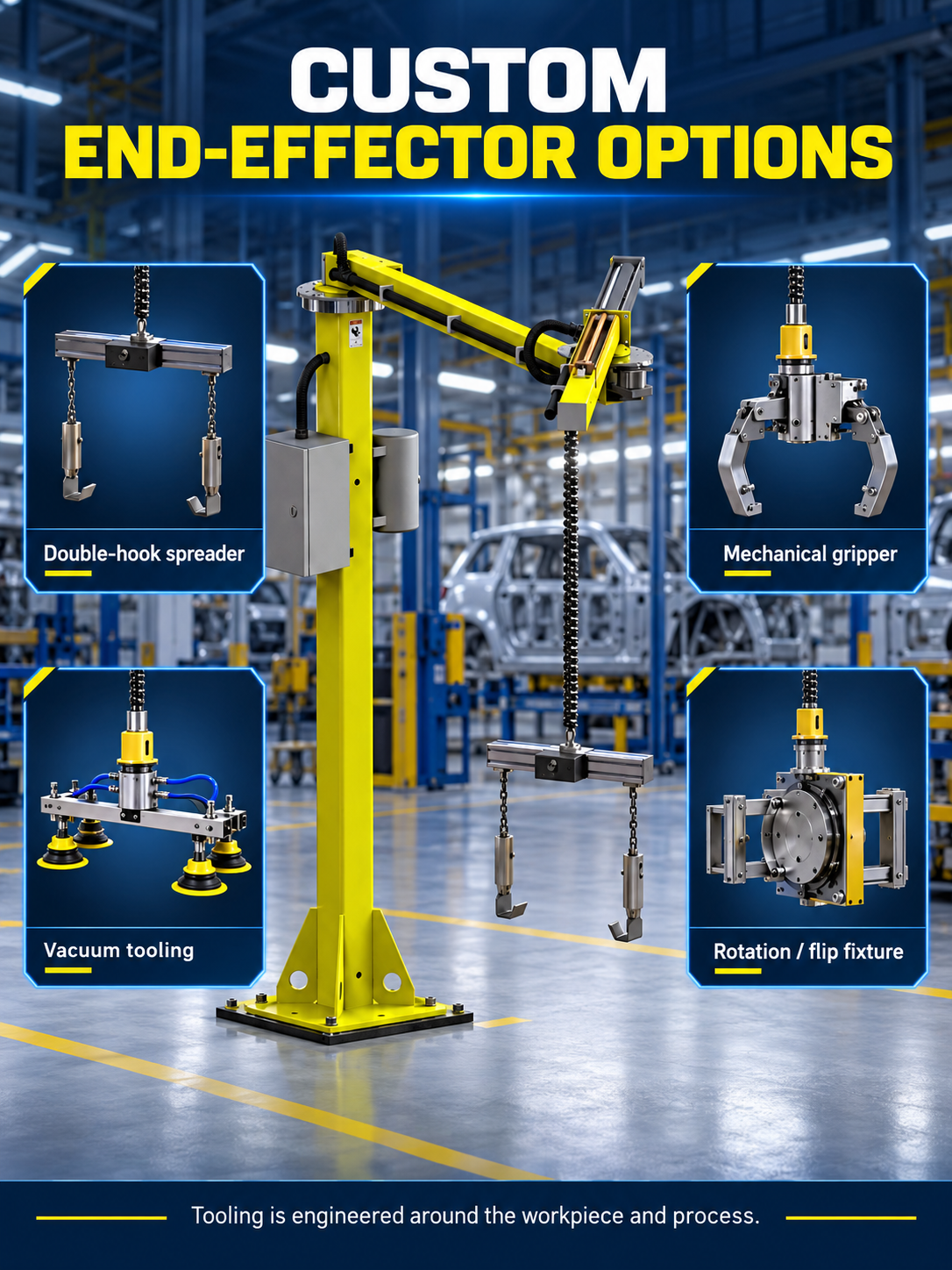

Custom End-Effector Options

Tooling can be engineered around the workpiece geometry, center of gravity, pickup points and placement process. Options can include hook spreaders, mechanical grippers, vacuum tooling, and rotation or flip fixtures where technically suitable.

Typical Applications

The HB-RS is suitable for operator-assisted lifting, positioning and transfer of industrial components in automotive, machinery, motor, gearbox and general assembly environments.
